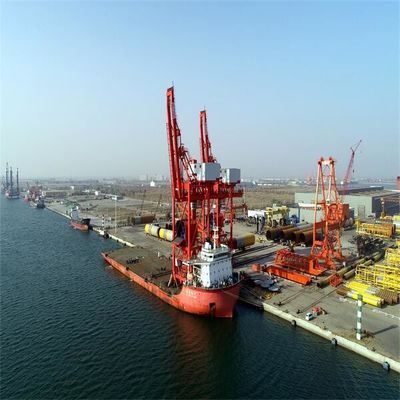

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading

Product Details:

Place of Origin: China
Brand Name: SSI
Certification: manufacture certificate
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $1,500,000-5,000,000/ Set
Packaging Details: Wooden case or bare
Delivery Time: 6 months after receipt of advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets / year
Get Best Price Contact Now

Detail Information

Material: Carbon Steel Painting: According To ISO12944
Color: Red Capacity: 800 T/h
Character: Durable Advantage: High Performance
Product: Ship Unloading System
High Light:

Eco Friendly Grab Bucket Unloader

,

Belt Type Ship Unloading Equipment

,

Bulk Material Unloading Grab Ship

Product Description

Mechanical(electric)differential bridge-type ship unloader



Mechanical (electric) differential bridge-type ship unloader is a suite of effective, reliable and high performance unloading appliances customized to the port and terminal business handling dry bulk cargoes.
The ship unloader is installed on the port,unloading dry bulk cargoes(coal, ore, mineral powder, cement, coke, ash, grain etc) from vessel`s hold via grab bucket. Discharging dry bulk cargoes to the hopper, then to the conveyor belt via hopper. By conveyor belt the dry bulk cargoes are conveying to the stockyard for storaging.
Bridge-type ship unloader including self-propelled trolley type and wire rope drawing trolley type. Wire rope drawing trolley type including main and auxiliary trolley type and differential four drums trolley type. Differential four drums trolley type including mechanical differential four drums trolley type and electric differential four drums trolley type.
Mechanical (electric) differential bridge-type ship unloader is most advanced and widely used today. Its hoisting system, opening system and drawing system, are controlled by four drums. It was particularly designed for specializing in professional bulk handling solutions that provide very highest levels of performance.

model Self-propelled trolley Main and auxiliary trolley Mechanical differential Electric differential
weight(%) 100% 80% 60~65% 60%
stability 1.4 1.5 1.7~1.8 1.7~1.8
Wire rope lengtg 1 6 2.5 2.5
Power consumption 1 2.5 1.1 1.2
Operating cost(%) 100% 95% 90% 90%
Fault and maintenance Breakdown rate high and hard to maintain Breakdown rate low and easy to maintain but wire rope system is complicated Wire rope system is simple, easy to change gear reducer is specific design,hard to maintain and change Wire rope system is simple,gear reducer is standard,easy to maintain,electrical system is complicated
Cost of fundamental and facilities(%) 100% 95% 85% 85%



model Mechanical differential Electric differential
weight(t) 1100 1050

Rail distance(m)

Wheel distance(m)

18~28

18

18~28

18

No of wheel

Wheel pressure T

Driver KW

40

50

7.5*10

40

50

7.5*10

Luffing mechanism KW 90~110 90~110
Four drums mechanism KW

Start 2X500KW

Runing 315KW

4*400



Specification of ship unloader
vessel capacity unload time lift capacity
of grab
weight of
single grab
cycle
times
one cycle density of
bulk material
rail
distance
rail wheel
pressure
extending reach distance
of grab
rear reach
distance of grab
hoisting
speed
lowering
speed
trolley
speed
traveling
speed
DWT t/h hours T T   s t/m3 m   kN m m m/min m/min m/min m/min
1000 340 2.94 10 5.5 61.82 58.23529412 0.85 16 QU80 350 23 21 90 100 120 25
5000 500-2000 2.5~10 12.5~48 7.3~28 67.42~71.43 52.56-53.4 0.8~0.9 10.5~20 QU80~100 245~600 24~28 8~16 100~160 120~190 150~240 20
8000 1000 8.00 25 14.8 67.57 53.28   20 QU100 350 28 17 135 150 180 20
20000 800-1000 20.00 22~30 13.3~14.8 55.56~67.57 53.28~64.8 0.85 16~22 QU80~120 330~530 24~38 21 12~135 135~150 180 20~25
30000 1250 24.00 32 19.6 63.78 56.448 0.95 16 QU100 505 33 14 135 150 220 25
35000 800~1600 21.88~43.75 22~40.5 12.8~25 62.52~76.19 54~57.6 0.85~0.95 14~24 QU80~100 330~530 27~31 11~19 120~135 135~180 180~220 20~25
50000 1250~1650 33.3~40 32~40 19.5~25 60~67.35 56.16~60 0.85~0.95 22~26 QU100~120 500~520 30~33 17~19 150~200 180~240 180~220 20~25
70000 1250~1750 40~56 34~42 20.5~25.75 52.08~68 53~69.12 0.85~0.9 22~30 QU100~120 500~600 32~40 16.5~27 160~220 190~240 180~240 20~25
100000 1000~1800 55.56~100 30~46 18~27.6 55.56~75.12 48~64.8 0.8-1 22~26 QU120 450~600 30~38 17~20 135~180 150~220 180~240 25
150000 1800~2100 71.42~83.33 45~52 27.2~31.5 63.16~66.67 54~57 0.90~2.4 24~28 QU120 600~736 39~41.5 19~24 160~200 190~240 200~240 20~25



Main structure of bridge-type grab ship unloader

Mechanism of bridge-type grab ship unloader





1.Traveling mechanism

The driving method of traveling mechanism is multi drive. Traveling mechanism is composed of driving device, traveling support device and safety protection device. The traveling support device adopts the wheel group with balance beam, the wheel adopts the rolling bearing wheel with double wheel edges, and the number of driving wheels shall not be less than 50% of the total number of wheels.
Most of the driving unit are three in one reducers, which can also be combined by reducers, brakes and motors through couplings

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 0

2. Main structure of bridge-type ship unloader

The connection of the main steel structure of the ship unloader adopts rigid connection, and the rigidity of the whole machine is strong enough.
Rolling T-section steel is adopted for the front and rear girder of the ship unloader and the trolley rail beam without fillet weld, to avoid weld fatigue cracking that may occur when the trolley wheels are rolled back and forth.

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 1

3. Hopper system

The hopper unloading system of the ship unloader is composed of coal hopper, feeder, fork hopper, coal spreading baffle, windshield, two way chute and buffer bracket.

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 2

4. Grab bucket hoisting mechanism(mechanical differential four drums)

The traveling of the mechanical differential grab ship unloader trolley depends on a driving motor to connect the two differential reducers through the a coupling. Through the differential transformation of the gearbox, the grab lifting is transformed into the transverse movement of the trolley.

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 3

5.Grab bucket(wire rope reeving system)

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 4

6. Luffing mechanism

The luffing mechanism of bridge-type grab ship unloader is composed of motor, brake, reducer, drum and safety brake.

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 5

7.Wire rope reeving system of luffing mechanism

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 6

8. Cantilever safety hook device

When the cantilever of the ship unloader is luffing to 80 °, the safety hook device is used to hang the cantilever and loosen the steel wire rope at the same time. The safety hook is usually driven by hydraulic cylinder or electro-hydraulic actuator.

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 7

9.Wire rope reeving system of wire rope support trolley

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 8



Overview of production process



Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 9



Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 10



About us

Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.



Photos of our factory

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 11

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 12

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 13

Belt Type Ship Unloading Equipment For Bulk Material Continuous Unloading 14
