Bulk Cargo Handling Equipment Bridge Type Scraper Reclaimers
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Capacity: | 2200 T/h | Product: | Stacker And Reclaimer |
|---|---|---|---|
| Painting: | HEMPEL | Color: | Yellow |
| Benefit: | Low Maintenance | Character: | Reliable |
| Advantage: | High Performance | ||
| High Light: | Bulk Cargo Handling Scraper Reclaimers,Combined Stacker And Reclaimer,Specially Designed Bridge Type Scraper Reclaimer |
||
Product Description
Scraper Type Reclaimers Bridge-type Reclaimer Stockyard Stacking and Reclaiming Equipment
Brief introduction of Stacker and Reclaimer
Working principle
The reclaimer is used with the stacker in the stockyard. The materials stacked by the stacker on one side of the silo move back and forth on the rail on the other side of the silo by the reclaimer. The materials are discharged into the chute through the scraper reclaiming system, and sent to the discharge belt conveyor through the chute for transportation. After each layer of material is taken by the reclaiming arm, the corresponding height shall be lowered according to the preset command, and the material stack shall be taken out layer by layer at the corresponding reclaiming operation speed until all the materials in the silo are taken out. This reclaiming process makes the materials stacked by the stacker to blend again
feature
The circular bridge scraper and reclaimer has the characteristics of compact design, high capacity performance, environmental friendly and totally automatic operation.
composition

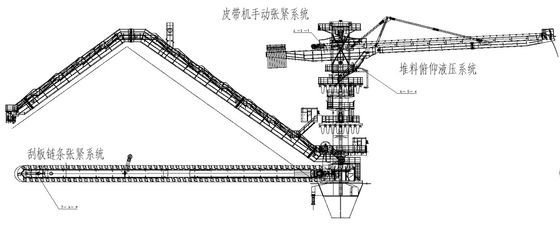

The side scraper reclaimer is mainly composed of traveling mechanism, scrap conveying system, luffing system, and electrical control system and other components
applications
The longitudinal stockyard side scraper reclaimer is mainly used for scraping sandstone, ore, sandstone, coke and other bulk materials in the stockyard of large enterprises such as water conservancy companies, steel companies, coal coking companies and cement companies.
Specification of circular bridge type scraper stacker and reclaimer
| description | parameter | unit |
| material | limestone,raw coal | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 500~2000 | t/h |
| reclaiming capacity | 200~1200 | t/h |
| rail span | Φ60~Φ120 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
