500 Tph Bulk Cargo Handling Equipment Combined Stacker Reclaimer
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Capacity: | 2000 T/h | Product: | Stacker And Reclaimer |
|---|---|---|---|
| Painting: | HEMPEL | Color: | Yellow |
| Benefit: | Low Maintenance | Character: | Reliable |
| Advantage: | High Performance | DFT: | 180um |
| High Light: | Bulk Cargo Handling Combined Stacker Reclaimer,Combined Bulk Cargo Stacking Equipment,500tph Dry Bulk Cargo Handling Equipment |
||
Product Description
500 to 2000 tph Bulk cargo handling equipment stacker and reclaimer
The cantilever of the stacker is equipped with a belt conveyor, and the materials feeding from the belt conveyor on the trestle are stacked through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work through three sets of driving linkage processes: traveling, luffing and scrape.
The circular bridge scraper and reclaimer has the characteristics of compact design, high capacity performance, environmental friendly and totally automatic operation.

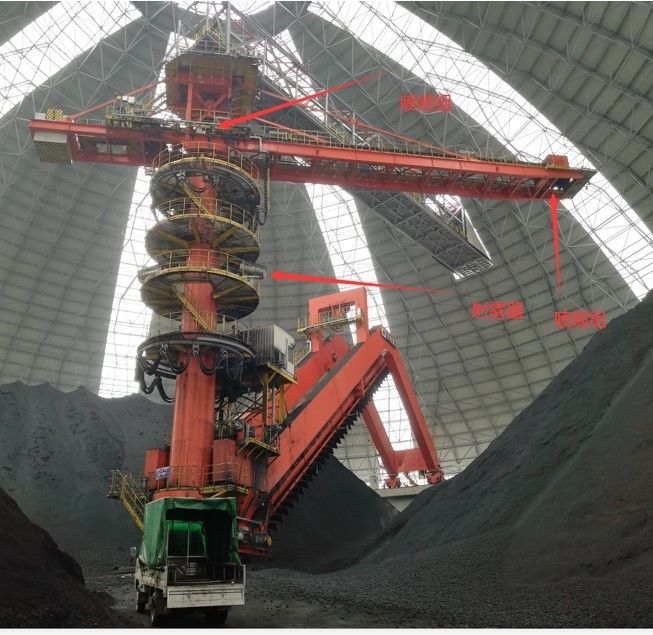

The circular bridge scraper stacker and reclaimer is mainly composed of stacker, reclaimer, king column, coal unloading hopper, electrical room, etc
Circular bridge scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port and other industries, and is mostly used to stack limestone or coal and other bulk materials. It is an equipment that continuously stacking and full section reclaiming, It is suitable for indoor or open stockyard where bulk materials need to be blended, stored and transferred. It can complete the blending and stacking and blending and reclaiming of materials at the same time or separately
Specification of circular bridge type scraper stacker and reclaimer
| description | parameter | unit |
| material | limestone,raw coal | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 500~2000 | t/h |
| reclaiming capacity | 200~1200 | t/h |
| rail span | Φ60~Φ120 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
Photos of our factory
