Self Propelled Bulk Cargo Handling Equipment Eco Hopper On Rail
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | 50 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 200000 |
| Packaging Details: | nude |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 85 set/yesr |
|
Detail Information |
|||
| Product: | Eco Hopper | Component: | International Brand |
|---|---|---|---|
| Opening: | 7m*7m | Painting: | 240 Um |
| Steel Structure: | SA2.5 | Model: | Bag Filter Type |
| Character: | Tire Mounted | Lining: | Hardox 400 |
| High Light: | Whole Transporting on ro-ro ship,Bulk Cargo Handling Eco Hopper,Rail Self Propelled Eco Hopper |
||
Product Description
Self-propelled tire mounted Eco Hopper self-propelled rail Mounted Eco Hopper
Due to the import of dry bulk cargo materials increasingly being held to account for the ecological and health implications, the demand for Eco hoppers is growing worldwide. The port needs to be followed strict guidelines to reduce dust levels. The SSI ECO hopper is designed as a dust-controlled, grab or belt conveyor unloading hopper, is an economical and ecologically sensitive solution. It`s customized designed to suit the property of any bulk materials. And fulfill all needs for the efficient import of dry bulk materials.
The SSI ECO hoppers are designed based on the client`s specification requirement. For applications requiring a higher level of maneuverability, the hopper is designed to be self-propelled. The Eco can be relocated anywhere, by using a travel system driven by HPU or an electric system.
Technical specification
| output | 400t/h |
| material | cement /coal |
| density | 1.3t/m³ |
| volume | 50m³ |
| application | discharge to truck |
| pressure on each support landing | 30t |
| full load of hopper | 80t |
| size of discharge opening | 400mm*400mm |
| power of fan motor | 22kw*3 |
| noise | less than 80 DB |
| travel speed | 10m/min |
| power consumption | 105kw |
| dead weight | 75t |
General drawing

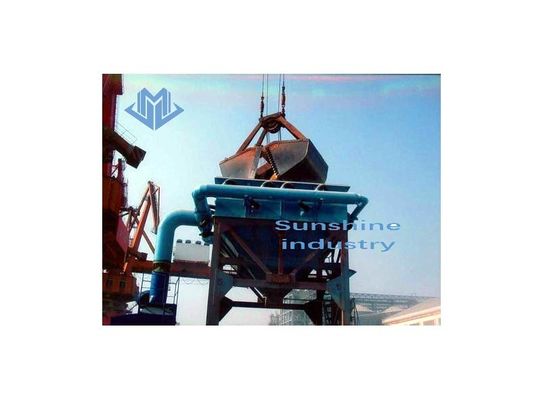

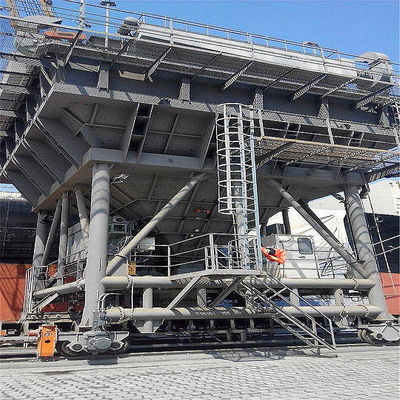

Applications
Case1
Case2
Case3
Photos of our factory
