Pedestal telescopic boom marine crane Pedestal telescopic boom offshore crane telescopic boom deck crane
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABS/BV/CCS/GL/RINA/RMRS |
| Model Number: | 7t10m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 50000 |
| Packaging Details: | nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Product: | Telescopic Boom Marine Crane | Painting: | International Brand |
|---|---|---|---|
| Price: | Cost Effective | Model: | 7t10m |
| Type: | Hydraulic Powered | Luffing: | Hydraulic Cylinder |
| Hoisting: | Hydraulic Winch | ||
| High Light: | 7t Marine Cranes,10m Marine Cranes,ABS pedestal crane |
||
Product Description

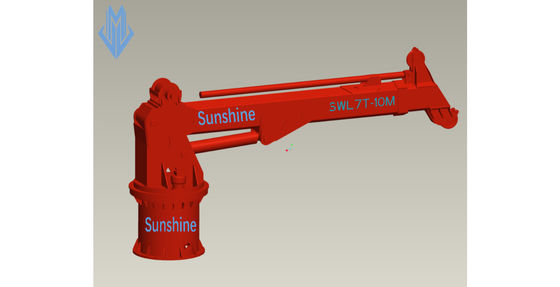

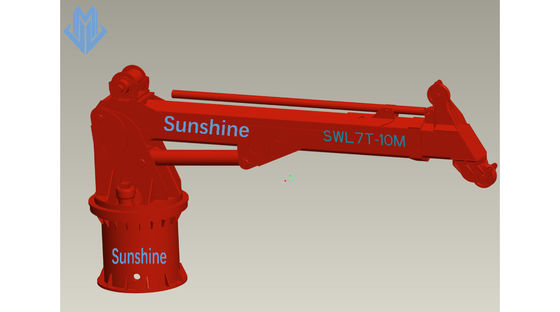

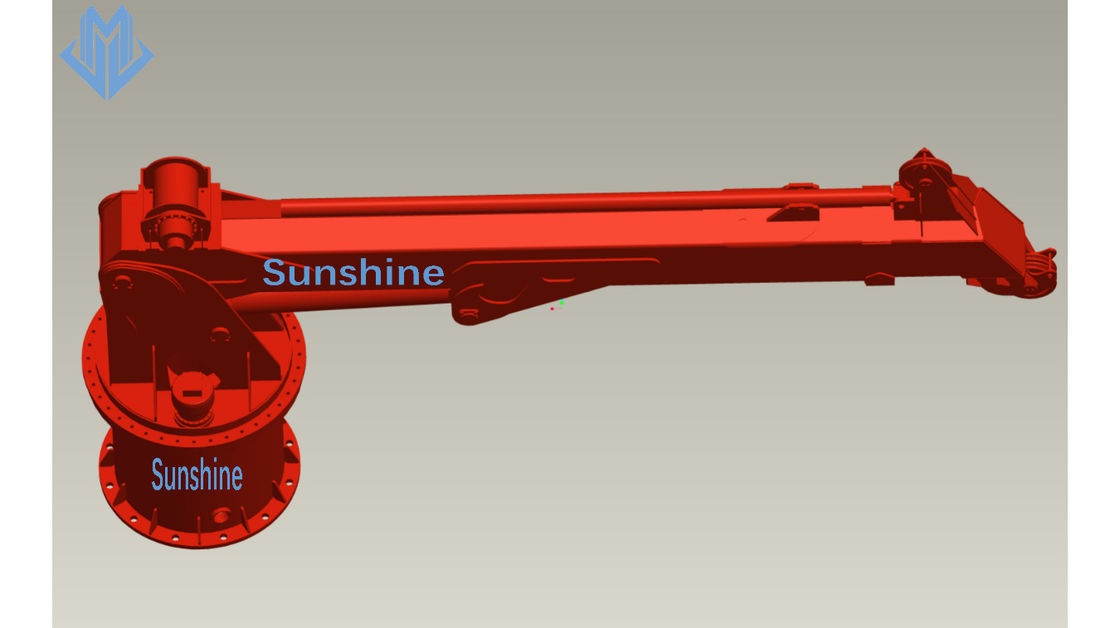

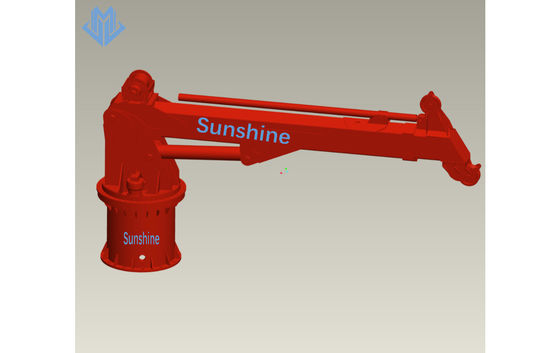

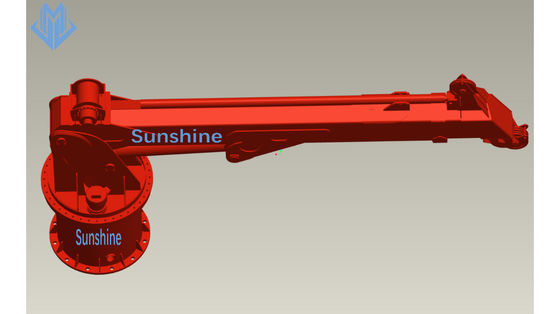

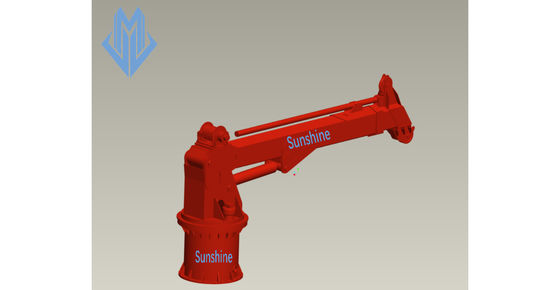

Pedestal telescopic boom marine crane Pedestal telescopic boom offshore crane telescopic boom deck crane
BRIEF INTROUUTION
The telescopic box boom pedestal cranes are a reliable general cargo handling, service and offshore crane. Onboard various ship types and
offshore units. It`s designed as an electro-hydraulic driven stiff boom crane, with integrated electro-hydraulic power package or independent
electro-hydraulic power package, delivered as a complete unit ready for installation to foundation. The crane is equipped with hydraulic powered
winch, hydraulic powered luffing, hydraulic powered extension and hydraulic powered slewing system.The crane is installed with a rolled steel
pedestal for bolting or welding to deck foundation with a standard height of the crane. The different pedestal height is available base on
customer`s requirement. The standard telescopic boom crane is supplied with an operator platform. Operator cabin is available base on
customer`s requirement.
Technical specification
| 1 | SWL | 7t@10m |
| 2 | Max working radius | 10m |
| 3 | Min working radius | 2m |
| 4 | Hosting speed | 0~15m/min |
| 5 | Slewing speed | 0.8r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 45s |
| 8 | Hook travel | 25m |
| 9 | DFT of painting | 320um |
| 10 | Extension time | 20s |
| 11 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 12 | Electric motor | |
| Power | 37Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 13 | Flow | 100L/min |
| 14 | Design temperature | -10°~40° |
| 15 | Dead weight | ~8000 kg |

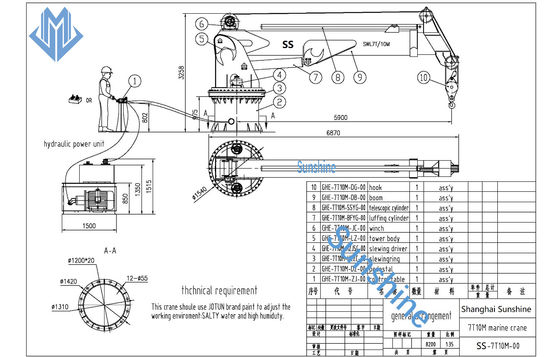

General drawing
Photos of our factory
