1500 Kg Electric Hydraulic Tail Lift And Liftgate For Mounting On Truck
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | Mill certificate |
| Model Number: | SSI-1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 1200 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Supply Ability: | 20000 set/ yesr |
|
Detail Information |
|||
| Material: | Carbon Steel Or Aluminium | Color: | Black |
|---|---|---|---|
| Character: | Electric Hydraulic | Model: | 1500 |
| Paint: | According To ISO12944 | Type: | Cantilever |
| Product: | Tail Lift | Power: | 12v Or 24v |
| High Light: | Specially Designed Tail Lift,1500 Kg Electric Hydraulic Tail Lift,Electro Hydraulic Powered Tail Lift |
||
Product Description
1500 kg electric hydraulic tail lift and liftgate for mounting on truck
The Tail lift or lift gate is designed as compact in size, it`s easy to fit and simple to operate. Tail lifts is a mechanical devices that permanently
mounted on the rear of a work truck. It can be also mounted on the rear of a van or lorry. It`s a fantastic mechanical device that is designed to facilitate the materials handling of goods from ground level to the level of the truck bed. It makes the loading and unloading work from truck bed to ground or from ground to truck bed so easy.
SPECIFICATION
| Model | SSI-1500 |
| Lifting capacity | 1500 kg |
| Lifting gear hydraulic | 2 lifting cylinder/2 tilting cylinder |
| Main beam | 180mm*180mm |
| Lifting arm pitch | 1310mm |
| Load center, longitudinal | 600mm |
| Load center, across centre | central, 50% rated load on one side |
| Platform overlap with floor | -57mm |
| Inclination angle of the platform | +90°~-10° |
| Power source | DC 12V or 24V |
Load diagram

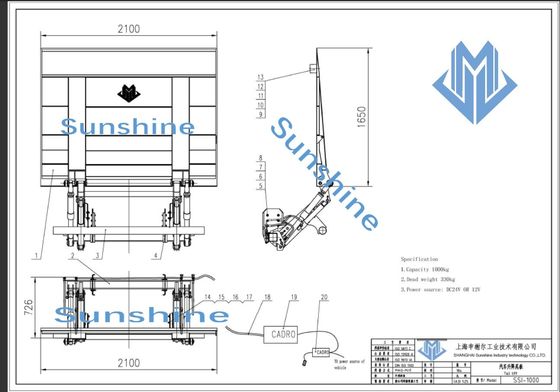

General drawing
Demonstration pictures

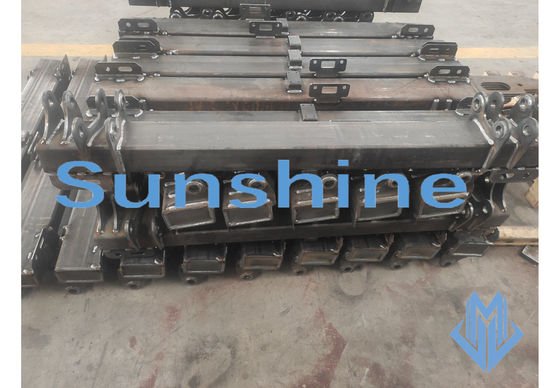

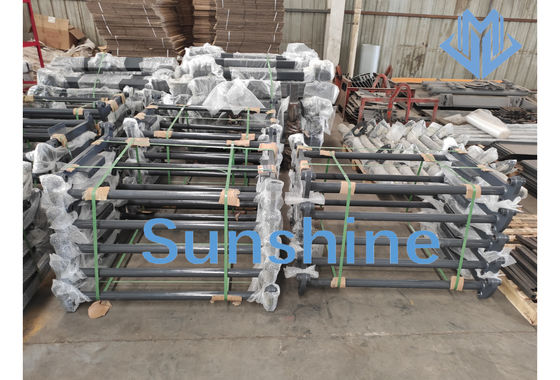

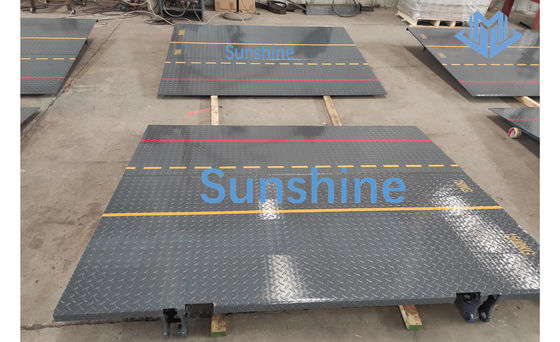

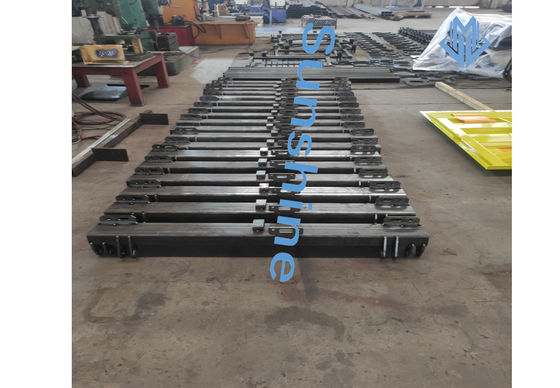

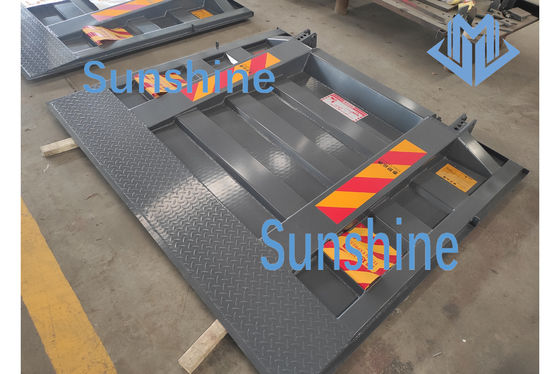

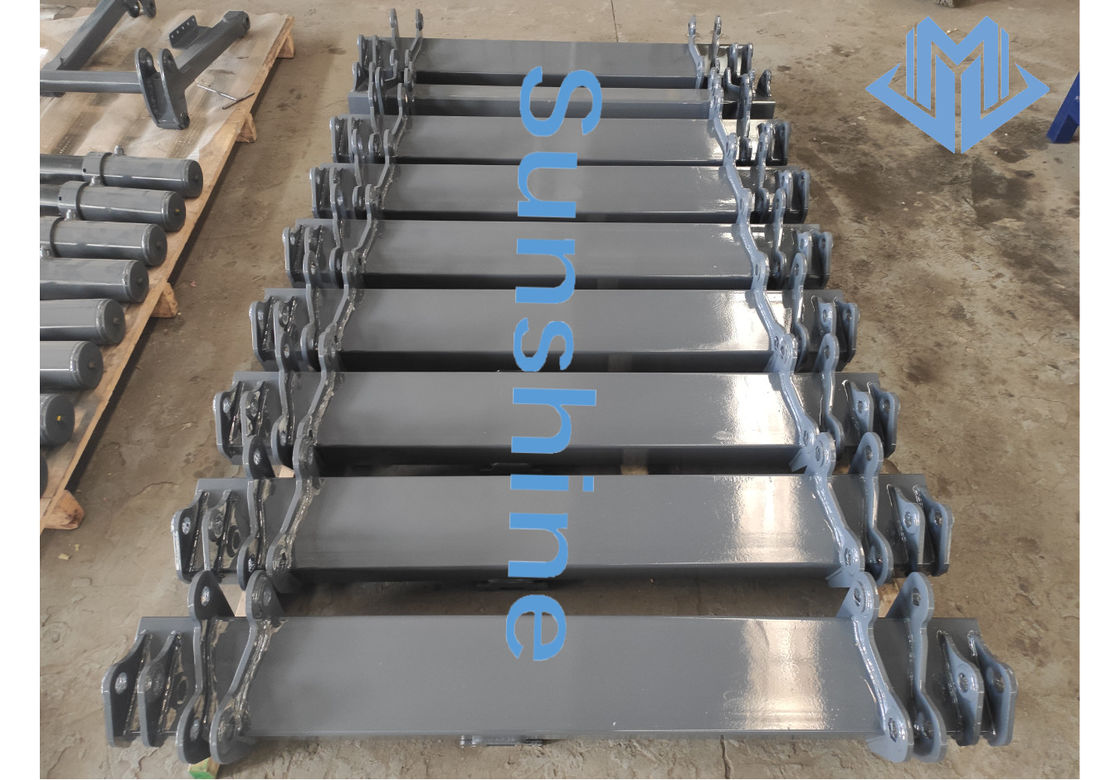

Photos of our factory
