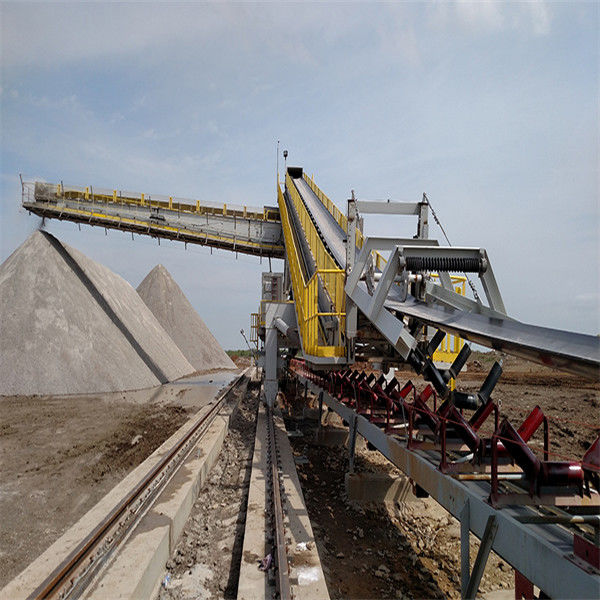

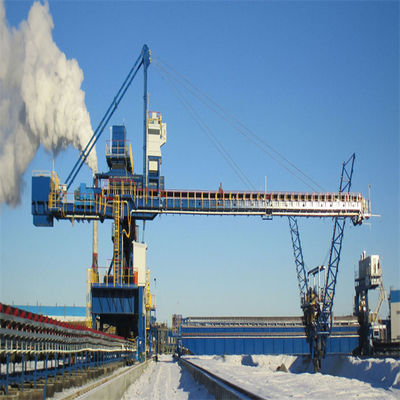

Side Cantilever Stockyard Stacker For Bulk Material Handling

Side Cantilever Stockyard Stacker For Bulk Material Handling

Product Details:

Place of Origin: china
Brand Name: SSI-ZHIGO
Certification: manufacture certificate
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $500,000-1,000,000/ Set
Packaging Details: Wooden case or bare
Delivery Time: 6 months after receipt of advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets / year
Get Best Price Contact Now

Detail Information

Product: Side Cantilever Stacker Painting: Jotun
Color: Grey Capacity: 2000 T/h
Steel Structure: High Quality Steel Electric Component: Top Brand
Benefit: Low Cost NDT: MT UT
High Light:

Side Cantilever Stockyard Stacker


Bulk Material Handling Stockyard Stacker

Product Description

Cost-effective side cantilever stacker for bulk material handling



The side cantilever stacker is mainly used for stacking limestone, sandstone, raw coal, and other bulk materials. It is mainly used for storing and blending materials in the stockyard. It is mainly applied for metallurgy, mining, building materials, chemical industry, cement, and other industries.


The side cantilever stacker has the advantages of simple structure, reliable performance, easy operation, convenient maintenance, and safe operation.

The side cantilever stacker can stack operation to the different material pile, and to stack a variety of materials, meet different stacking processes requirements. The side cantilever stacker was designed as compact, electric-hydraulic driven with automatic operating function without manpower.


The side cantilever stacker is mainly composed of a traveling mechanism, luffing mechanism, cantilever frame, cantilever belt conveyor, feeding system, control room, electrical control system, and other components.

Working principle

The bulk materials are unloaded to the cantilever belt conveyor via the feeding belt conveyor and feeding system of the stacker. And then transferred to the stockyard by the cantilever belt conveyor.

The side cantilever stacker moves back and forth along the rail in the stackyard. The bulk materials are stacked one layer at a time. During the formation of the pile, with the detection of the material level sensor, the cantilever belt conveyor is driven by the luffing mechanism and material rises with the change of the pile height until it reaches the set pile height. The materials are naturally stacked to form a Longitudinal pile with a herringbone cross-section.

Table of equipment selection parameters

description parameter unit
material limestone,sandstone,raw coke
density 0.8~2.2 t/m3
granularity <70 mm
moisture <2 %
stacking capacity 100~5000 t/h
rail span 4~8 m
length of cantilever 15~40 m
width of belt 500~1800 mm


The customer shall provide the following information when placing order:

  • the character of bulk material;
  • Stockyard information;
  • Process flow chart;
  • Power supply;
  • Communication and control requirements.
