Opencast Mines Crawler transfer conveyor For Waste Bulk Material Handling
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Transfer Conveyors | Painting: | Jotun |
|---|---|---|---|
| Color: | Yellow | Capacity: | 5000 T/h |
| DFT: | 180um | Main Component: | European Brand |
| Steel Work: | SA2.5 | Benefit: | Reliable |
| High Light: | Waste Bulk Material Unloading Conveyor,Crawler Transfer Conveyor,Opencast Mines Transfer Conveyor |
||
Product Description
Transfer Conveyors on Crawler Crawler Conveyor Crawler-Mounted Transfer Conveyors
The SSI crawler-mounted transfer conveyors, matched with the unloading truck, mainly realizes the transfer function of materials in the waste dump, and can also realize separate and simple direct discharge. The crawler walking mechanism has low requirements for the site, and the grounding specific pressure is no more than 0.1MPa, so as to adapt to the harsh working environment in various mines. The capacity range of unloading crawler-mounted transfer conveyors designed by our company from 500-5000t/h, which can meet different process requirements and working environment of users.
Working principle
During operation, the unloading conveyor belt will conveying the materials to the receiving belt conveyor of the dumper, then the receiving belt conveyor will conveying them to the discharging belt conveyor, and finally the bulk materials will be discharged to the dump.
Composition
The Crawler-Mounted Transfer Conveyors is mainly composed of discharge boom, discharge belt conveyor, rotary steel structure, crawler walking mechanism, tower, rotary device, luffing device, receiving boom, receiving belt conveyor, operation room, electrical equipment, etc
Feature
The equipment has good mobility, convenient installation, operation and maintenance, and stable and reliable operation.
Applications
Crawler-Mounted Transfer Conveyors is mainly used at the end of open-pit waste dump or other bulk material transportation and discharge production lines. It is widely used in all kinds of mining and earthwork, gravel and rock excavation projects.
Technical specification
| description | parameter | unit |
| material | dinas | |
| density | 1.5~2.3 | t/m3 |
| granularity |
<200 |
mm |
| moisture | <8 | % |
| capacity | 200~5000 | t/h |
| Radius of gyration | 25~45 | m |
NOTICES
The customer shall provide the following information when place order:
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
Applicatios

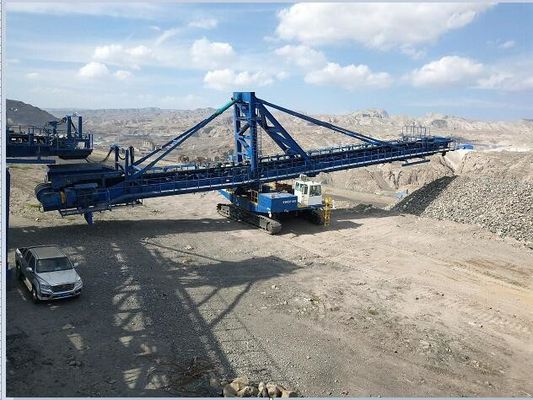

Case1

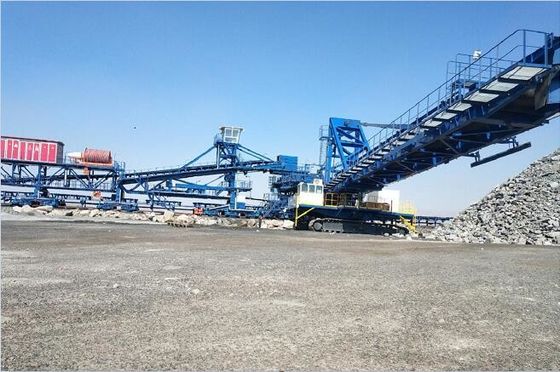

Case2

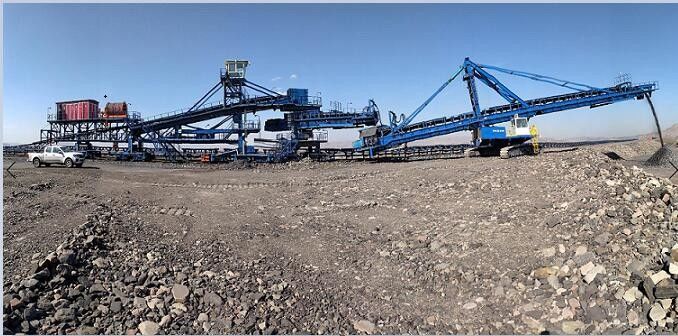

Case3

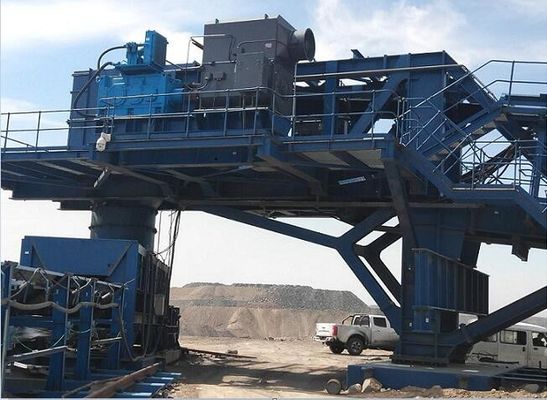

Case4

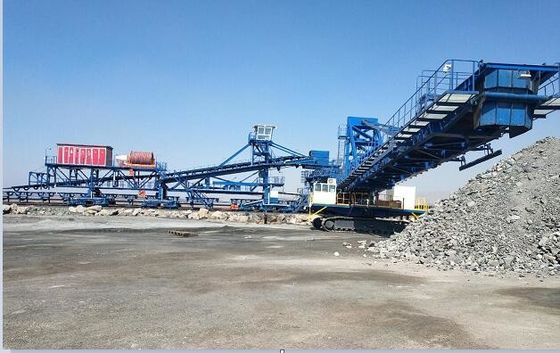

Case5
Photos of our factory
