Heavy Duty Grab Type Ship Unloading System For Bulk Materials Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | nude |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Item: | Ship Unloader | Painting: | Jotun |
|---|---|---|---|
| Color: | By Customer | Capacity: | 3500 T/h |
| Electric Component: | Top Brand | Steel Structure: | High Quality Steel |
| High Light: | Heavy Duty Grab Bucket Ship Unloader,Marine Environment Grab Bucket Unloader,Specially Designed Grab Type Unloaders |
||
Product Description

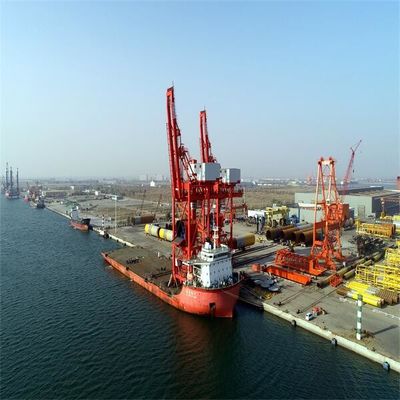

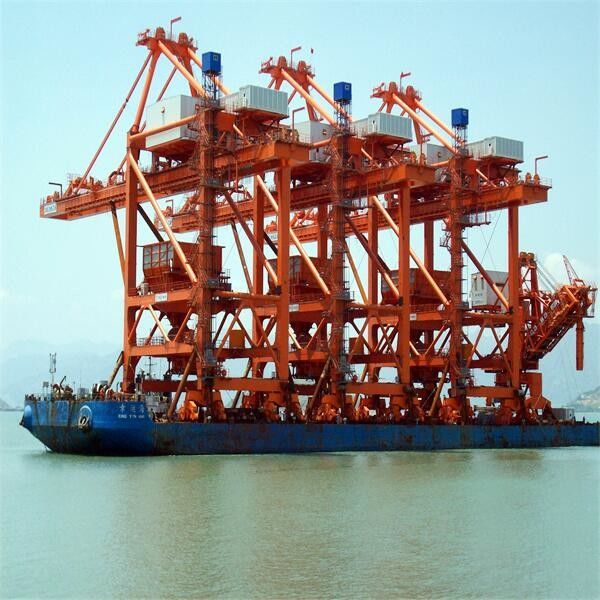

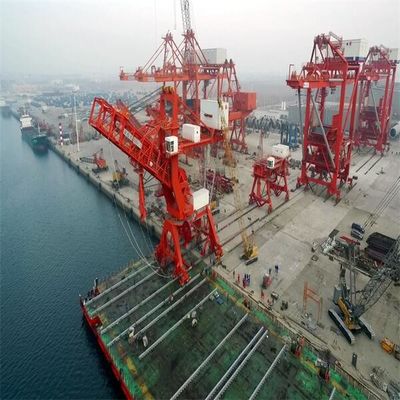

Ship Unloader System Grab Type Ship Unloader System Bulk Materials Ship Unloading System
Mechanical (electric) differential bridge-type ship unloader is a suite of effective, reliable and high performance unloading appliances customized to the port and terminal business handling dry bulk cargoes.
The connection of the main steel structure of the ship unloader adopts rigid connection, and the rigidity of the whole machine is strong enough.
Rolling T-section steel is adopted for the front and rear girder of the ship unloader and the trolley rail beam without fillet weld, to avoid weld fatigue cracking that may occur when the trolley wheels are rolled back and forth.
| model | Self-propelled trolley | Main and auxiliary trolley | Mechanical differential | Electric differential |
| weight(%) | 100% | 80% | 60~65% | 60% |
| stability | 1.4 | 1.5 | 1.7~1.8 | 1.7~1.8 |
| Wire rope lengtg | 1 | 6 | 2.5 | 2.5 |
| Power consumption | 1 | 2.5 | 1.1 | 1.2 |
| Operating cost(%) | 100% | 95% | 90% | 90% |
| Fault and maintenance | Breakdown rate high and hard to maintain | Breakdown rate low and easy to maintain but wire rope system is complicated | Wire rope system is simple, easy to change gear reducer is specific design,hard to maintain and change | Wire rope system is simple,gear reducer is standard,easy to maintain,electrical system is complicated |
| Cost of fundamental and facilities(%) | 100% | 95% | 85% | 85% |
| model | Mechanical differential | Electric differential |
| weight(t) | 1100 | 1050 |
|
Rail distance(m) Wheel distance(m) |
18~28 18 |
18~28 18 |
|
No of wheel Wheel pressure T Driver KW |
40 50 7.5*10 |
40 50 7.5*10 |
| Luffing mechanism KW | 90~110 | 90~110 |
| Four drums mechanism KW |
Start 2X500KW Runing 315KW |
4*400 |
| Specification of ship unloader | ||||||||||||||||
| vessel | capacity | unload time | lift capacity of grab |
weight of single grab |
cycle times |
one cycle | density of bulk material |
rail distance |
rail | wheel pressure |
extending reach distance of grab |
rear reach distance of grab |
hoisting speed |
lowering speed |
trolley speed |
traveling speed |
| DWT | t/h | hours | T | T | s | t/m3 | m | kN | m | m | m/min | m/min | m/min | m/min | ||
| 1000 | 340 | 2.94 | 10 | 5.5 | 61.82 | 58.23529412 | 0.85 | 16 | QU80 | 350 | 23 | 21 | 90 | 100 | 120 | 25 |
| 5000 | 500-2000 | 2.5~10 | 12.5~48 | 7.3~28 | 67.42~71.43 | 52.56-53.4 | 0.8~0.9 | 10.5~20 | QU80~100 | 245~600 | 24~28 | 8~16 | 100~160 | 120~190 | 150~240 | 20 |
| 8000 | 1000 | 8.00 | 25 | 14.8 | 67.57 | 53.28 | 20 | QU100 | 350 | 28 | 17 | 135 | 150 | 180 | 20 | |
| 20000 | 800-1000 | 20.00 | 22~30 | 13.3~14.8 | 55.56~67.57 | 53.28~64.8 | 0.85 | 16~22 | QU80~120 | 330~530 | 24~38 | 21 | 12~135 | 135~150 | 180 | 20~25 |
| 30000 | 1250 | 24.00 | 32 | 19.6 | 63.78 | 56.448 | 0.95 | 16 | QU100 | 505 | 33 | 14 | 135 | 150 | 220 | 25 |
| 35000 | 800~1600 | 21.88~43.75 | 22~40.5 | 12.8~25 | 62.52~76.19 | 54~57.6 | 0.85~0.95 | 14~24 | QU80~100 | 330~530 | 27~31 | 11~19 | 120~135 | 135~180 | 180~220 | 20~25 |
| 50000 | 1250~1650 | 33.3~40 | 32~40 | 19.5~25 | 60~67.35 | 56.16~60 | 0.85~0.95 | 22~26 | QU100~120 | 500~520 | 30~33 | 17~19 | 150~200 | 180~240 | 180~220 | 20~25 |
| 70000 | 1250~1750 | 40~56 | 34~42 | 20.5~25.75 | 52.08~68 | 53~69.12 | 0.85~0.9 | 22~30 | QU100~120 | 500~600 | 32~40 | 16.5~27 | 160~220 | 190~240 | 180~240 | 20~25 |
| 100000 | 1000~1800 | 55.56~100 | 30~46 | 18~27.6 | 55.56~75.12 | 48~64.8 | 0.8-1 | 22~26 | QU120 | 450~600 | 30~38 | 17~20 | 135~180 | 150~220 | 180~240 | 25 |
| 150000 | 1800~2100 | 71.42~83.33 | 45~52 | 27.2~31.5 | 63.16~66.67 | 54~57 | 0.90~2.4 | 24~28 | QU120 | 600~736 | 39~41.5 | 19~24 | 160~200 | 190~240 | 200~240 | 20~25 |
Main structure of bridge-type grab ship unloader
Mechanism of bridge-type grab ship unloader
1.Traveling mechanism
2. Main structure of bridge-type ship unloader
3. Hopper system
4. Grab bucket hoisting mechanism(mechanical differential four drums)
5.Grab bucket(wire rope reeving system)
6. Luffing mechanism
7.Wire rope reeving system of luffing mechanism
8. Cantilever safety hook device
9.Wire rope reeving system of wire rope support trolley
Overview of production process
