Seaport Terminal Eco Dust Suppression Hopper With Bag Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | 40 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 200000 |
| Packaging Details: | nude |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 85 set/yesr |
|
Detail Information |
|||
| Product: | Eco Hopper | Color: | Orange |
|---|---|---|---|
| Type: | Dust Controlled | Painting: | HEMPEL |
| Output: | 400t/h | Model: | 40 M³ |
| Character: | Type Mounted | Wear Plate: | Hardox 400 |
| High Light: | Seaport Terminal Eco Hopper,Bag Filter Dust Suppression Hopper,Eco Dust Suppression Hopper |
||
Product Description

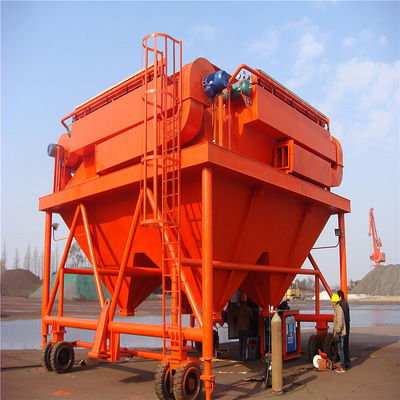

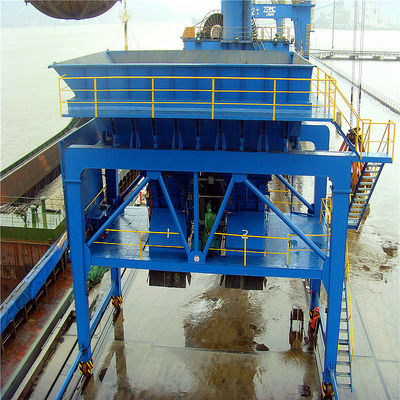

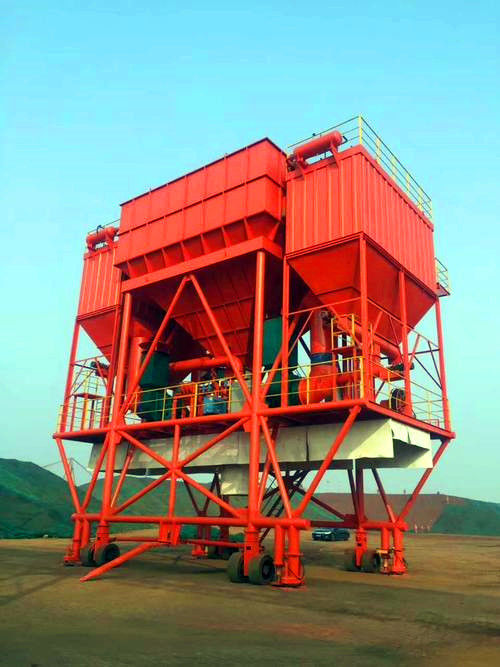

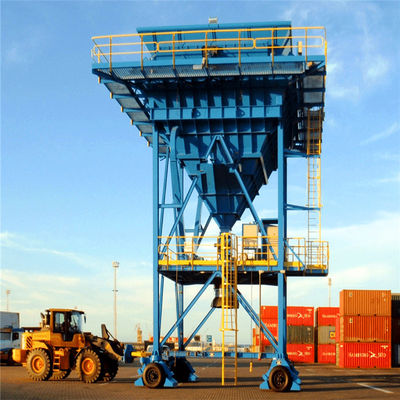

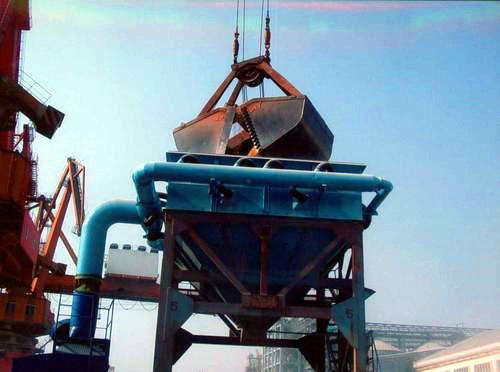

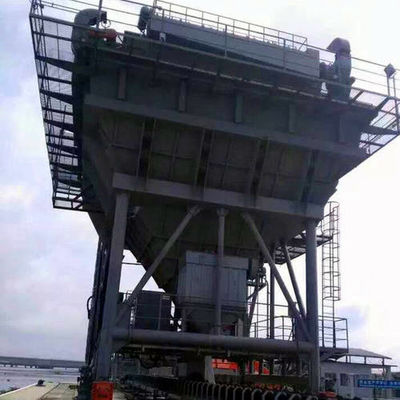

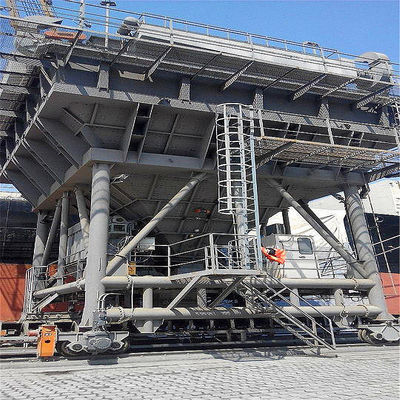

Dust controlled Eco hopper with bag filter at seaport terminal
The SSI ECO hopper is designed as a dust controlled, grab or belt conveyor unloading hopper, is an economical and ecologically sensitive solution. It`s customized designe to suit the property of any bulk materials. And fulfill all needs for the efficient import of dry bulk materials.
The SSI ECO hoppers is designed base on the client`s specification requirement.
The SSI dust controlled hoppers is designed to solve the major issue for all ports when handling bulk materials.
The environmental protection dust suppressed hopper, which comprises a hopper support and a hopper body with a valve and a material guide groove under it. The hopper support is also provided with a dust suppressed component, and the dust suction port of the dust removal component is located directly above the ground belt conveyor The utility model has the advantages that during the whole conveying process from the hopper outlet to the ground belt conveyor, the powdery materials are transported at a slow speed, and the dust suppressed components are added to absorb the scattered dust, which can greatly purify the air at the transportation site, ensure that the loading and unloading dust does not leak out and protect the environment.
Technical specification
| output | 400t/h |
| material | cement /coal |
| density | 1.3t/m³ |
| volume | 40m³ |
| application | discharge to truck |
| pressure on each support landing | 30t |
| full load of hopper | 80t |
| size of discharge opening | 400mm*400mm |
| power of fan motor | 22kw*3 |
| noise | less than 80 DB |
| travel speed | 10m/min |
| power consumption | 105kw |
| dead weight | 75t |
General drawing
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
To be sincere and keep moving! Shanghai Sunshine Industrial Technology Co., Ltd. always dedicate to high quality products and service!
