Customized Vibrating Heavy Duty Feeder For Opencast Mines Ore Conveying

Product Description

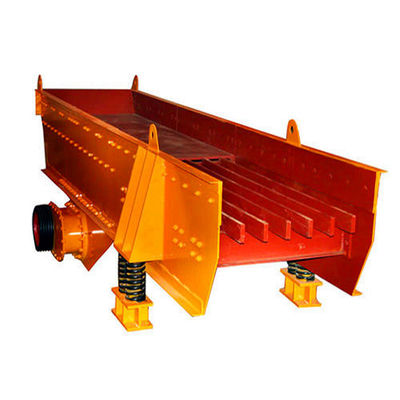

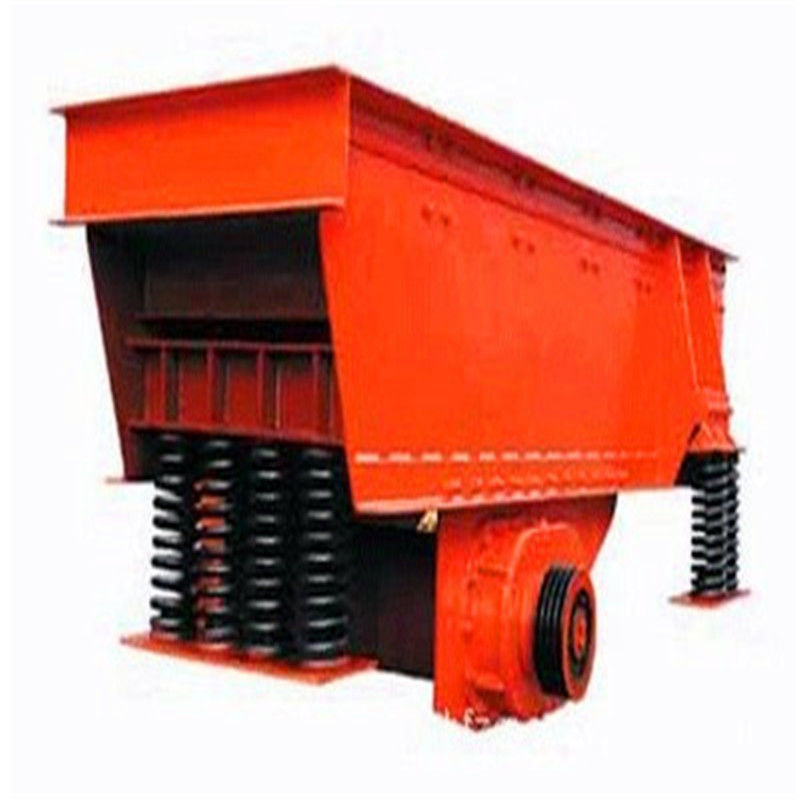

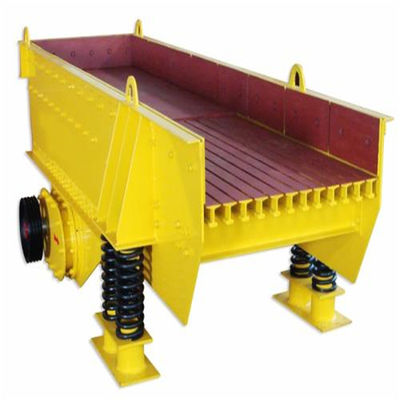

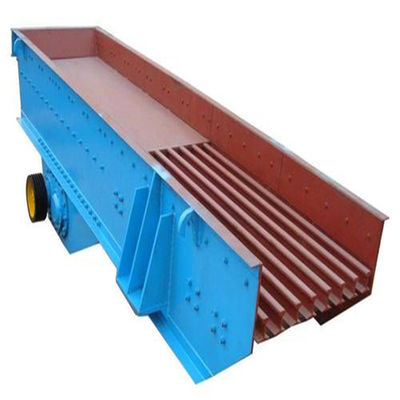

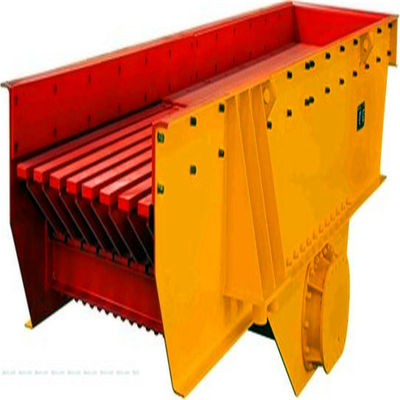

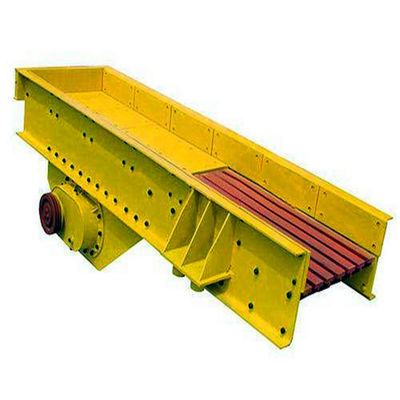

Customized heavy duty vibrating feeder for ore conveying in opencast mines

SSI vibrating feeders are ideal for direct feeding processing machinery such as roller crusher, cone crusher, jaw crusher, impact crusher, and hammer crusher. The feeders can be also used to feed screens, roller sizers, and conveyor belts. All the feeds can be designed based on the specification of the client`s requirement.

Working principle of vibration feeder: the current of the electromagnetic coil of the exciter is rectified by a single-phase half-wave. When the coil is connected, there is current passing through the positive half cycle, and a pulse electromagnetic force is generated between the armature and the iron core to attract each other. At this time, the slot moves backward, the mainspring of the exciter deforms and stores certain potential energy, and there is no current passing through the negative half cycle coil, When the electromagnetic force disappears, the mainspring releases energy to make the armature and iron core move forward away from the tank in the opposite direction. Therefore, the electromagnetic vibration feeder vibrates 3000 times per minute at the frequency of the AC power supply. Because there is a certain included angle between the horizontal plane direction of the tank and the action line direction of the exciting force, the materials in the tank move forward continuously along the parabola track. The exciting force is controlled by adjusting the rectifier voltage, to control the feeding amount of the electromagnetic vibration feeder. The electromagnetic vibration feeder is powered by thyristor rectification. The output voltage is directly related to the conduction angle of the thyristor. Therefore, when in use, the output voltage is generally controlled by adjusting the conduction angle. At the same time, according to different use environments, different signals can be selected to control the conduction angle of the thyristor, to achieve the purpose of automatic quantitative feeding of the feeder.

Overall dimensions

specification

About us

Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.

To be sincere and keep moving! Shanghai Sunshine Industrial Technology Co., Ltd. is always dedicated to high-quality products and services!

Photos of our factory
