Double vertical bucket elevator Heavy Duty For Bulk Materials Conveying
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | SSI-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 220000 |
| Packaging Details: | nude |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 50 set/year |
|
Detail Information |
|||
| Product: | Bucket Elevator | Color: | Yellow |
|---|---|---|---|
| Painting: | INTERNATIONAL | Type: | Electrical Driven |
| Capacity: | 480 M³/h | Steel Work: | Welding |
| Character: | High Performance | Benefit: | Cost Effective |
| High Light: | Double Vertical Bucket Elevator,Heavy Duty Vertical Bucket Elevator,Belt Bucket Elevator Bulk Materials Conveying |
||
Product Description

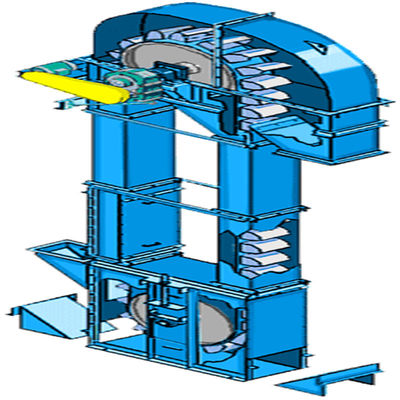

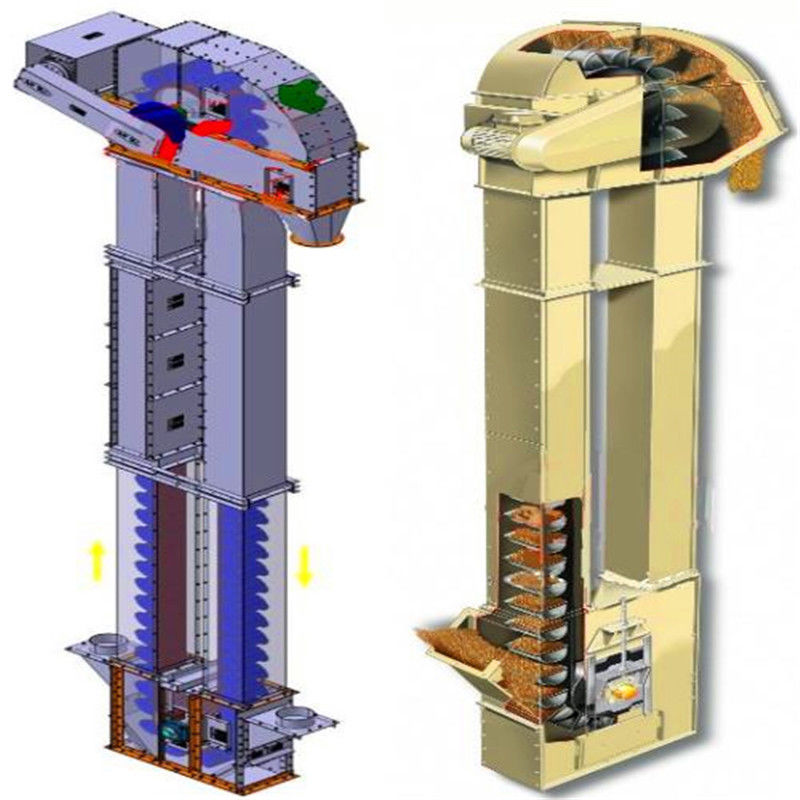

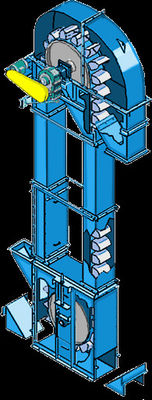

Customized heavy duty double bucket elevator for bulk materials vertical conveying
The SSI bucket elevators are customized and continuously developed to suit increasing plant and process requirements, offering this availability combine with performance, flexibility, and service life. The SSI bucket elevators are designed for efficient vertical transport of any kind of bulk material under severe operating conditions and in continuous operation.
Chain plate conveyor is widely used for automatic transportation, distribution of food, cans, drugs, beverages, cosmetics and washing products, paper products, condiments, dairy and tobacco, and connecting transportation of back packaging.
There are three kinds of conveyor chainplates: POM material, stainless steel, and stainless iron. There are two kinds of turning forms: Wing turning and magnetic turning.
The π type turning chain plate is used as the conveying carrier for the turning chain plate conveyor, and the chainplate runs in the special turning guide rail made of high molecular polyformaldehyde; Or use stainless steel turning chain plate and magnetic turning guide rail to make the conveying chain plate always run in the special guide rail, which has the characteristics of stable operation and convenient installation
Specification of bucket elevator
| Type | ZBT300 | ZBT400 | ZBT500 | ZBT610 | ZBT750 | ||
| Capacity | M3/h | 130 | 185 | 230 | 280 | 350 | |
| Maximum size | mm | 100 | 150 | ||||
| Bucket type | ZH or SHL | ||||||
| Bucket | width | Mm | 300 | 400 | 500 | 610 | 750 |
| Capacity | L | 5 | 8 | 10 | 12 | 15 | |
| Speed | m/s | 0.3-1 | |||||
| Distance | mm | 250 | |||||
| Chain spacing | Mm | 125 | |||||
| Maximum elevation | proportion800kg/m3 | 55 | 50 | 45 | 42 | 40 | |
| proportion1200kg/m3 | 51 | 46 | 43 | 42 | 38 | ||
| proportion1600kg/m3 | 48 | 44 | 42 | 40 | 38 | ||
| proportion2000kg/m3 | 45 | 42 | 41 | 38 | 36 | ||
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.

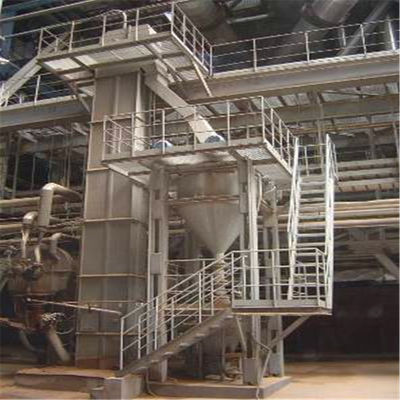

Photos of our factory
