Heavy Duty Chain Bucket Elevator For Ore Conveying 600 m³/h
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | SSI-630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 220000 |
| Packaging Details: | nude |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 50 set/year |
|
Detail Information |
|||
| Goods: | Chain Bucket Elevator | Color: | Grey |
|---|---|---|---|
| Painting: | PPG | Electric Components: | Top Brand |
| Capacity: | 600 M³/h | Steel Structure: | Welding |
| Character: | Durable | Components: | International Brand |
| High Light: | Chain Bucket Elevator Heavy Duty,Ore Conveying Chain Bucket Elevator,600 M³/H Industrial Bucket Elevators |
||
Product Description

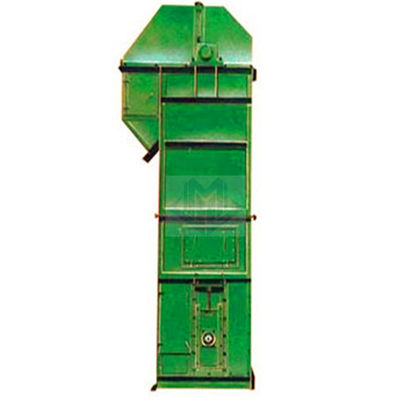

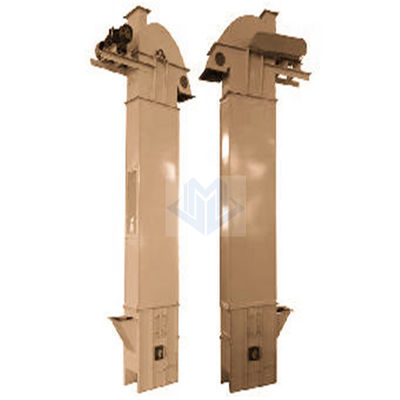

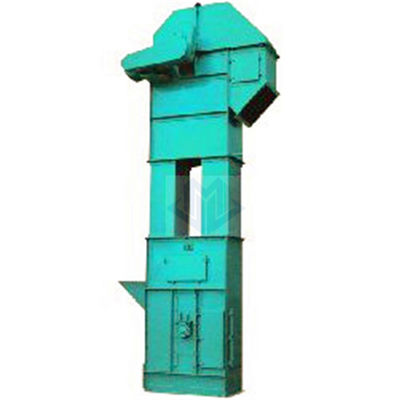

Tailor-made heavy-duty chain bucket elevator for ore conveying
Chain conveyors are mainly divided into four categories: chain plate conveyor, hanging chain conveyor, mesh belt conveyor, and plug-in line conveyor. The SSI bucket elevators are customized and continuously developed to suit increasing plant and process requirements, offering this availability combine with performance, flexibility, and service life. The SSI bucket elevators are designed for efficient vertical transport of any kind of bulk material under severe operating conditions and in continuous operation.
Mesh belt conveyor: the modular mesh belt uses the plastic hinge pin extending over the entire width of the conveyor belt to assemble the injection-molded mesh belt into an interlocking unit. This method increases the strength of the conveyor belt and can be assembled into any required width and length. The baffle and side plate can also be interlocked with hinged pins to become one of the integral parts of the conveyor belt
Specification of chain bucket elevator
| Model | Capacity m³/h | Max largest lump | ||||
| percentage | ||||||
| 10 | 25 | 50 | 75 | 100 | ||
| NE30 | 32 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 | 110 |

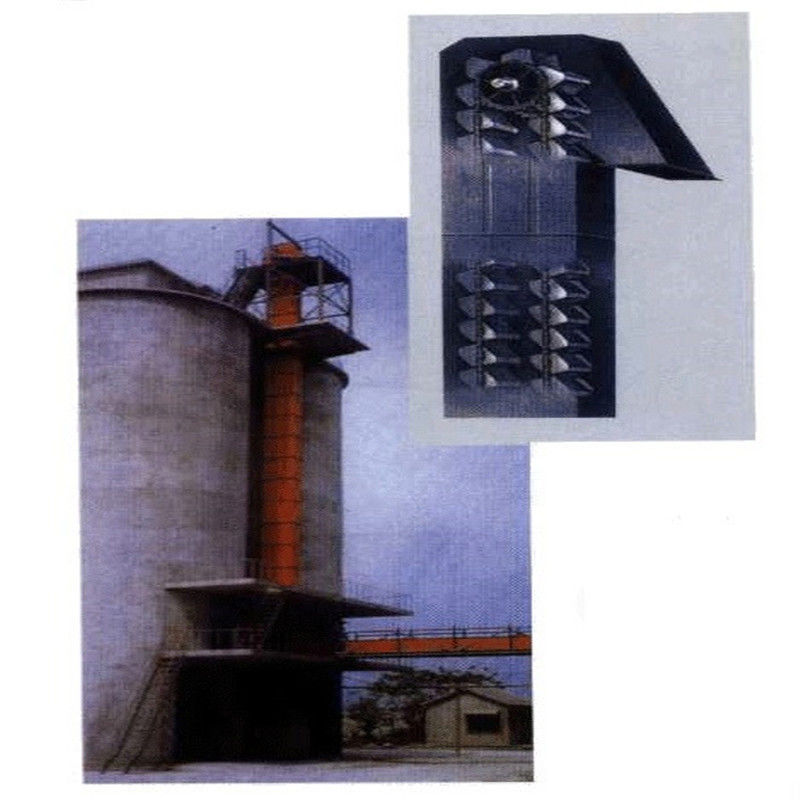

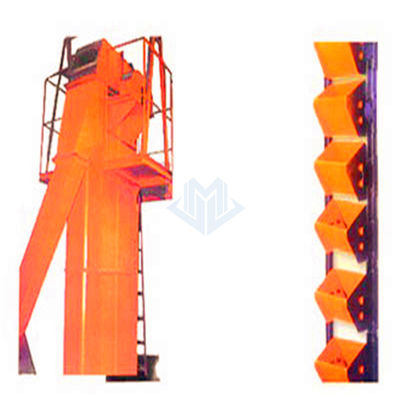

Applications
Case1
Case2
Case2
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
