Bulk Materials screw belt conveyor PPG low maintenance

Product Description

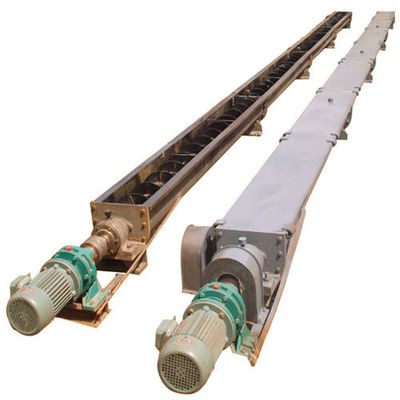

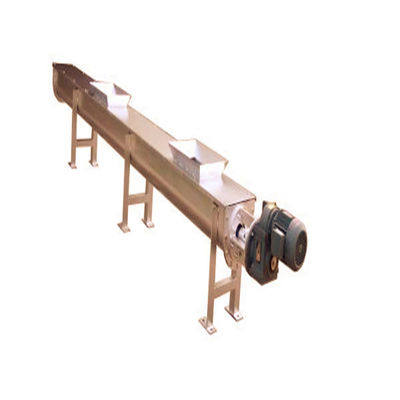

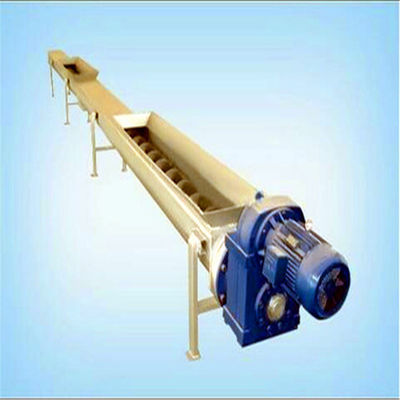

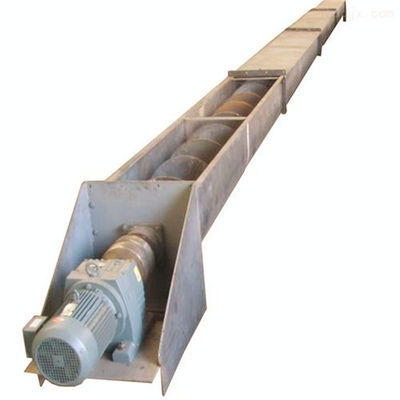

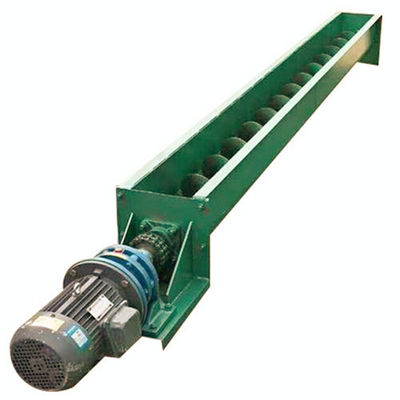

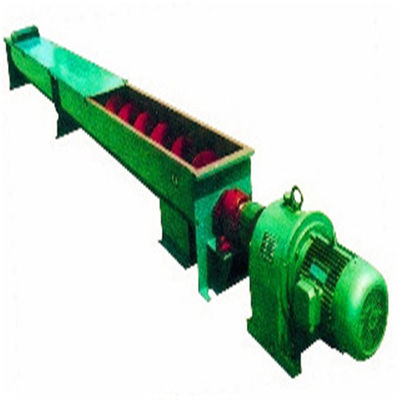

Tailor made high efficiency screw conveyors for bulk materials conveying

A screw conveyor is transportation machinery transportation machinery widely used in factories and mines. The SSI screw conveyor is customized and continuously developed to suit increasing plant and process requirements, offering this availability combine with performance, flexibility, and service life. The SSI crew conveyor is designed for efficient Horizontal and Vertical transport of any kind of dry bulk material under severe operating conditions and in continuous operation. The SSI screw conveyor is a standard product, but it can be customized according to the client`s technical requirement.

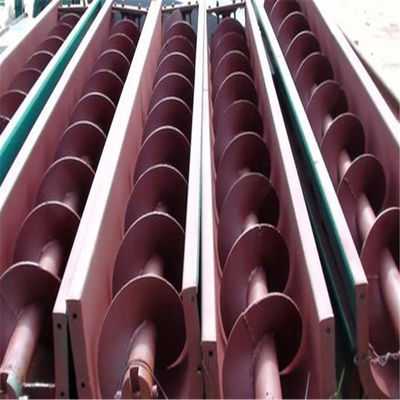

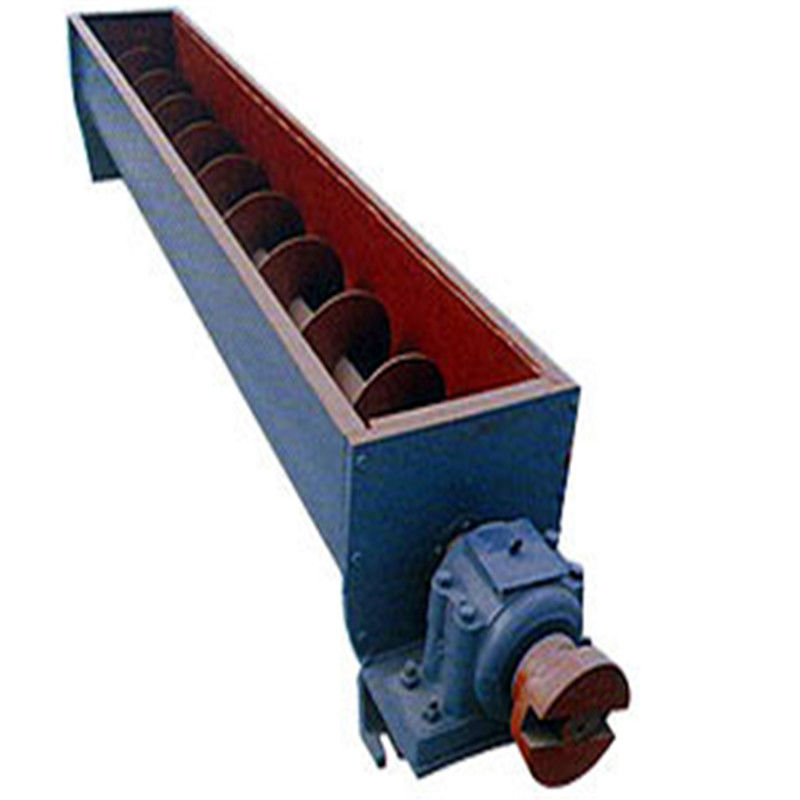

The screw conveyor is a kind of machinery that uses motor to drive screw rotation and push materials to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically, and has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance, convenient closed transportation and so on. Screw conveyor can be divided into two types: axial screw conveyor and shaftless screw conveyor. In appearance, it can be divided into U-shaped screw conveyor and tubular screw conveyor. Axial screw conveyor is suitable for dry powder materials and small particle materials without viscosity (e.g. cement, fly ash, lime, grain, etc.) and shaftless screw conveyor is suitable for conveyor made of viscous and winding materials. (e.g. sludge, biomass, garbage, etc.) the working principle of the screw conveyor is that the rotating screw blades move the materials to the screw conveyor, so that the materials do not rotate with the screw conveyor blades. The force is the weight of the materials and the friction resistance of the screw conveyor shell to the materials. For the screw blades welded on the rotating shaft of the screw conveyor, the surface shape of the blades depends on the conveying There are different types of materials, such as solid surface, belt surface, blade surface, etc. The screw shaft of the screw conveyor has a thrust bearing at the end of the material movement direction to give the axial reaction force to the screw with the material. When the captain is long, an intermediate suspension bearing should be added.

Technical specification

Applications

Case1

Case2

Case3

Case4

About us

Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
