7t10m Electric Telescopic Boom Hydraulic Marine Cranes For Mounting On Vessel
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABS/BV/CCS/GL/RINA/RMRS |
| Model Number: | 7t10m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 50000 |
| Packaging Details: | nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Product: | 7t10m Telescopic Boom Marine Crane | Dead Weight: | 7500 Kg |
|---|---|---|---|
| Electric System: | Schneider | Enclosure: | IP56 |
| Model: | 7t10m | Painting: | PPG |
| Steelwork: | SA2.5 | Primer Coating: | DFT 60 Microns |
| High Light: | Mounting On Vessel Hydraulic Marine Cranes,Telescopic Boom Hydraulic Marine Cranes,Electric Marine Cranes 7t10m |
||
Product Description

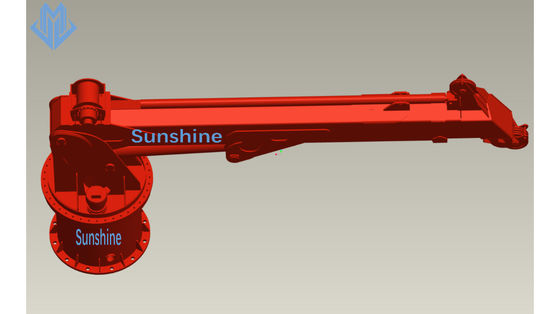

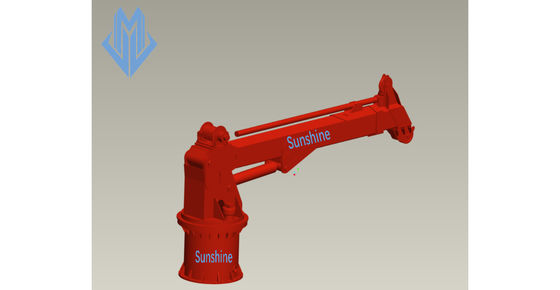

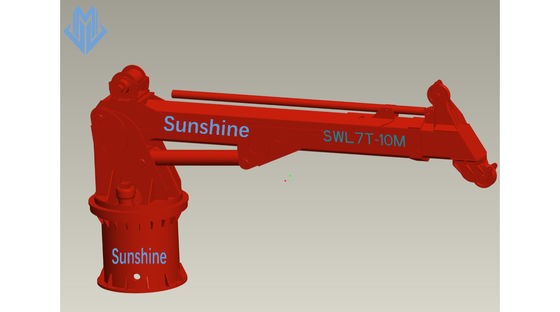

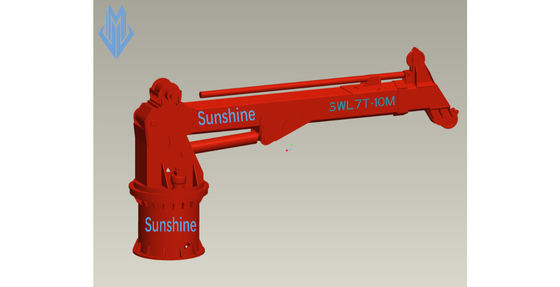

7t10m electric hydraulic telescopic boom marine crane for mounting on vessel
The telescopic box boom marine cranes have been designed for a long time operation under adverse and extreme conditions in a highly corrosive
marine environment. The telescopic box boom marine cranes on board various ships and offshore units. The cranes as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to the foundation. The crane is equipped with a hydraulic powered winch, hydraulically powered luffing, hydraulic-powered extension, and a hydraulic powered slewing system.
The crane is installed with a rolled steel pedestal for bolting or welding to the deck foundation with a standard height of the crane. The different
pedestal height is available based on the customer`s requirement. The standard telescopic boom crane is supplied with an operator platform. The operator cabin is available based on the customer`s requirements.
Technical specification
| 1 | SWL | 7t@10m |
| 2 | Max working radius | 10m |
| 3 | Min working radius | 2m |
| 4 | Hosting speed | 0~15m/min |
| 5 | Slewing speed | 0.7r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 50s |
| 8 | Hook travel | 25m |
| 9 | DFT of painting | 320um |
| 10 | Extension time | 20s |
| 11 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 12 | Electric motor | |
| Power | 37Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 13 | Flow | 80L/min |
| 14 | Design temperature | -10°~40° |
| 15 | Dead weight | ~10000 kg |

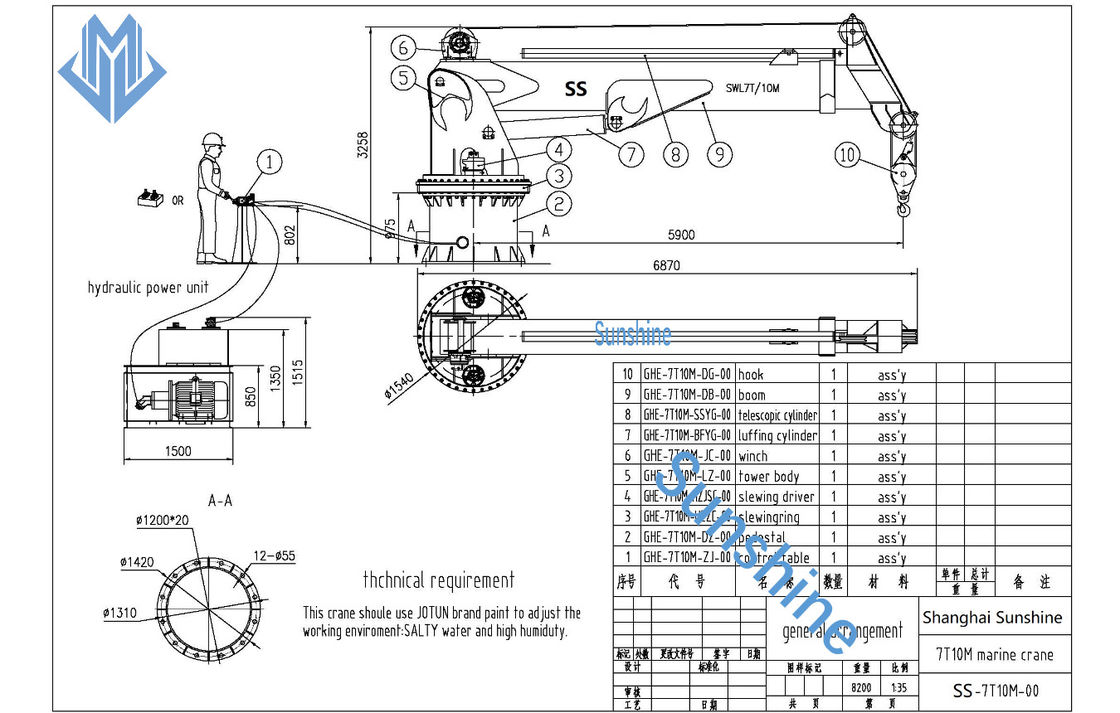

General drawing
Photos of our factory
