12 Cube Meter Electric Hydraulic Clamshell Grab Bucket For Sands Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABV/BV/CCS |
| Model Number: | 12 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 30000-100000 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 300 set/y |
|
Detail Information |
|||
| Product: | 12m³ | Wear Plate: | Hardox 500 |
|---|---|---|---|
| Model: | 12 Cube Meter | Color: | Advise By User |
| Painting: | HEMPEL | Character: | High Performance |
| Feature: | Reliable | Type: | Electro Hydraulic Clamshell Grab |
| High Light: | Electric Hydraulic Clamshell Grab,Hydraulic Clamshell Grab Sands Handling,12 Cube Meter Hydraulic Clamshell Grab |
||
Product Description
12 cube meter electric hydraulic clamshell grab bucket
Electro-hydraulic grab is a kind of grab with its hydraulic systems such as motor and hydraulic pump, which is driven by the external power supply to open and close. The grab depends on the forward and reverses the rotation of the motor or the hydraulic valve to control the opening and closing of the grab. The grab is equipped with its hydraulic system, and the main components of the hydraulic system, such as valve block, seal, and hydraulic cylinder, are made of European and American brands. The hydraulic pump adopts a constant power pump and hydraulic servo system. Electro-hydraulic bulk cargo grab is effective equipment for bulk cargo handlings such as sand, coal, mineral powder, ore, and cement in various harsh environments.
Specifications of hydraulic clamshell grab bucket
| volume | 12m³ |
| power of motor | 55 kw |
| close time | 12s |
| Max working pressure | 18 Mpa |
| density | 1.5t/m³ |
| work time of E-motor | 40% ED |
| protect grade | IP54 |
| design temperature | -10°~+40° |
| dead weight | 10800kg |

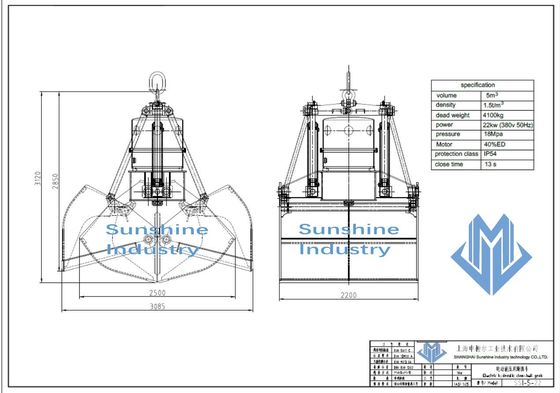

General drawing

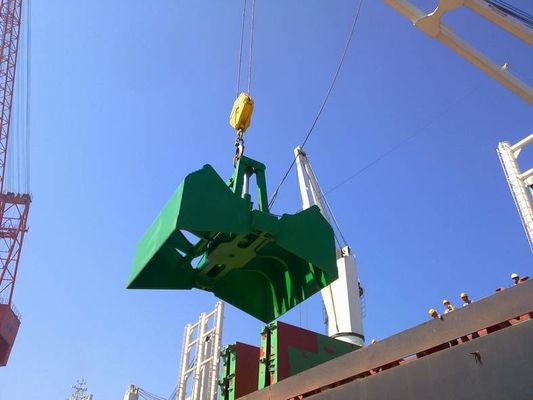

applications
case1
case2
case3
case4
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for heavy equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
To be sincere and keep moving! Shanghai Sunshine Industrial Technology Co., Ltd. always dedicate to high quality products and service!
photos of our factory
