Radio Remote Controlled Clamshell Grab Buckets 10 Cube Meter
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABV/BV/CCS |
| Model Number: | 10 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 15000-27000 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 300 set/y |
|
Detail Information |
|||
| Material: | Carbon Steel | Wear Plate: | Hardox Or NM400 |
|---|---|---|---|
| Model: | 10 Cube Meter | Color: | Advise By User |
| Painting: | According To ISO12944 | Character: | Wireless Romote Controlled |
| Feature: | Reliable And Durable | Type: | Clamshell Grab |
| High Light: | Orange Peel Grab Radio Remote Controlled,10 Cube Meter Mechanical Grab Bucket,Corrosion resistant Clamshell Grab Buckets |
||
Product Description

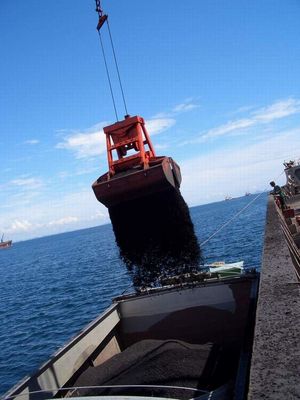

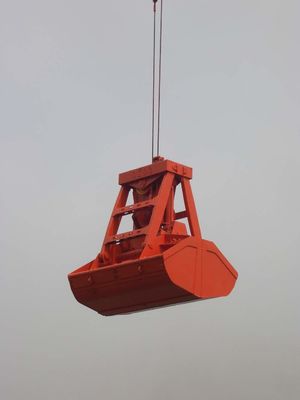

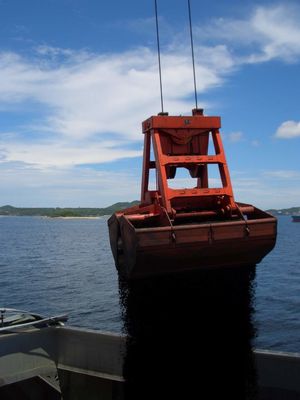

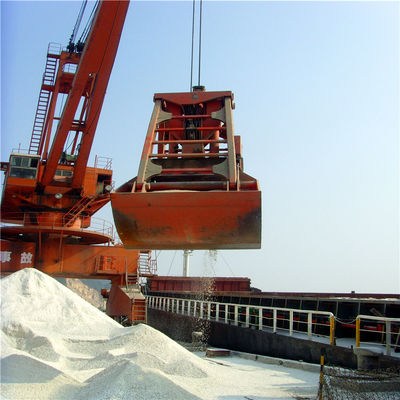

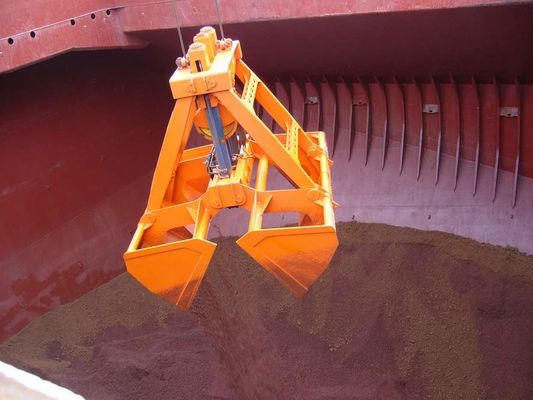

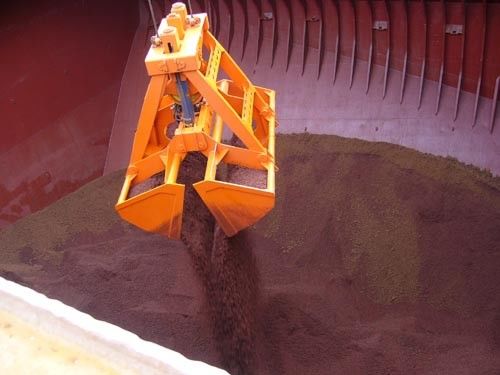

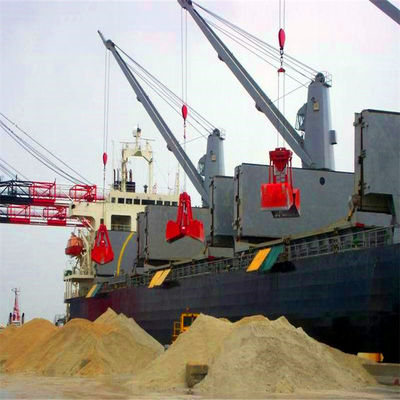

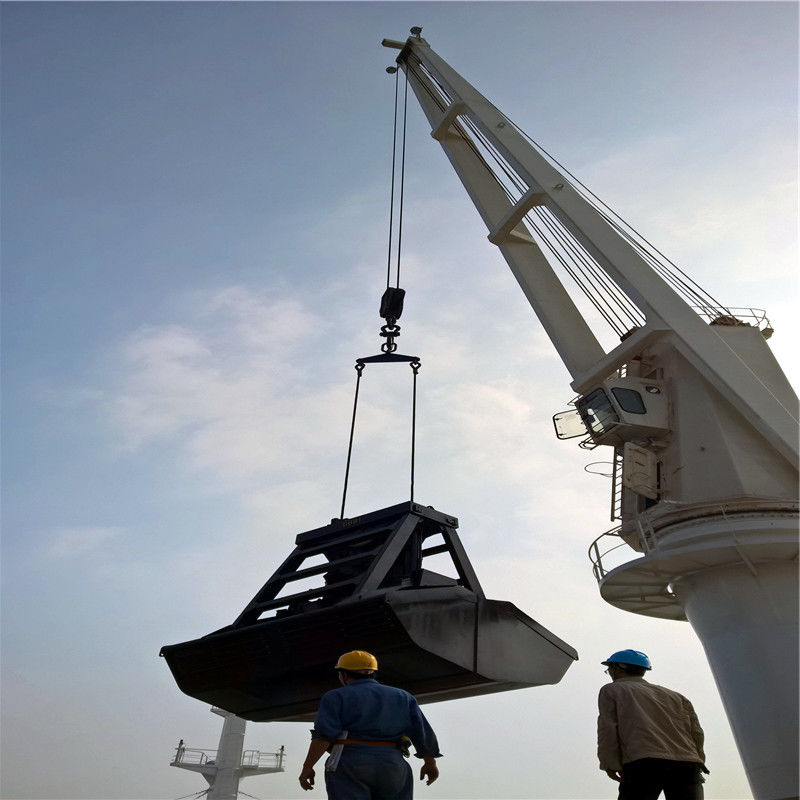

10 cube meter radio remote controlled clamshell grab bucket
Wireless remote control grab is a kind of bulk cargo grab that does not need power energy, automatically closes on the material pile and can automatically open at any position in the air. It not only has the characteristics of simple structure and reliable use of rope grab, but also has the characteristics of high loading and unloading efficiency of clamshell grab. As a new invention of mechatronics, the grab is widely used. Its invention rewrites the history of low efficiency of single cable grab in hoisting and transportation industry. The grab is easy to use. The crane does not need to be equipped with other auxiliary devices. The grab can be used by hanging it on the hook or container spreader. At present, it is widely used in bulk carriers, container and bulk cargo terminals.
Techncial specification
| volume | 6~12m³ |
| SWL | 25t |
| density | 0.8~2.5t/m³ |
| dome | 35° |
| Dia of closing rope | 36mm |
| length of closing rope | 12m |
| stroke of closing rope | 4.21m |
| Dia of pulley | 650mm |
| dead weight | 9000kg |
General drawing
photos of our factory
