Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling

Product Details:

Place of Origin: China
Brand Name: SSI-HDCZ
Certification: manufacture certificate
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $1,500,000-5,000,000/ Set
Packaging Details: Wooden case or bare
Delivery Time: 6 months after receipt of advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets / year
Get Best Price Contact Now

Detail Information

Item: Spiral Type Ship Unloader Painting: 3 Layers
Color: Orange DFT: 260um
Character: Reliable Advantage: Low Maintenance
Price: Low Cost Capacity: 200 T/h
High Light:

Heavy Duty Bulker Unloading System

,

Grain Handling Screw Ship Unloader

,

Spiral Type Ship Unloader

Product Description

Heavy-duty spiral type 200 to 1000 mph ship unloader for grain handling



The spiral-type ship unloader is mainly composed of steel structure, conveying system, auxiliary working mechanism, operation control system, etc. The metal structure includes a gantry and supporting cylinder, rotary table on the cylinder, horizontal support arm, vertical support arm, etc. The gantry adopts a box structure, and one rigid and one flexible outrigger is often used for the gantry outrigger to avoid wheel-rail gnawing caused by gantry deformation. The slewing bearing device adopts rolling bearing slewing bearing, and the horizontal arm and vertical arm can adopt tubular structure or box structure. Auxiliary truss shall be added to the horizontal arm with a long horizontal conveying distance to enhance its rigidity. The tail end of the horizontal arm is equipped with a live counterweight to balance the self-gravity of the vertical arm and the vertical screw conveyor. The conveying system of the screw ship unloader is composed of a vertical arm screw conveyor, relative rotary reclaimer, horizontal arm screw conveyor, and gantry screw conveyor. The Belt conveyor system is generally used behind the wharf. The auxiliary working mechanism of the ship unloader includes the traveling mechanism of the ship unloader, the rotating mechanism of the rotating part, the pitching hydraulic cylinder of the horizontal arm and its upper horizontal arm screw conveyor, the vertical arm and its upper vertical arm screw conveyor, and the swing hydraulic cylinder of the reclaiming device.



Efficient Rotate Ship Unloader
Capacity(tph):200-1000 t/h
Price: Negotiated
Port: shanghai
Production Capacity: 10 sets per year
Payment Terms: L/C, T/T, D/P
Certification: ISO, DL, JB
Transport Package: Wooden drum, Iron wooden drum, Iron drum, or custom made
Applicable Site: wharf powerplant
Applicable material: coal ore



Applications

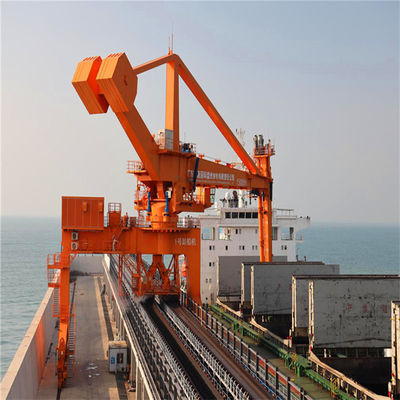

Case1

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling 0

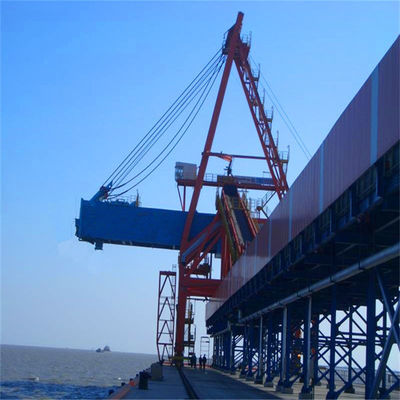

Case2

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling 1

About us

Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.



Photos of our factory

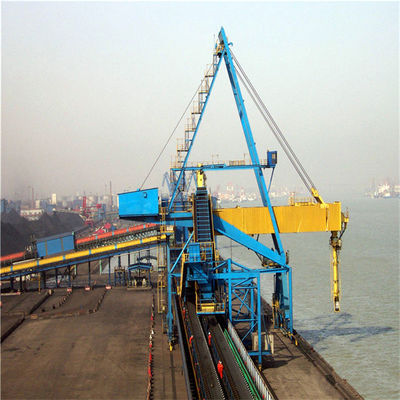

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling 2

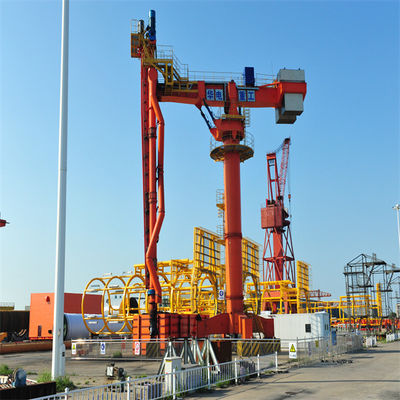

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling 3

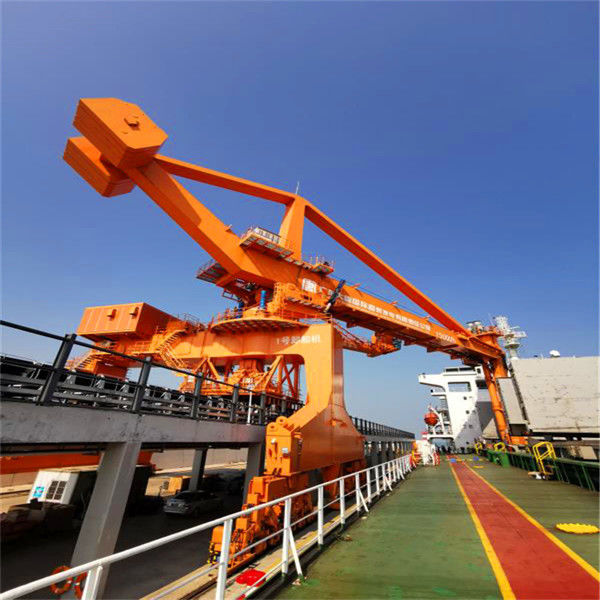

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling 4

Heavy Duty Spiral Type 1000 Tph Ship Unloader For Grain Handling 5
