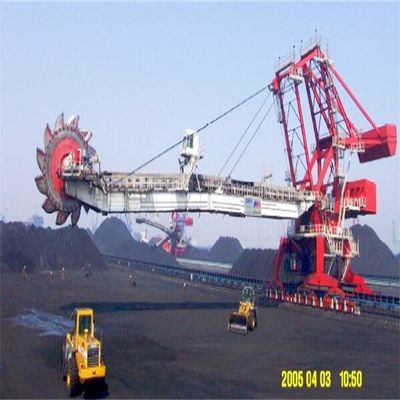

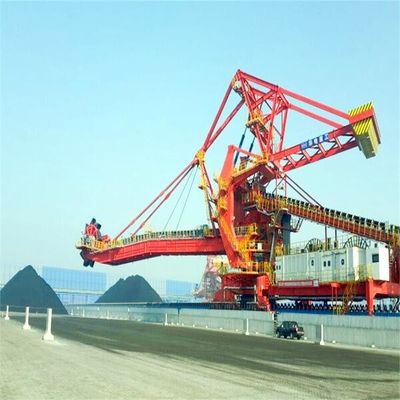

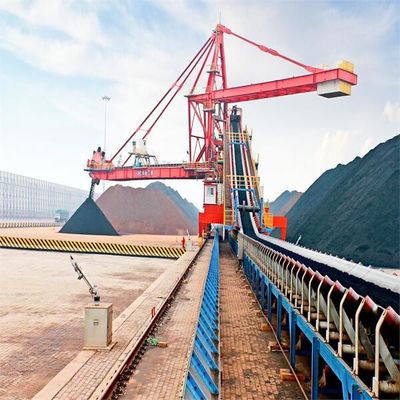

Stockyard Stacking And Reclaiming Equipment For Coal handling 3500 t/h
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Item: | Stacking And Reclaiming Equipment | Painting: | PPG |
|---|---|---|---|
| Color: | Red | Capacity: | 3500 T/h |
| Character: | Heavy Duty | Application: | Coal Handling |
| Steel Working: | Welding And Inspected | Material Handling: | Coal |
| High Light: | Coal Handling Stacker Reclaimer Machine,Circular Stacker Reclaimer For Stockyard,Stockyard Stacker Cum Reclaimer 3500t/H |
||
Product Description

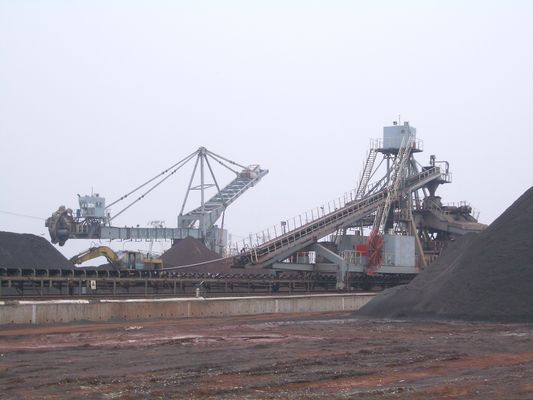

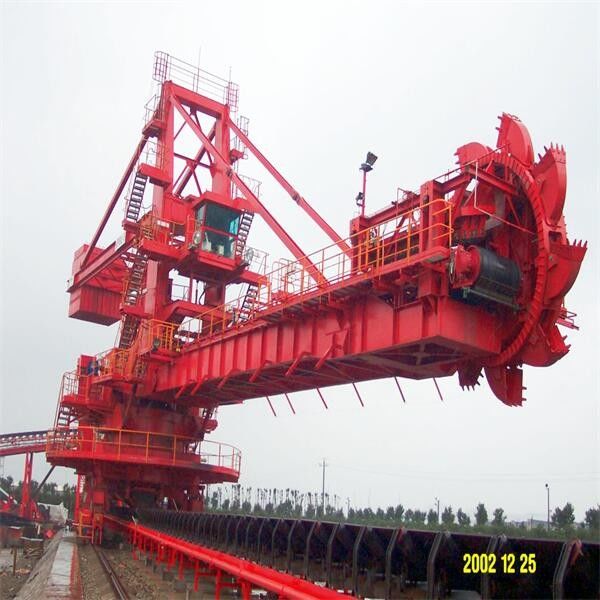

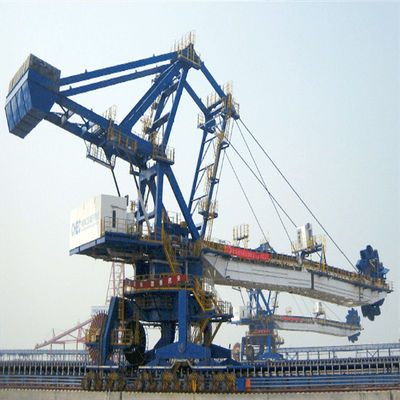

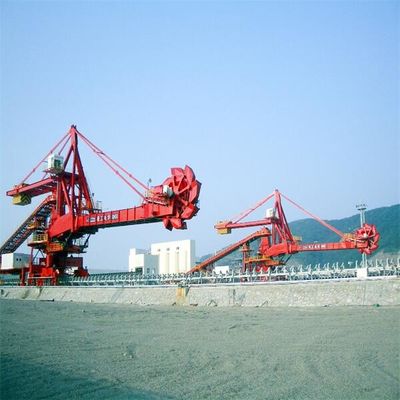

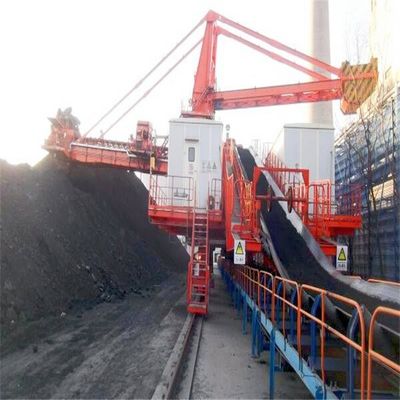

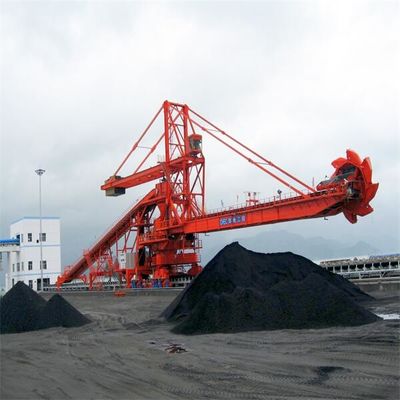

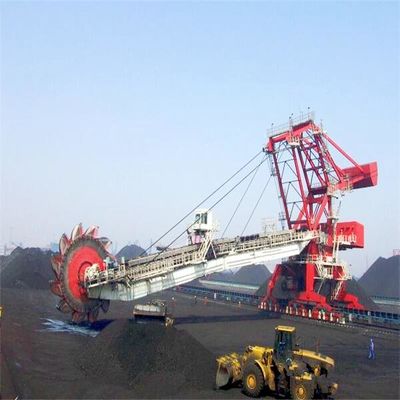

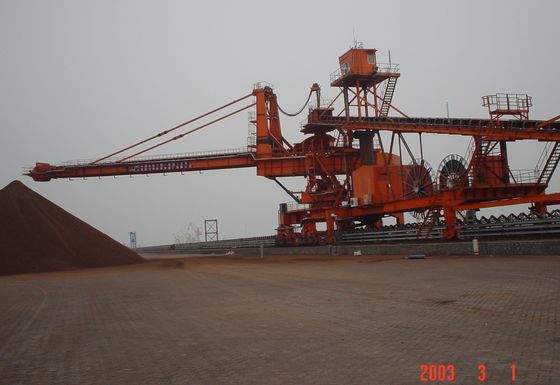

Stockyard stacking and reclaiming equipment for coal stacking and reclaiming
1. Summary introduction
Bucket-wheel stacker reclaimer can realize the functions of continuous stacking, taking, mixing, and storage of bulk particles and block raw materials. It is widely used in the material storage and transportation system of electric power, metallurgy, building materials, chemical industry, port, coal, grain, and other industries. It is common equipment in large and medium-sized industrial enterprises.
Bucket-wheel stacker reclaimer is mainly composed of bucket wheel, slewing, boom raising, walking, cantilever belt conveyor, and metal structure, tail car, auxiliary structure, central hopper, spray dust suppression system, lubrication system, electrical system, power supply device, and so on.
By adjusting the tail car structure (fixed single tail car, semi lying tail car, full lying tail car, cross tail car, double tail car, etc.), the bucket wheel stacker reclaimer can realize many functions, such as stacking, reclaiming through, reclaiming turn back, shunting, through and so on, to meet the requirements of different working conditions.
2. Structural form of the whole machine
The medium and small bucket wheel machines adopt the overall balance form, with few movable hinge points and a low failure rate. The central hinge seat of the superstructure is equipped with lubrication-free joint bearing, with less maintenance workload. For large bucket wheel machines, the movable balance type is mostly adopted, mainly considering that the pitching angle of the cantilever frame is small and the change of the center of gravity relative to the superstructure is small.
Feature
| item | Stacking and Reclaiming Equipment |
| painting | PPG |
| color | red |
| capacity | 3500 t/character heavy |
| character | heavy duty |
| application | coal handling |
| steel working | welding and inspected |
| material handling coal | coal |

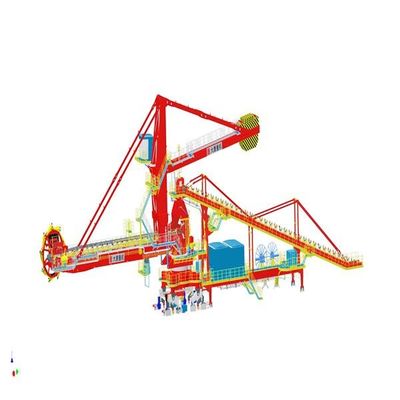

GA (fixed split tail car)
GA (full function tail car)
3. Some pictures of main parts
1 traveling system

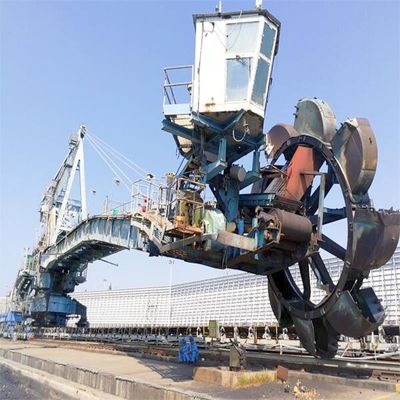

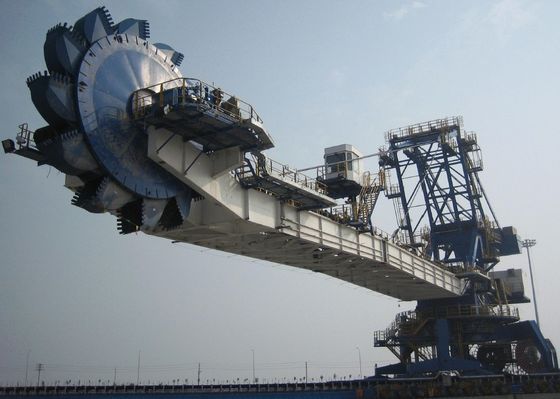

2. Bucket wheel mechanism
3. Luffing mechanism
4. Slewing mechanism
5. Cantilever belt conveyor
6. Upper metal structure
7. Tripper car
8. cable drum
