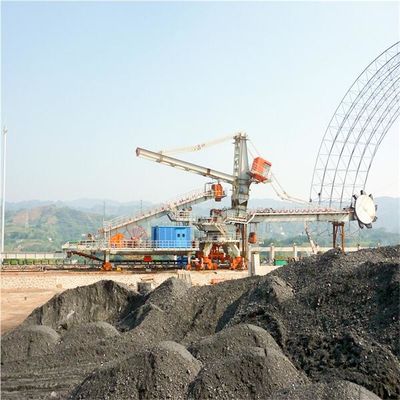

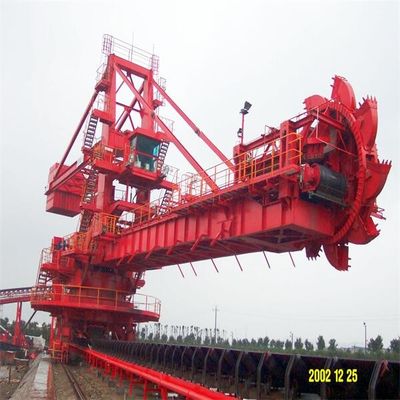

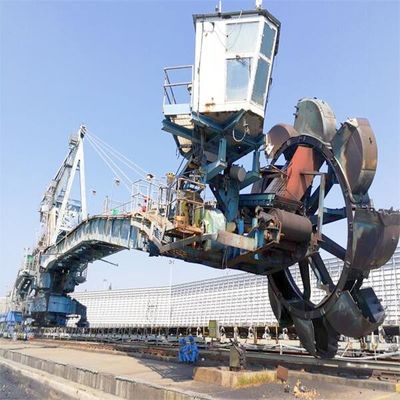

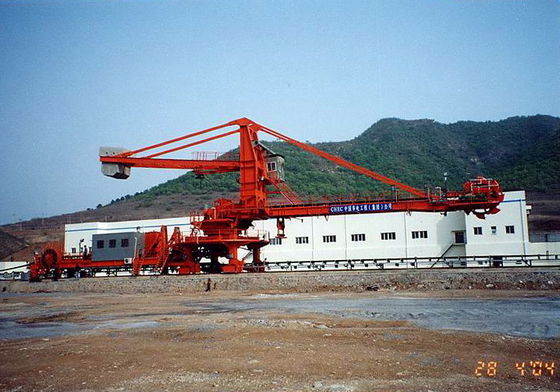

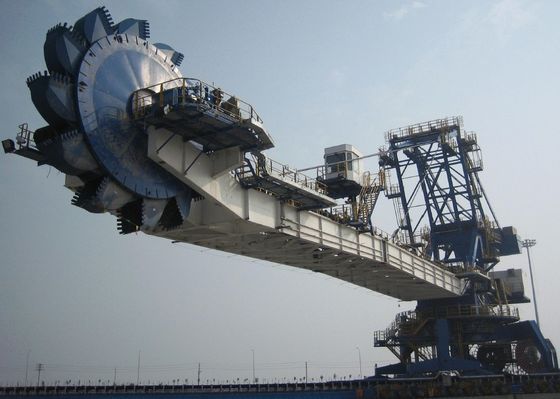

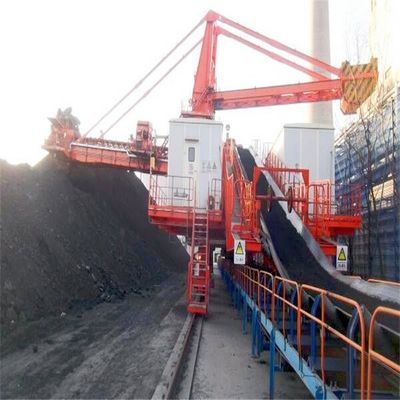

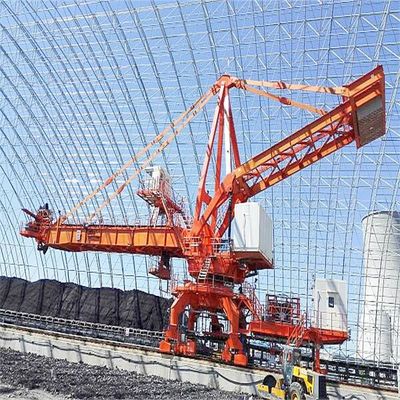

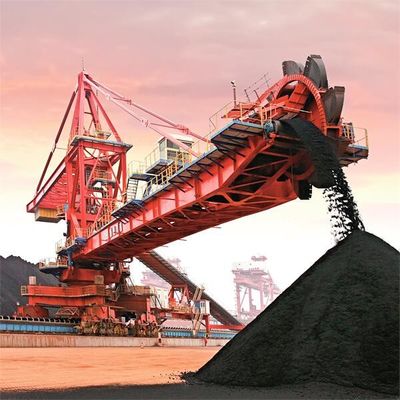

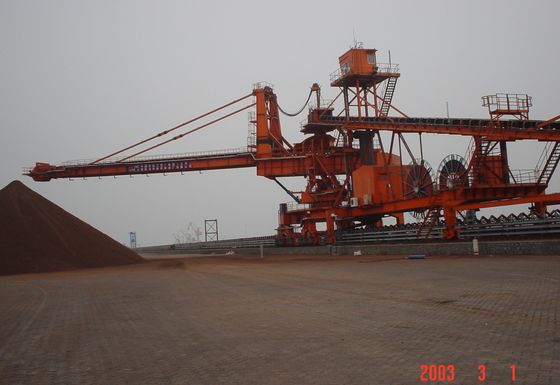

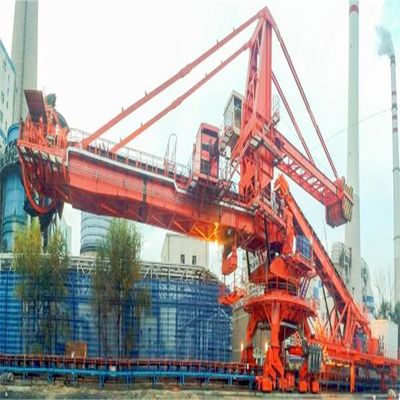

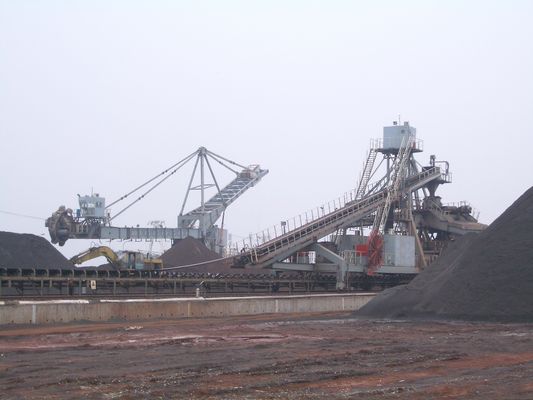

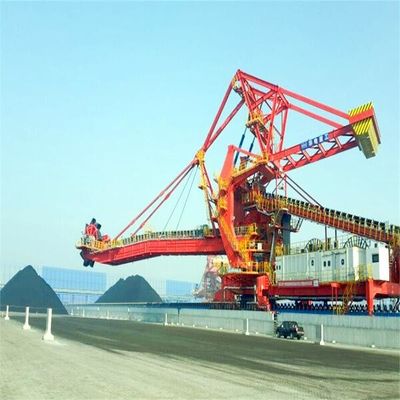

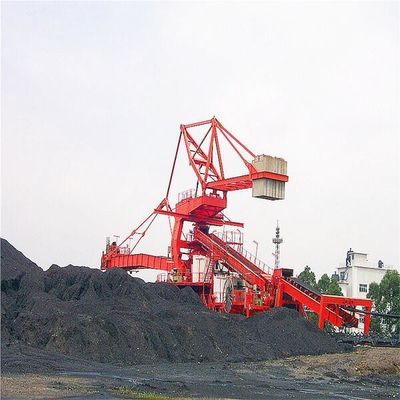

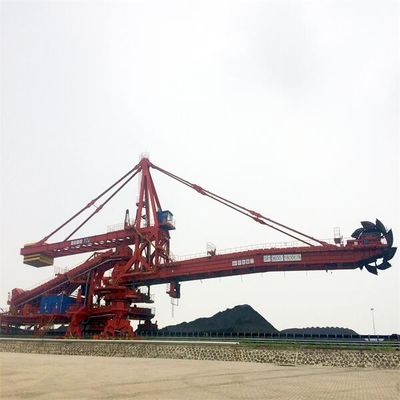

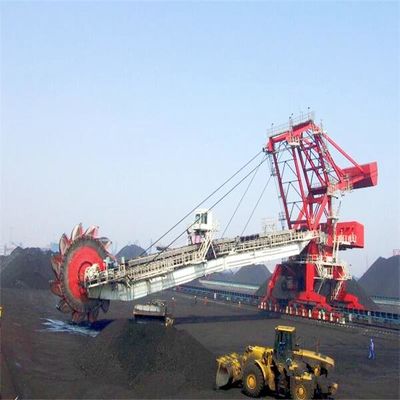

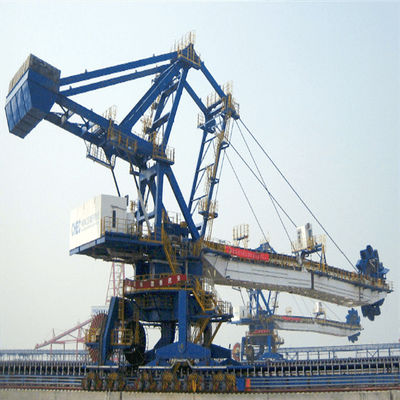

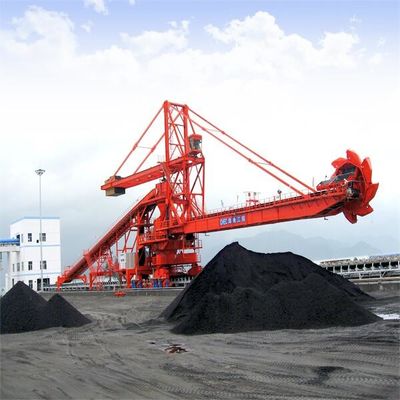

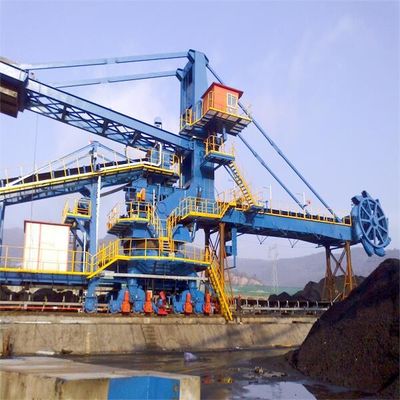

1000tph Capacity stacker and reclaimer System For Power Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Stacking And Reclaiming Equipment | Painting: | INTERNATIONAL |
|---|---|---|---|
| Color: | Yellow | Capacity: | 1000 T/h |
| Steel Work: | Welding | Welding: | According To AWS |
| Benefit: | Low Cost | Material Handling: | Coal |
| High Light: | Power Plant Coal Stacker Reclaimer,1000tph Capacity Coal Reclaimer Stacker |
||
Product Description
1000tph capacity stacking and reclaiming system for Power Plant
1. introduction

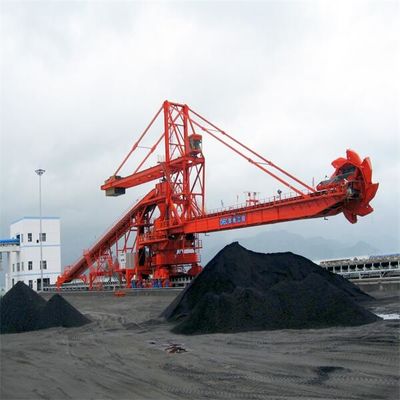

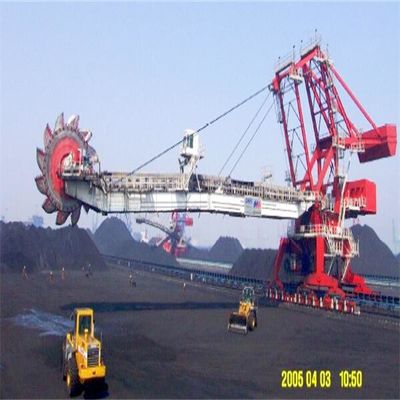

Bucket-wheel stacker reclaimer can realize the functions of continuous stacking, taking, mixing, and storage of bulk particles and block raw materials. It is widely used in the material storage and transportation system of electric power, metallurgy, building materials, chemical industry, port, coal, grain, and other industries. It is common equipment in large and medium-sized industrial enterprises.
Bucket-wheel stacker reclaimer is mainly composed of bucket wheel, slewing, boom raising, walking, cantilever belt conveyor, and metal structure, tail car, auxiliary structure, central hopper, spray dust suppression system, lubrication system, electrical system, power supply device, and so on.
By adjusting the tail car structure (fixed single tripper car, semi lying tripper car, full lying tripper car, cross tripper car, double tripper car, etc.), the bucket wheel stacker reclaimer can realize many functions, such as stacking, reclaiming through, reclaiming turn back, shunting, through and so on, to meet the requirements of different working conditions.
2. Structural type of the whole machine
The medium and small bucket wheel machines adopt the overall balance form, with few movable hinge points and a low failure rate. The central hinge seat of the superstructure is equipped with
lubrication-free joint bearing, with less maintenance workload. For large bucket wheel machines, the movable balance type is mostly adopted, mainly considering that the pitching angle of the cantilever frame is small and the change of the center of gravity relative to the superstructure is small.
Feature
| product tracking | Stacking and Reclaiming system |
| painting | INTERNATIONAL |
| color | yellow |
| capacity | 1000 t/steel |
| steel work | welding |
| welding | according to AWS |
| benefit | low cost |
| material handling | coal |

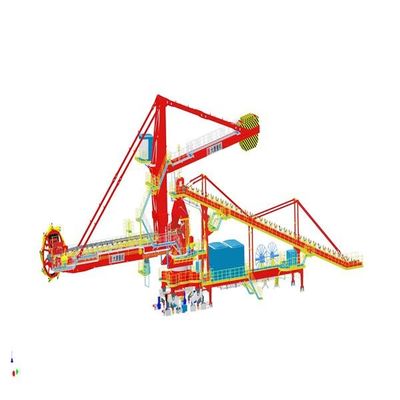

General arrangement (fixed split tripper car)
General arrangement (full function tripper car)
3. Main structural features and introduction
1. grantry frame
2. Three in one reducer with single wheel drive

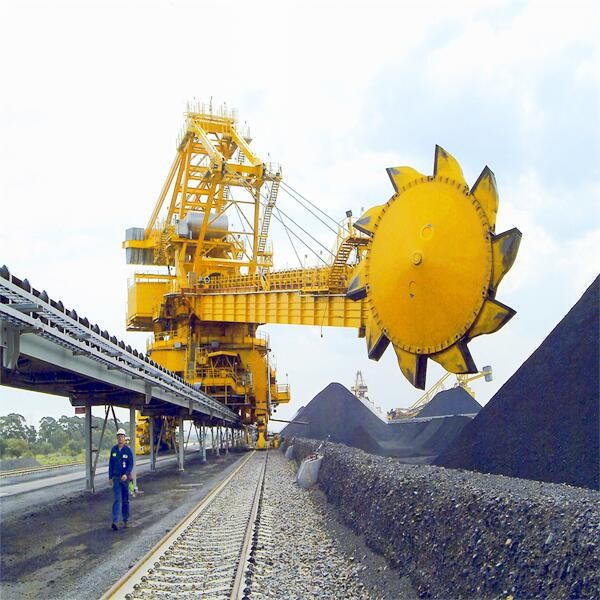

3. Bucket wheel system
4)Luffing mechanism
5)Slewing mechanism
6)Cantilever belt conveyor
7)Upper metal structure
7)Tripper car
8)Cable drum
10)Spray system
