300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement

300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement

Product Details:

Place of Origin: China
Brand Name: SSI
Certification: manufacture certificate
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $1,500,000-5,000,000/ Set
Packaging Details: Wooden case or bare
Delivery Time: 6 months after receipt of advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets / year
Get Best Price Contact Now

Detail Information

Item: Screw Ship Unloader Painting: PPG
Color: Yellow Capacity: 300 T/h
Steel Structure: Carbon Steel Welding: Manual
NDT: UT Benefit: Low Cost
High Light:

Carbon Steel Screw Ship Unloader

,

Vessel Cement Ship Unloading System

,

300 T/H Screw Type Ship Unloader

Product Description

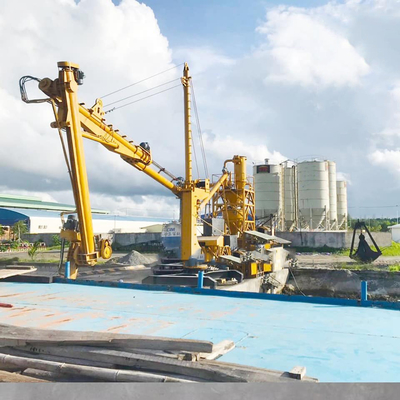

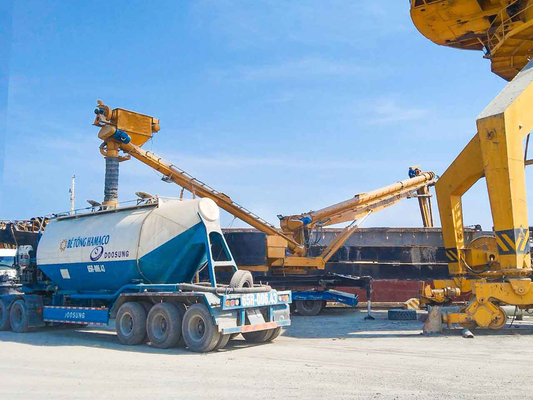

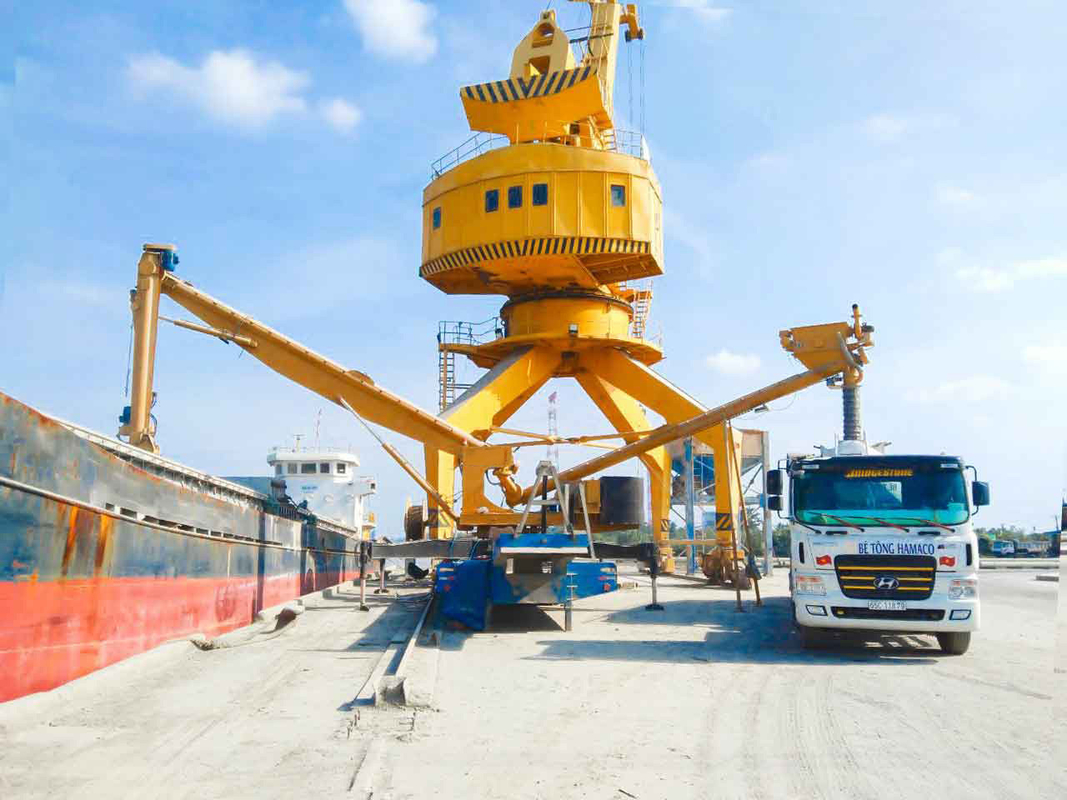

Screw ship unloader for unloading cement or grain from vessel to truck



The screw ship unloader is mainly composed of gantry, turntable, horizontal screw, vertical screw and feeder. Its biggest advantage is that the operation process is carried out in a closed state without dust pollution. Its appearance and weight are smaller than other continuous ship unloaders, but its energy consumption is large. Generally, it is mainly used to unload coal, cement, bulk grain, chemical fertilizer, potassium salt and other bulk materials.





Technical Typical Specification



model LC60 LC100 LC150 LC200 LC300
Rated capacity t/h 60 100 150 200 300
Power source 380v 50hz
Total power kw 53 70 86 121 159
L1 7 8 9 10 11
H1 6 7 8 9 10
Horizontal swing angle ±30°≥@≥40°
Vertical swing angle ±30°≥@≥40°
Swing angle 270°
Overall dimension L*W*H 12.5*3*8.5 13.5*3*9.5 14.5*3.5*10.5 15.5*4.4*11.5 15.5*4.4*11
Base size 1.75*1.75 1.75*1.75 1.85*1.85 1.95*1.95 2.0*2.0



Main component



1.screw conveyor
L1:screw conveyor Out dimeter:325mm,length 3m,wall thickness 8mm,motor 22KW,China Bearing :UCFC: Japan
L2:screw conveyor Out dimeter:355mm,length 5m,wall thickness 10mm,motor 22KW,China Bearing :UCFC Japan
L3:screw conveyor Out dimeter:377mm,length 10m (If on truck,L3:11m),wall thickness 10mm,motor 30KW,China bearing:UCFC Japan
L4:screw conveyor Out dimeter:508mm,length 11m,wall thickness 8mm,motor 37KW,China. Bearing :UCFC Japan
1.2)material reclaiming head Hydraulic motor ,china
Slewing mechanism
1.1)slewing bearing:1 300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement 0
1.2)slewing driver 300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement 1
1.3)Connetor

L1,L2:1,

L2,L3:1,

L3 and frame:1

Frame and L4:2

Hydraulic components
Hydraulic cylinder , hydraulic pump, solenoid valve, (Taiwan China) hydraulic motor 11kw,(Taiwan China) 300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement 2

Electrical cabinet

Size :1000x1000x250mm

power:180KW

300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement 3
Wireless Remote control ,(Taiwan China) 300 T/H Carbon Steel Screw Ship Unloader For Vessel Unloading Cement 4
