Screw ship unloader applied at seaport terminal
Product Details:
Place of Origin: | China |
Brand Name: | SSI |
Certification: | manufacture certificate |
Model Number: | Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | US $1,500,000-5,000,000/ Set |
Packaging Details: | Wooden case or bare |
Delivery Time: | 6 months after receipt of advance payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets / year |
Detail Information |
|||
Product: | Screw Ship Unloader | Painting: | Jotun |
---|---|---|---|
Color: | Red | Capacity: | 500 T/h-1500t/h |
Material: | Carbon Steel | Component: | International Brand |
Application: | Seaport | Price: | Cost Effective |
High Light: | ship unloading,screw ship unloader,ship unloader |
Product Description
Screw ship unloader applied at seaport terminal
The compact screw ship unloader is specifically designed for unloading bulk materials which is applied to seaport, it`s widely applied to handle grain, cement, and some other bulk materials. This kind of ship unloaders are mainly used for unloading varies of vessls.
One of the most important advantage of the screw ship unloader is that the convey system of the ship unloader is by using total enclosed screw conveyor, so there will be no dust to emission when unloading the vessel. It`s environment firendly.
The screw ship unloader is mainly composed of gantry, turntable, horizontal screw, vertical screw and feeder. Its biggest advantage is that the operation process is carried out in a closed state without dust pollution. Its appearance and weight are smaller than other continuous ship unloaders, but its energy consumption is large. Generally, it is mainly used to unload coal, cement, bulk grain, chemical fertilizer, potassium salt and other bulk materials.
Technical Typical Specification
model | SSUL500 | SSUL800 | SSUL1000 | SSUL1200 | SSUL1500 |
Rated capacity t/h | 500 | 800 | 1000 | 1200 | 1500 |
Power source | 380v 50hz | ||||
Total power kw | 700 | 800 | 900 | 1000 | 1200 |
L1 | 19 | 19 | 19 | 19 | 20 |
H1 | 9.3 | 9.3 | 9.3 | 9.5 | 9.5 |
Horizontal swing angle | ±30°≥@≥40° | ||||
Vertical swing angle | ±30°≥@≥40° | ||||
Swing angle | 110° | ||||

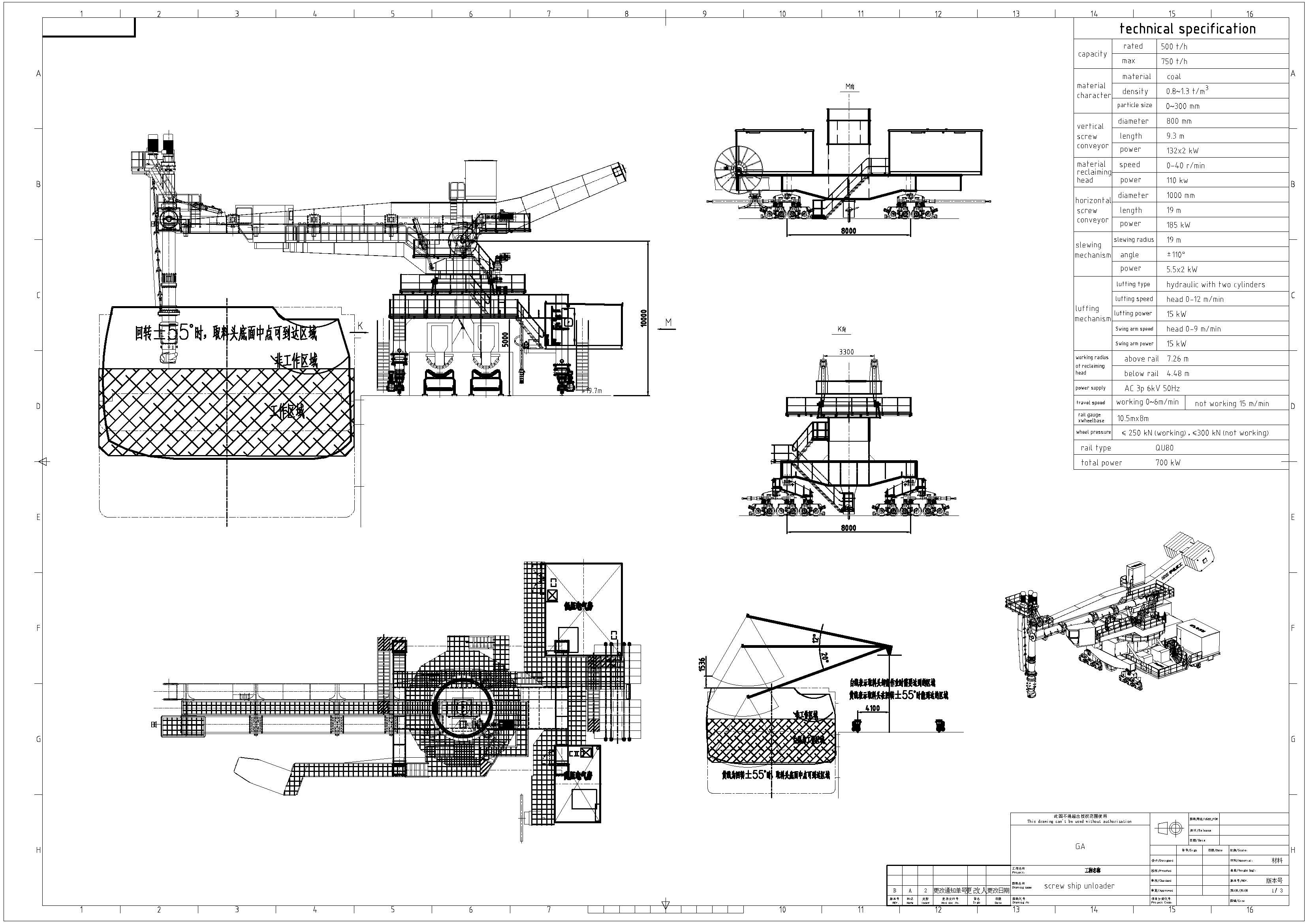

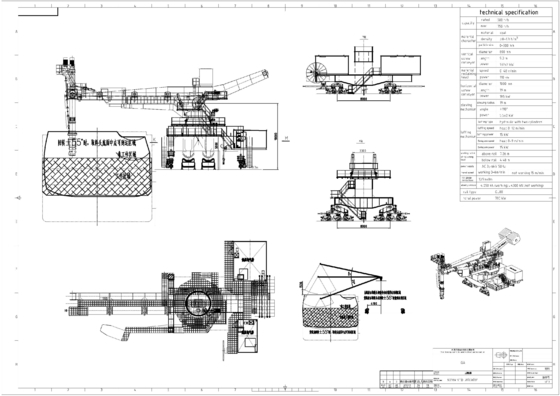

Overall dimension L*W*H | see drawing | see drawing | see drawing | see drawing | see drawing |
Base size | based on client | based on client | based on client | based on client | based on client |

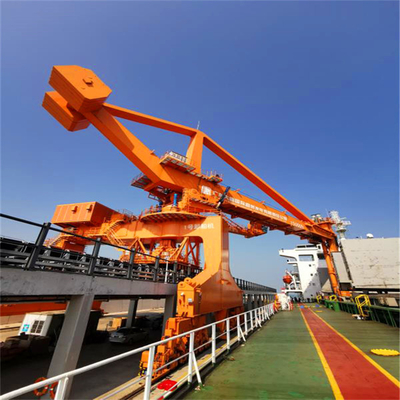

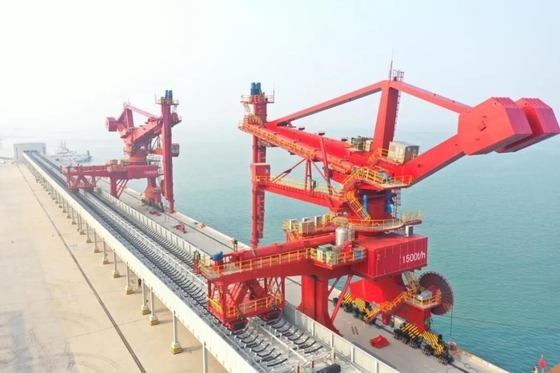

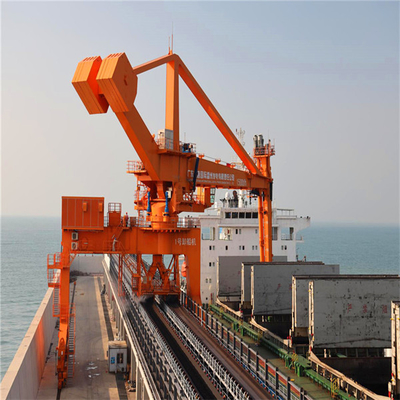

Some cases photos
