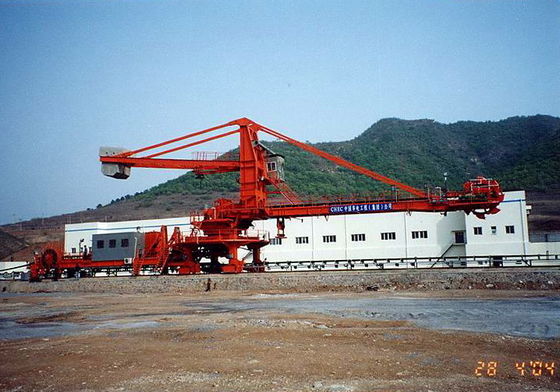

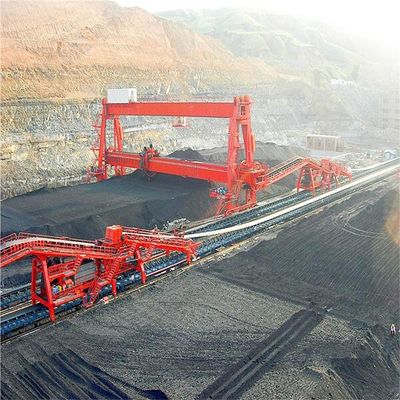

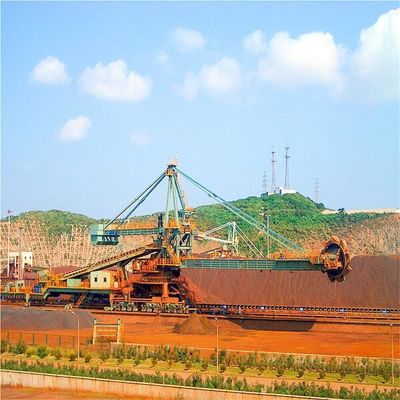

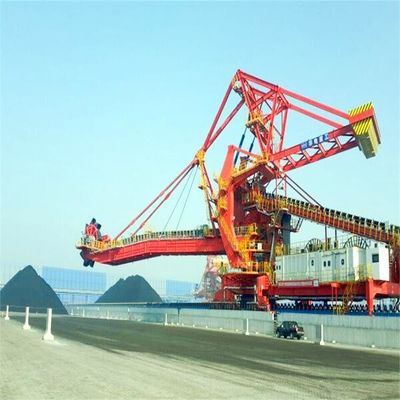

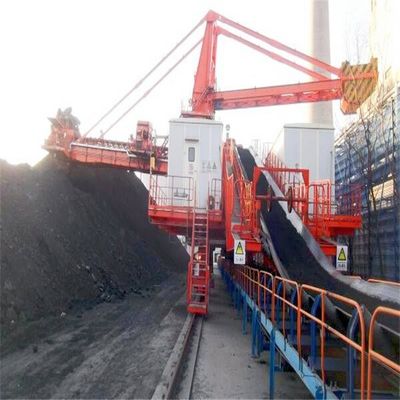

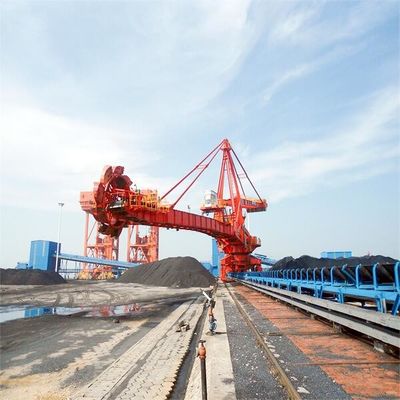

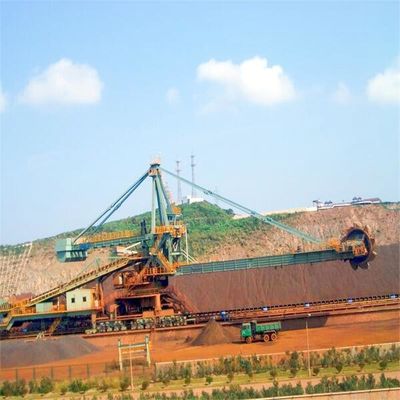

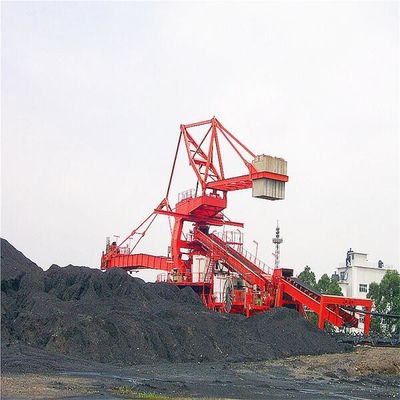

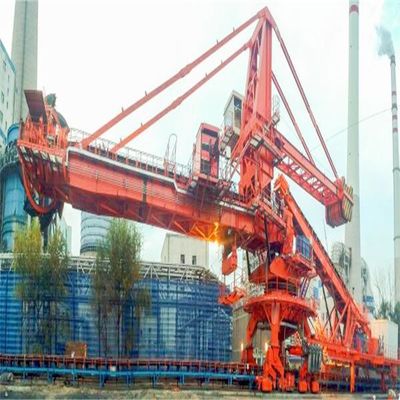

Stockyard Stacker And Reclaimer For Coal Power Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Stacker And Reclaimer | Painting: | PPG |
|---|---|---|---|
| Color: | Orange | Capacity: | 4500 T/h |
| Location: | Coal Power Plant | Application: | Stockyard |
| Component: | Top Brand | Material: | Carbon Steel |
| High Light: | Stockyard Boom Conveyor Stacker Reclaimer,Coal Power Plant Stacker And Reclaimer |
||
Product Description

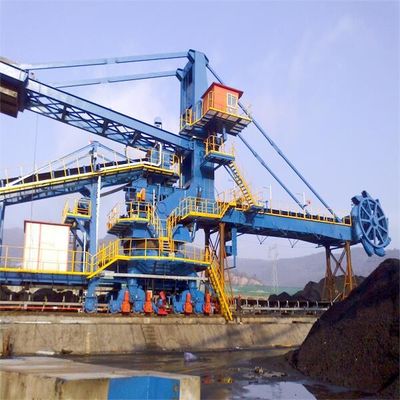

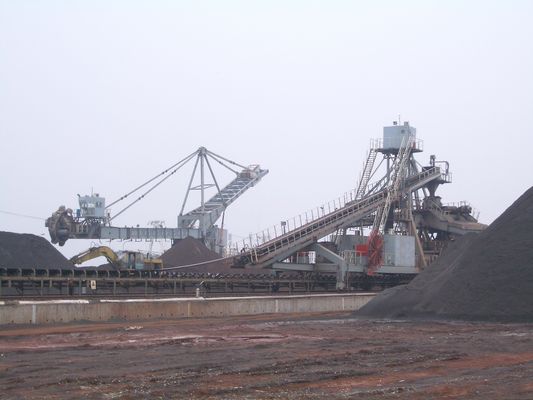

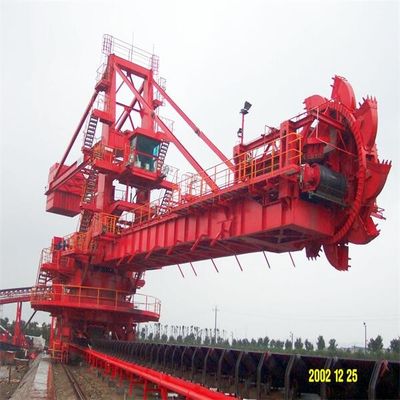

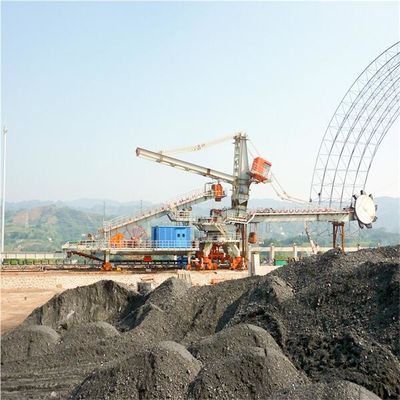

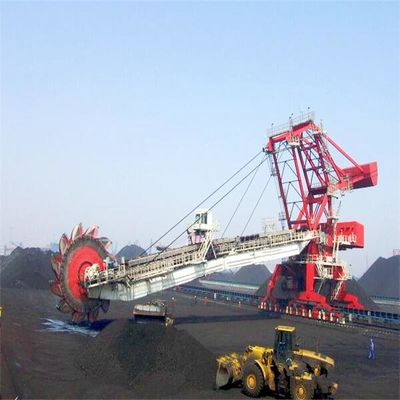

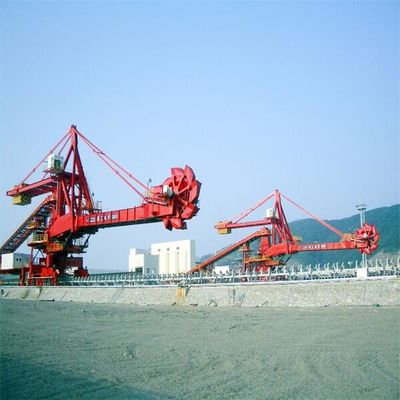

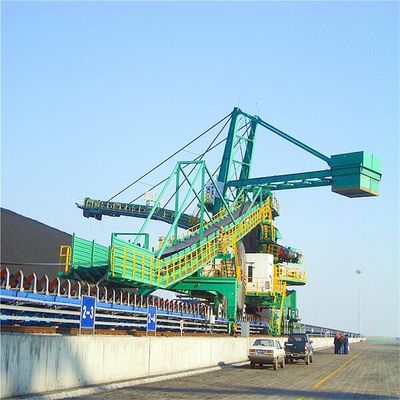

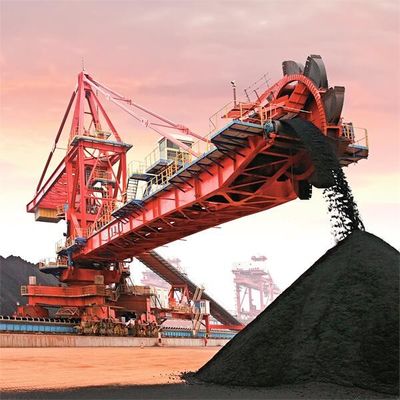

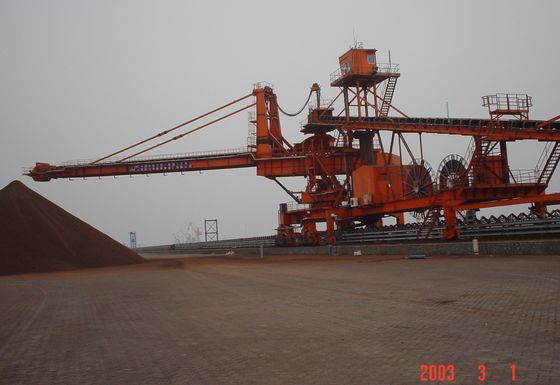

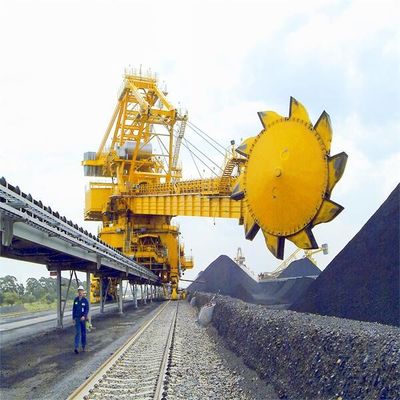

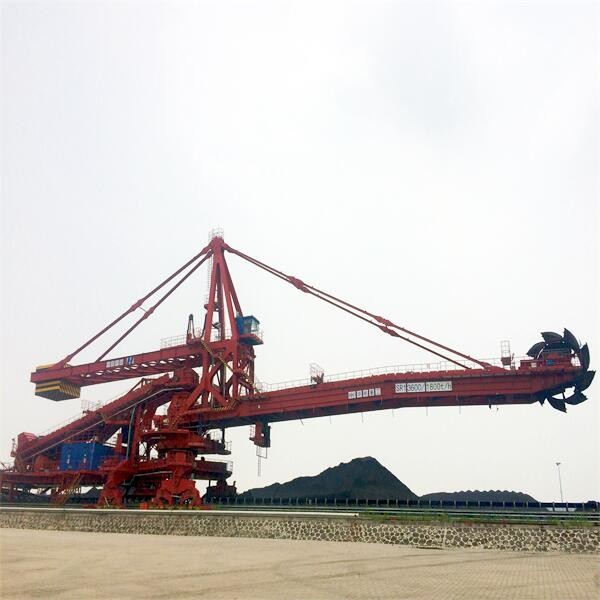

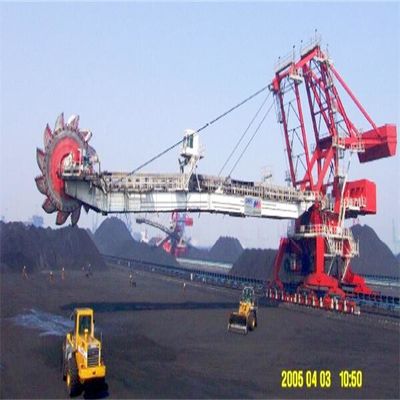

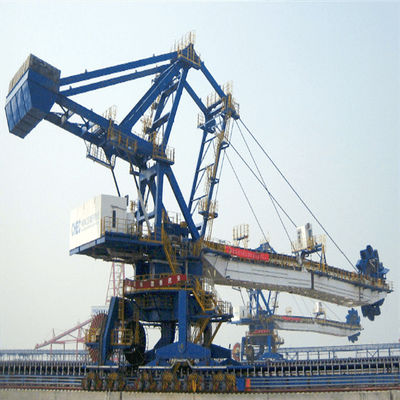

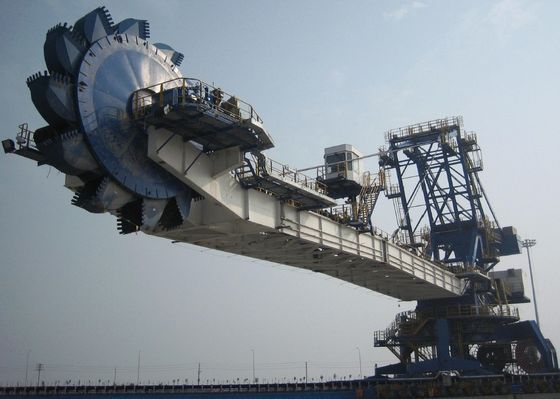

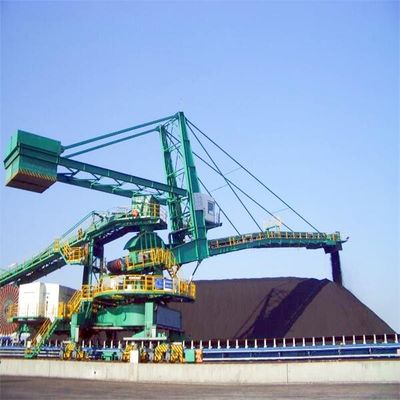

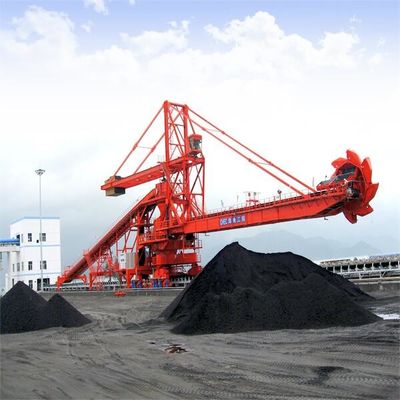

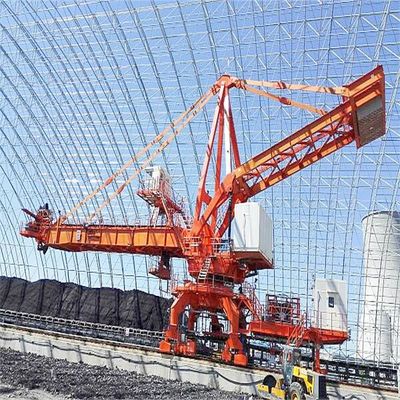

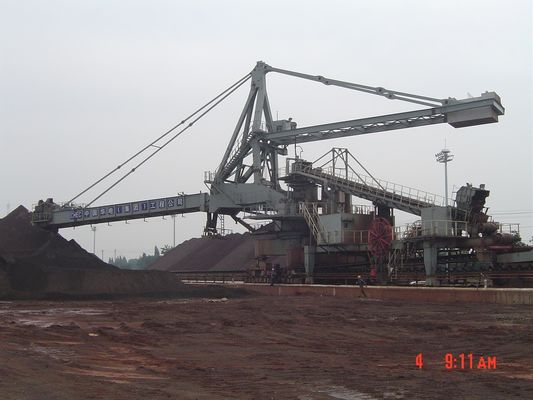

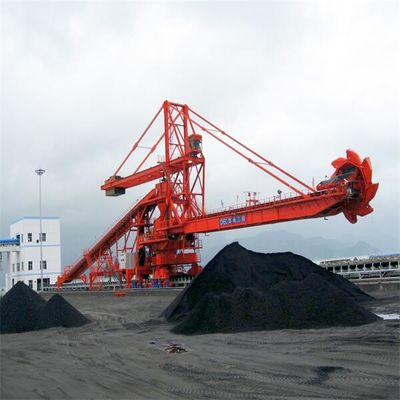

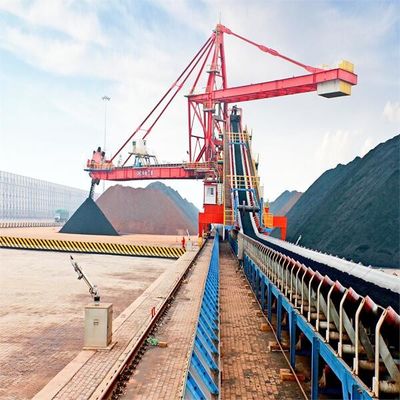

Introduction of Bucket Wheel Stacker Reclaimer
Bucket-wheel stacker reclaimer can perform the functions of continuous stacking, reclaiming, blending and storage of bulk particles and block raw materials. It is widely used in the material storage and transportation system of electric power, metallurgy, building materials, chemical industry, port, coal, grain and other industries. It is a common equipment in large and medium-sized industrial enterprises.

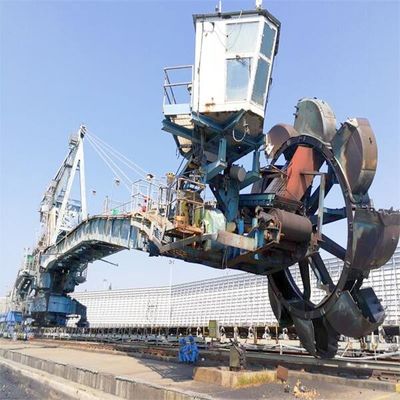

Bucket-wheel stacker reclaimer is mainly composed of bucket wheel, slewing, boom raising, walking, cantilever belt conveyor, and metal structure, tail car, auxiliary structure, central hopper, spray dust suppression system, lubrication system, electrical system, power supply device and so on.

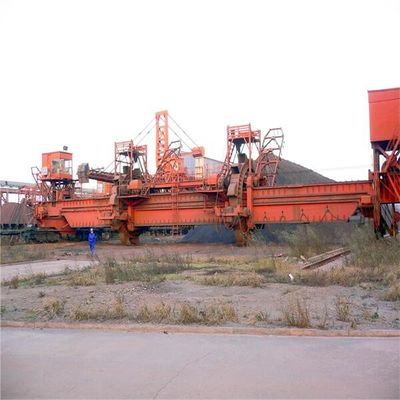

By adjusting the tail car structure (fixed single tail car, semi lying tail car, full lying tail car, cross tail car, double tail car, etc.), the bucket wheel stacker reclaimer can realize many functions, such as stacking, reclaiming through, reclaiming turn back, shunting, through and so on, so as to meet the requirements of different working conditions.
The medium and small bucket wheel machines adopt the overall balance form, with few movable hinge points and low failure rate. The central hinge seat of the superstructure is equipped with lubrication free joint bearing, with less maintenance workload. For large bucket wheel machines, the movable balance type is mostly adopted, mainly considering that the pitching angle of the cantilever frame is small and the change of the center of gravity relative to the superstructure is small.
Feature
| product | Stacker and Reclaimer |
| painting | PPG |
| color | orange |
| capacity | 4500 t/h |
| location | coal power plant |
| application | stockyard |
| component | top brand |
| material | carbon steel |

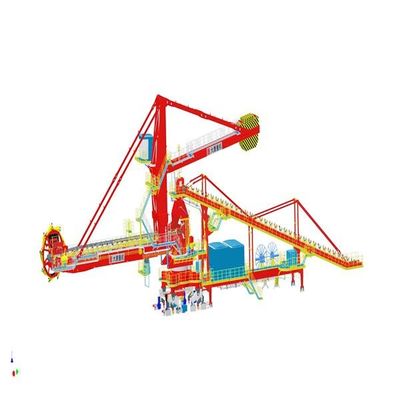

GA (fixed split tripper car)
GA (full function tripper car)
Requirements for quotation
The combined stacker and reclaimer can operate as stacker or as claimer, and the machine will be designed based on our client`s specifications, so we need to understand every detail of their specific applications, so technical discussion is essential.
