Heavy Duty Portal Type Scraper Reclaimers 4000 t/h
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Scraper Reclaimer | Capacity: | 4000 T/h |
|---|---|---|---|
| Painting: | HEMPEL | Color: | Silver |
| Welding: | GMAW | Sand Blasting: | SA2.5 |
| Price: | Low Cost | Material: | High Quality Steel |
| High Light: | Gantry Scraper Reclaimer,Heavy Duty Portal Scraper Reclaimer,4000 T/H Side Scraper Reclaimer |
||
Product Description

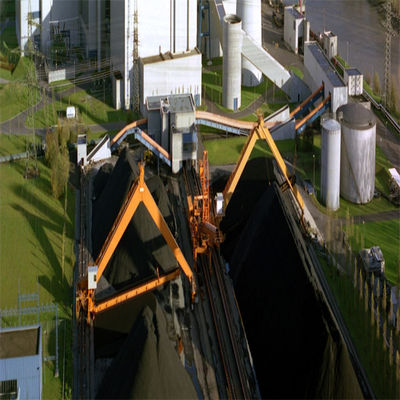

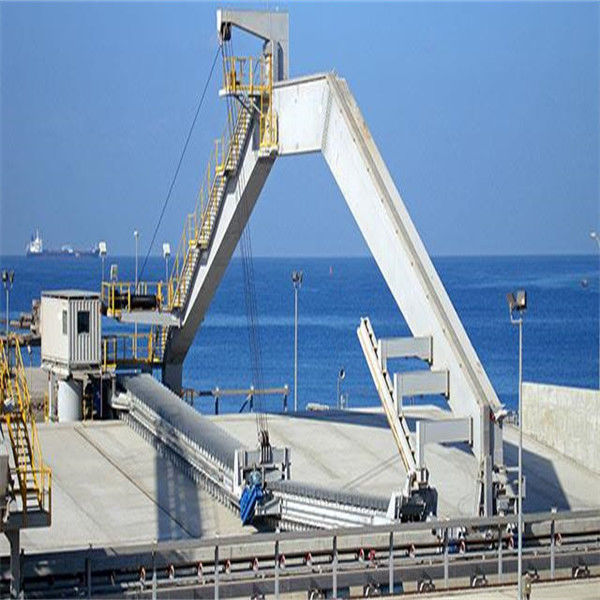

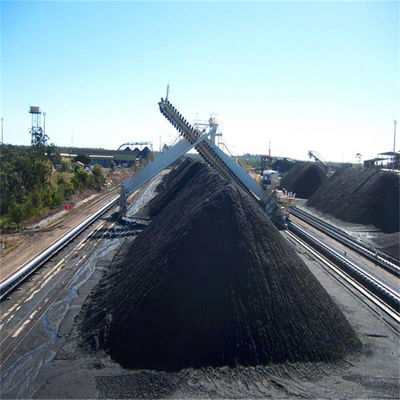

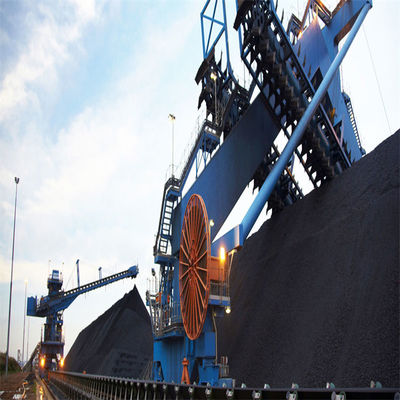

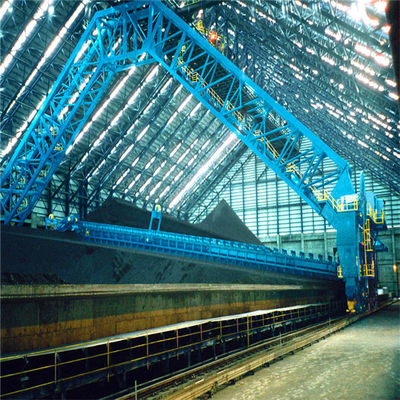

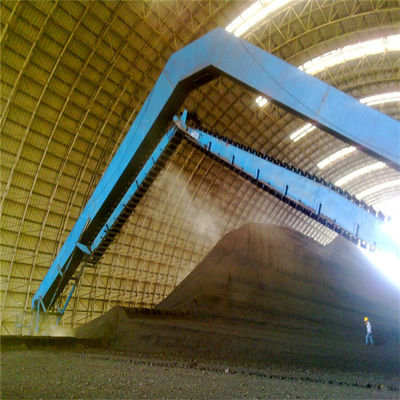

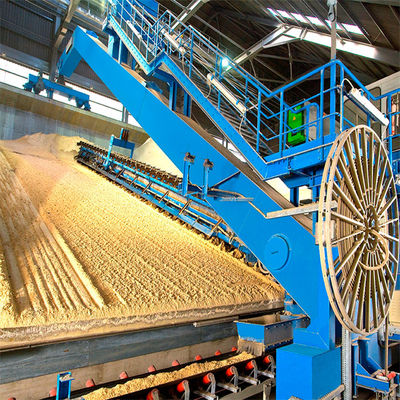

Gantry Type Scraper Reclaimers Gantry Type Scraper Reclaimer for Longitudinal Stockyard
applications
The gantry scraper reclaimer is mainly used for scraping sandstone, ore, sandstone, coke and other bulk materials in the stockyard of large enterprises such as water conservancy companies, steel companies, coal coking companies and cement companies. It`s suitable for stacking material pile flexibly and not strictly in forming material pile in longitudinal stockyard.
feature
The gantry scraper reclaimer has the characteristics of compact design, high capacity performance, environmental friendly and automatic operation. The equipment is mainly used in the closed longitudinal material stockyard.
composition
The gantry scraper reclaimer is mainly composed of traveling mechanism, gantry, scraper conveying system, luffing system, electrical control room, etc
Working principle
The gantry scraper reclaimer carries out reclaiming operation on the rail of the stockyard. The reclaimer unloads the materials into the feeding chute through the scraper reclaiming system and convey them to the discharge belt conveyor for transfer. After each layer of material is reclaimed by the reclaiming arm, lower the corresponding angle according to the preset command, and take out the stack layer by layer at the set reclaiming running speed
Specification of gantry scraper reclaimer
| description | parameter | unit |
| material | Coal, ore, etc | |
| density | 0.8~2.3 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| reclaiming capacity | 200~2000 | t/h |
| rail span | 20~50 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material
- Stockyard information
- Process flow chart
- Power supply
- Communication and control requirements
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
