Longitudinal Stockyard Bridge Type Bucket Wheel Reclaimer For Coal Fired Power Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Bridge Type Bucket Wheel Reclaimer | Material: | Carbon Steel |
|---|---|---|---|
| Painting: | According To ISO12944 | Color: | Advise By User |
| Character: | Durable | Advantage: | High Performance |
| Benefit: | Low Cost | Capacity: | 3200 T/h |
| High Light: | Bridge Type Bucket Wheel Reclaimer,Longitudinal Stockyard Bucket Wheel Reclaimer,Coal Fired Bucket Reclaimer |
||
Product Description
Longitudinal Stockyard Bridge Type Bucket Wheel Reclaimer Stacking and Reclaiming System for Longitudinal Stockyard

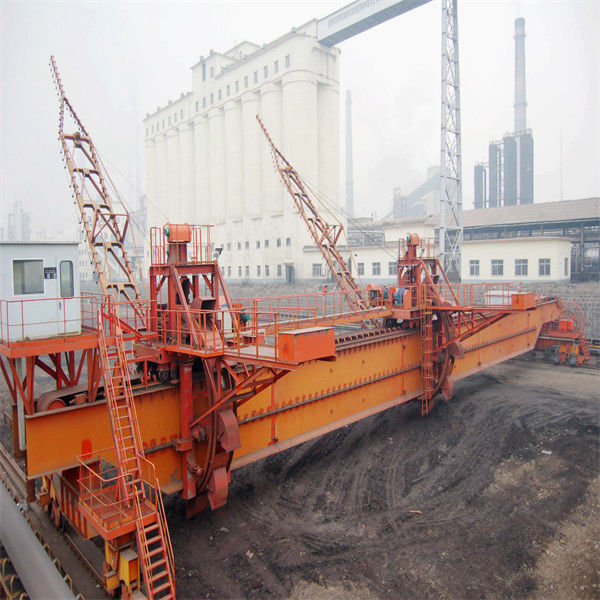

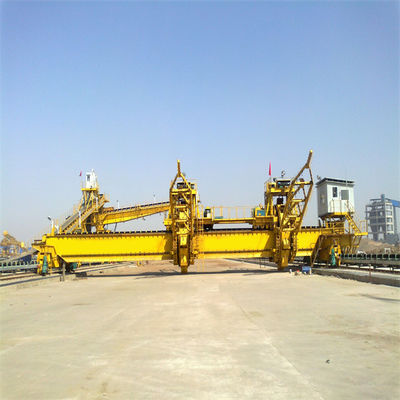

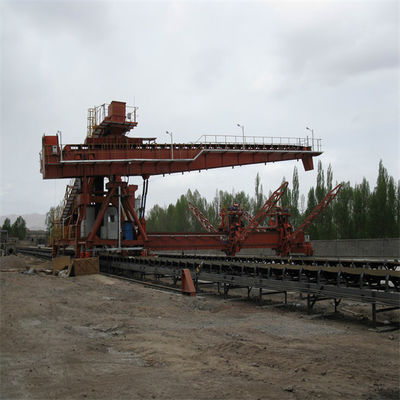

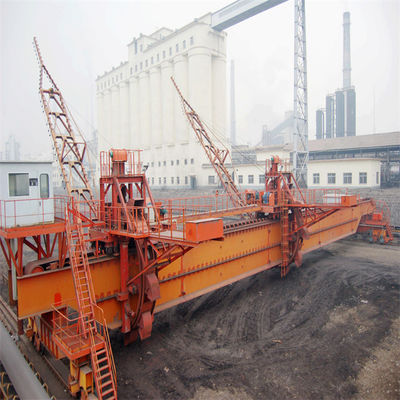

Bridge type bucket wheel reclaimer
Bridge type combined stacker reclaimers with a bucket-wheel boom is mainly applied in medium or large or very large material flows capacity are to be stacked and then later reclaimed by the same machine.
Applications
Longitudinal stockyard bridge bucket wheel reclaimer is widely used in raw material stockyards of steel industries to satisfy the process requirements of blending and reclaiming bulk materials such as coal, mineral powder, and fine ore.
feature
Longitudinal stockyard bridge bucket wheel reclaimer is designed as compact size, high performance, environment friendly, is an advanced equipment with the advance process, efficiency blending, and automatic operation.
composition
The bridge-type bucket wheel reclaimer is mainly composed of a traveling mechanism, scraping system, bucket wheel reclaimer mechanism, beam, electrical control room, etc.
Working principle
The bucket wheel mechanism of the bridge bucket wheel reclaimer runs back and forth along the length of the bridge. On the cross-section of the material pile, the reclaimer of the bucket wheel device reclaiming materials at the different material piles for the first time, and the bucket wheel device rotating around the main beam unloads the materials taken down at the low level into the receiving belt conveyor arranged in the main beam at the high level for the second time, When the reclaimed materials are unloaded to the ground belt conveyor of the system, the third blending of materials is completed. In this way, the process of continuous reclaiming and unloading complete the reclaiming work.
Specification of bucket wheel reclaimer
| description | parameter | unit |
| material | coal,iron ore powder etc | |
| density | 0.8~2.3 | t/m3 |
| granularity | <100 | mm |
| moisture | <5 | % |
| reclaiming capacity | 50~3000 | t/h |
| rail span | 16~50 | m |
NOTICES
The customer shall provide the following information when placing order:
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
