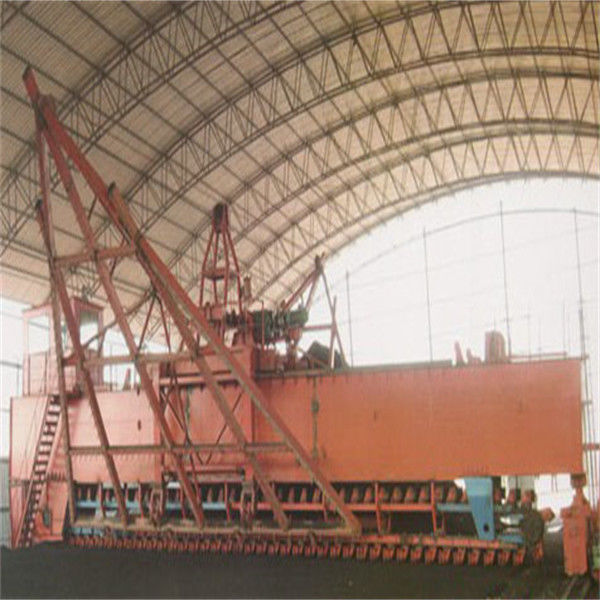

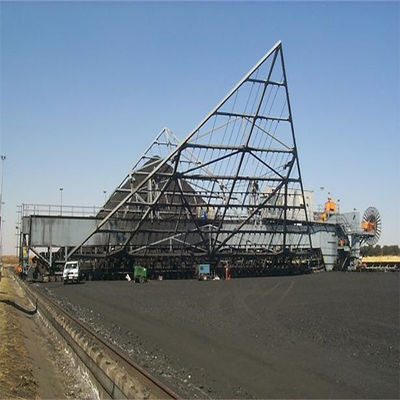

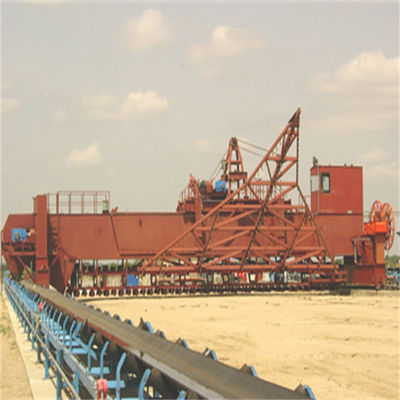

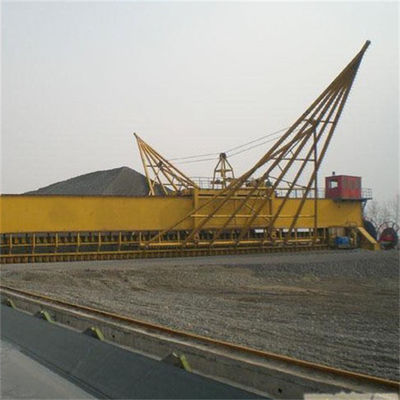

Longitudinal Stockyard Bridge Type Scraper Reclaimer For Coal Handling
Product Details:
Place of Origin: | China |
Brand Name: | SSI-ZHIGO |
Certification: | manufacture certificate |
Model Number: | Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | US $500,000-1,000,000/ Set |
Packaging Details: | Wooden case or bare |
Delivery Time: | 6 months after receipt of advance payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 40 sets / year |
Detail Information |
|||
Product: | Scraper Reclaimer | Painting: | PPG |
---|---|---|---|
Color: | Orange | Capacity: | 2200 T/h |
Component: | Top Brand | Steel Work: | Welding |
Benefit: | Low Maintenance | Material: | High Quality Steel |
High Light: | Coal Handling Bridge Type Reclaimer,Longitudinal Stockyard Coal Stacker Reclaimer,Bridge Type Scraper Reclaimer |
Product Description
Longitudinal Stockyard Bridge Scraper Reclaimer
Applications
Longitudinal stockyard bridge scraper reclaimer is widely used in steel, building materials, and energy industries. It is mainly used for pre-blending of raw materials with high performance, such as limestone, raw coal, clay in cement plants, and raw coal in coal power plants.
feature
Longitudinal stockyard bridge scraper reclaimer is designed as compact size, high performance, environment friendly, is an advanced equipment with the advance process, efficiency blending, and automatic operation.
composition
The bridge scraper reclaimer is mainly composed of a traveling mechanism, scraper system, scraper conveying system, beam, electrical control system, etc
Working principle
The bridge scraper reclaimer starts from the tip of the pile in the center of the stockyard. The scraper system on both sides of the reclaimer moves back and forth along the reclaimer bridge, and the materials on the whole reclaiming surface are scraped to the bottom of the stack through the scraper teeth on the scraper. With the circular movement of the scraper system along the bridge, the materials falling to the bottom of the stack evenly enter the continuous scraper, are taken away by the scraper, and unloaded onto the belt conveyor. Driven by the traveling drive system, the reclaimer runs along the rail to the other end of the pile to complete the whole blending and reclaiming process.
The benefit of the bridge-type scraper reclaimer is as follows, robust design, High efficiency, and low operating costs.
Specification of bridge scraper reclaimer
description | parameter | unit |
material | limestone,coal etc | |
density | 0.8~1.5 | t/m3 |
granularity | <70 | mm |
moisture | <2 | % |
reclaiming capacity | 200~2000 | t/h |
rail span | 16~50 | m |
NOTICES
The customer shall provide the following information when placing order
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
Photos of our factory
