Gantry Type Bucket Wheel Stacker Reclaimer For Low Space Longitudinal Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Stacker Reclaimer | Painting: | PPG |
|---|---|---|---|
| Color: | Red | Capacity: | 1800 T/h |
| Character: | Gantry Type | Advantage: | Low Price |
| Benefit: | High Performance | Application: | Stockyard |
| High Light: | Gantry Type Bucket Wheel Stacker Reclaimer,Longitudinal Stockyard Portal Stacker Reclaimer |
||
Product Description

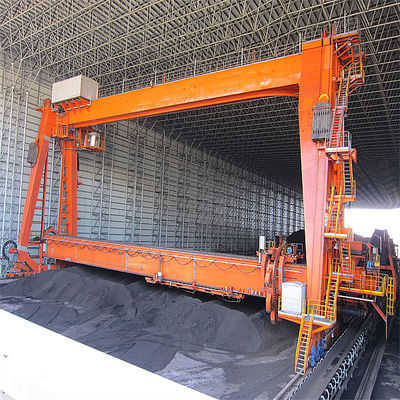

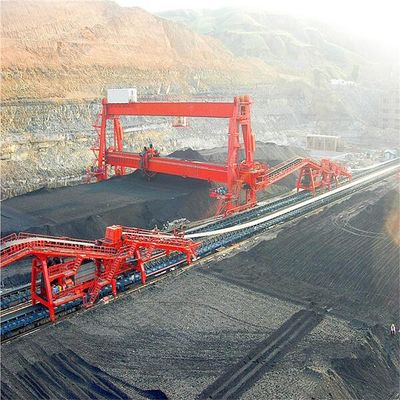

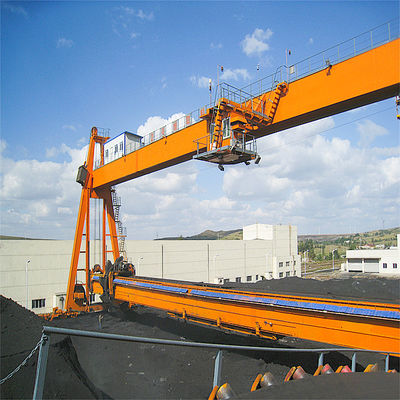

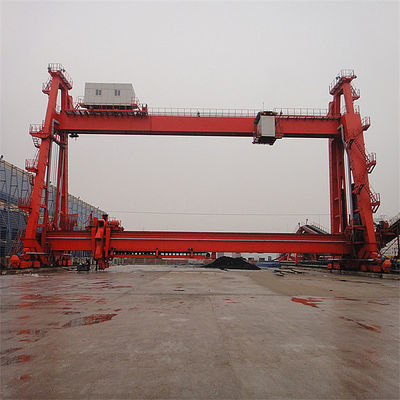

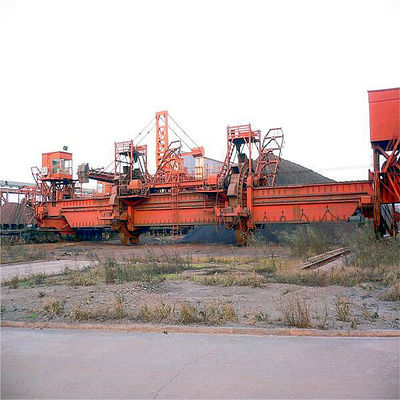

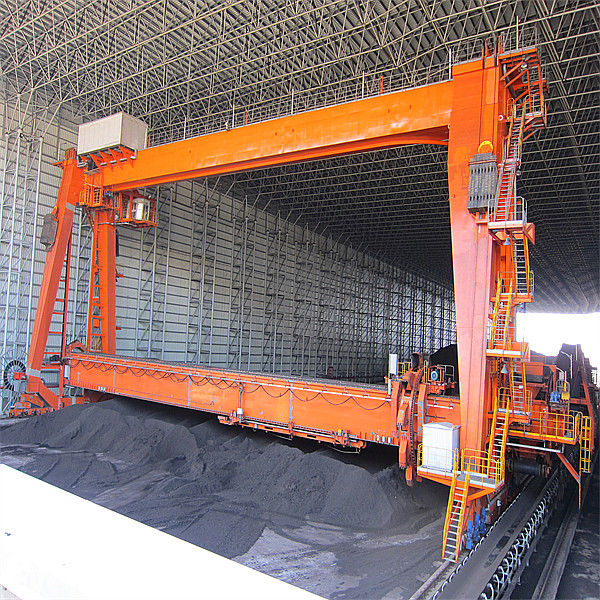

Gantry type bucket wheel stacker reclaimer for low space longitudinal stockyard
The gantry bucket wheel stacker and reclaimer is mainly used in the Longitudinal stockyard to stack and reclaim the materials in the stockyard, unload them to the reclaiming belt conveyor and stacking belt conveyor, and then transport them out through the ground belt conveyor to complete the reclaiming and stacking work; The stacking and reclaiming belt conveyor can be reversed. During stacking and reclaiming, the bulk materials of the ground belt conveyor are unloaded to the stacking and reclaiming belt conveyor by the rear part, and the materials are stacked to the stockpile by the mobile belt conveyor as supposed by the traveling mechanism and Luffing mechanism. The gantry-type bucket wheel stacker and reclaimer will be designed according to the customer`s requirement, which means we need to understand every detail of the project, so technical discussion is essential.
specification of gantry bucket wheel stacker and reclaimer
| description | parameter | unit |
| bulk material | coal,coke,ore | |
| density | 0.6~2.2 | t/m3 |
| granularity | <300 | mm |
| moisture | <2 | % |
| stacking capacity | 200~3000 | t/h |
| reclaiming Capacity | 100~2000 | t/h |
| rail span | 20~60 | m |
NOTICES
The customer shall provide the following information when placing order
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
Photos of our factory
