1500 Tph Capacity Stockyard Stacker And Reclaimer For Coal Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Description: | Stacker And Reclaimer | Output: | 1500 T/h |
|---|---|---|---|
| Painting: | PPG | Color: | Advise By Buyer |
| Character: | Circular | Advantage: | High Efficient |
| Steel Work: | High Quality Steel | Material Handling: | Building Material |
| High Light: | Stockyard Stacker And Reclaimer,1500 Tph Coal Stacker Reclaimer,Coal Handling Stacker Cum Reclaimer |
||
Product Description

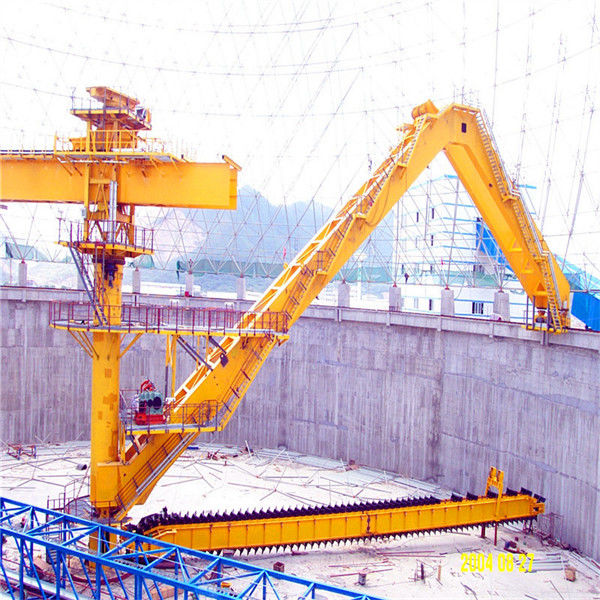

1500 tph capacity stockyard stacker and reclaimer for coal handling
Introduction

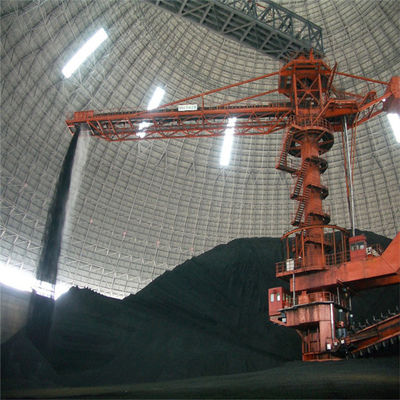

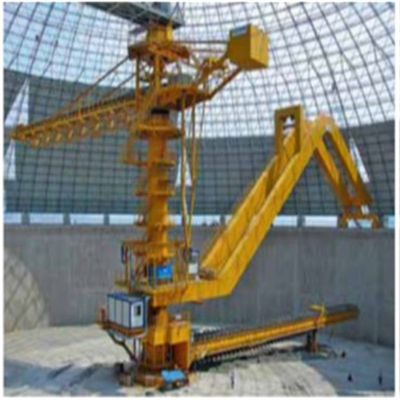

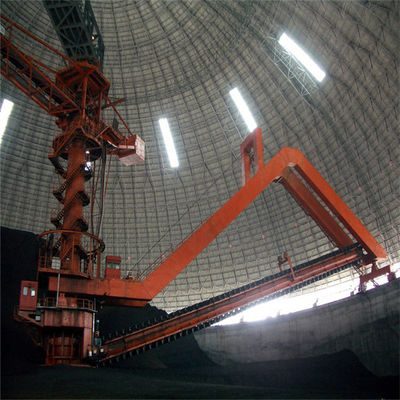

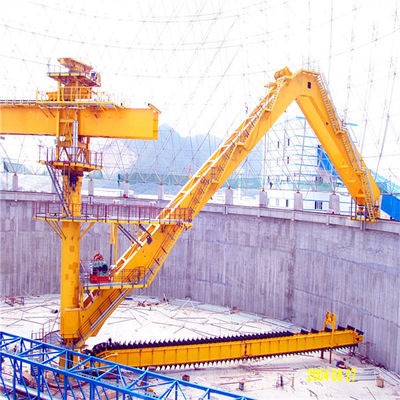

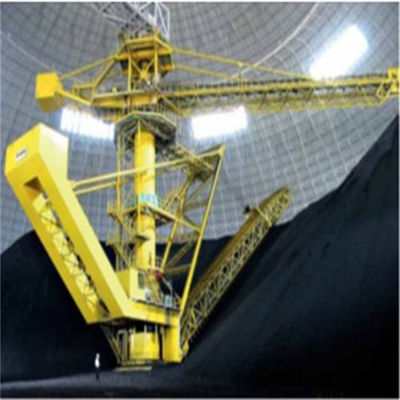

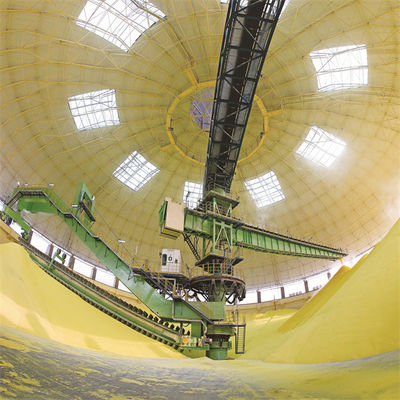

Circular gantry scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port and other industries, and is mostly used to stack limestone or coal and other bulk materials. The cantilever of the stacker is equipped with a belt conveyor, which passes through the steel structure grid roof of the circular stockyard from the belt conveyor on the trestle, and the input materials complete the ring conical stacking through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work via three linkinge processes: traveling system, luffing system and scraper system. The scraper reclaimer scrapes the materials into the conical hopper under the central column along the slope of the pile and outputs the materials through the vibrating feeder and underground belt conveyor.
Feature
| project | stacking and reclaiming equipment |
| painting | HEMPEL |
| color | by user |
| capacity | 1800 t/h |
| character | heavy duty |
| advantage | low maintenance |
| benefit | low cost |
| application | coal handling |

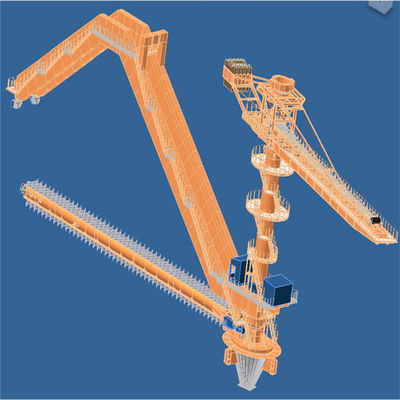

Main components of circular stacker and reclaimer
1. Stacking steel structure, cantilever belt conveyor
2. King column and slewing mechanism of circular stacker and reclaimer
4. Reclaimer luffing mechanism:
5. Scraper reclaimer
6. Hydraulic system
7. Lubrication system
8. Water spray dust controlled system
9. specification of gantry bucket wheel stacker and reclaimer
Applications

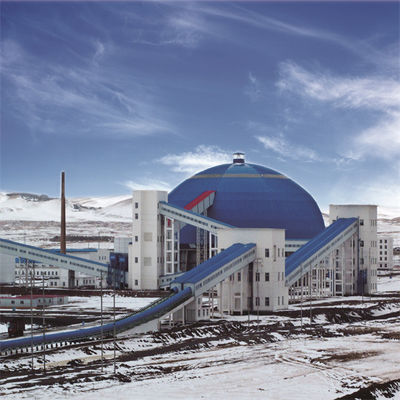

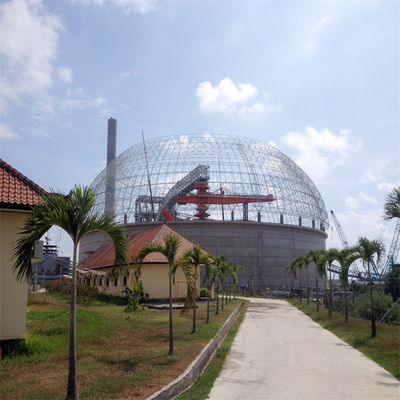

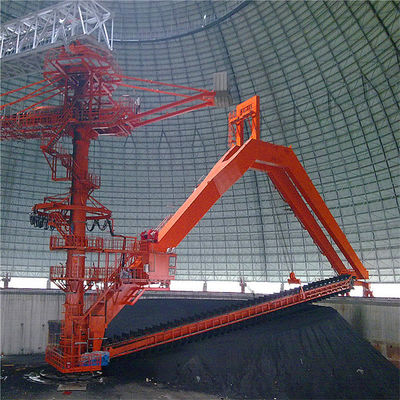

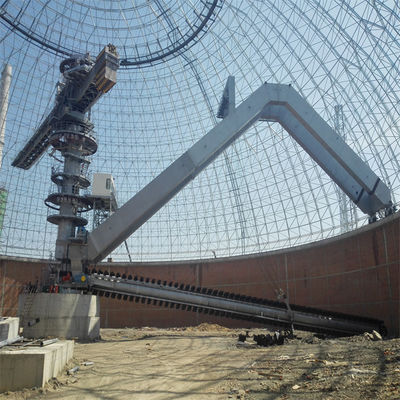

case1

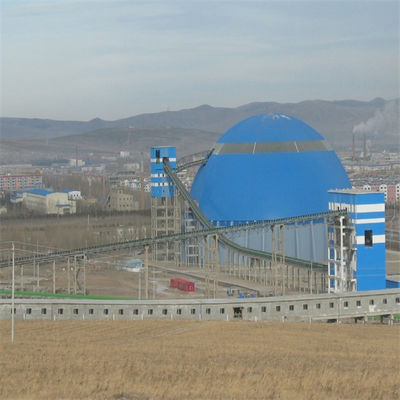

case2

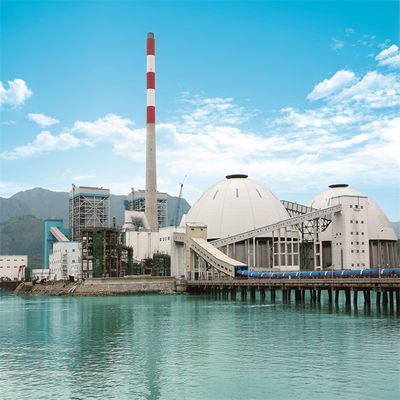

case3
