Circular Stockyard Stacker And Reclaimer For Coal
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Description: | Stacking And Reclaiming Equipment | Capacity: | 1600 T/h |
|---|---|---|---|
| Painting: | PPG | Color: | Orange |
| Steel Work: | High Quality Steel | Sand Blasting: | SA2.5 |
| Price: | Reasonable | Application: | Stockyard |
| High Light: | Coal Stacker Reclaimer Equipment,Circular Fam Stacker Reclaimer,Stockyard Stacker Reclaimer |
||
Product Description
Circular stockyard stacking and reclaiming system for coal stacking and reclaiming

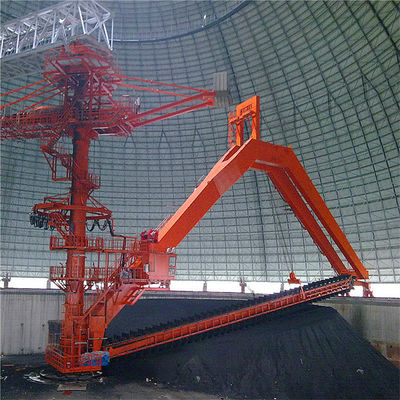

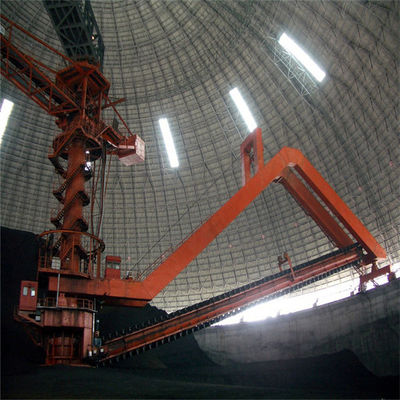

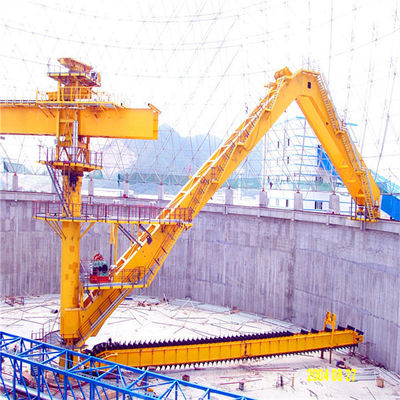

Circular gantry scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port, and other industries, and is mostly used to stack limestone or coal and other bulk materials. The cantilever of the stacker is equipped with a belt conveyor, which passes through the steel structure grid roof of the circular stockyard from the belt conveyor on the trestle, and the input materials complete the ring conical stacking through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work via three linking processes: traveling system, luffing system, and scraper system. The scraper reclaimer scrapes the materials into the conical hopper under the central column along the slope of the pile and outputs the materials through the vibrating feeder and underground belt conveyor.
Feature
| description stacking | Stacking and Reclaiming Equipment |
| painting | PPG |
| color | orange |
| capacity | 1600 t/character heavy |
| character | heavy duty steel |
| steel work | robust design |
| benefit | low maintenance |
| material handling | coal or limestone |
