Stacker And Reclaimer System For Coal Stockyard 2200 t/h
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Stacking And Reclaiming System | Capacity: | 2200 T/h |
|---|---|---|---|
| Painting: | Jotun | Color: | Yellow |
| Advantage: | Robust Design | Benefit: | Low Maintenance |
| High Light: | Coal Stacker And Reclaimer,Stockyard Coal Reclaimer Stacker,2200 T/H Bucket Wheel Stacker Reclaimer |
||
Product Description
Stacking and reclaiming system at stockyard to stacking and reclaiming coal

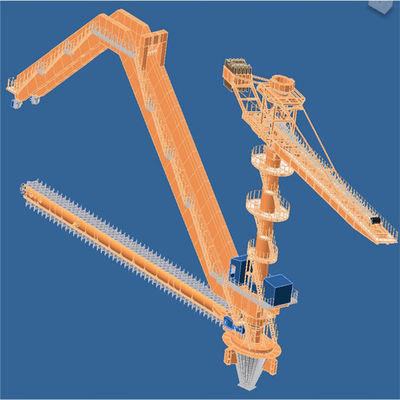

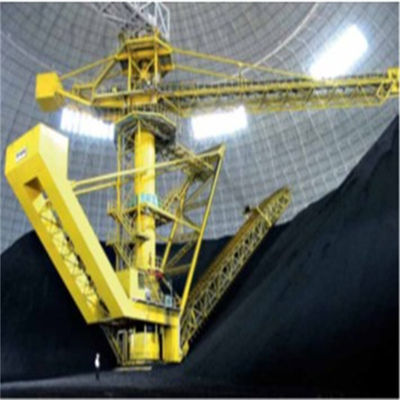

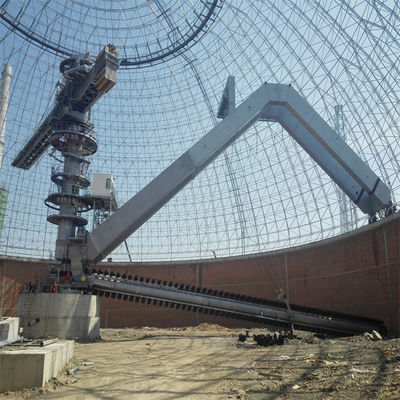

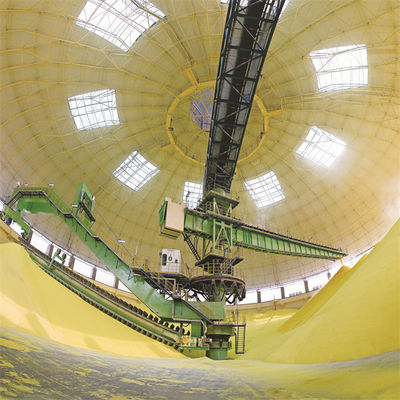

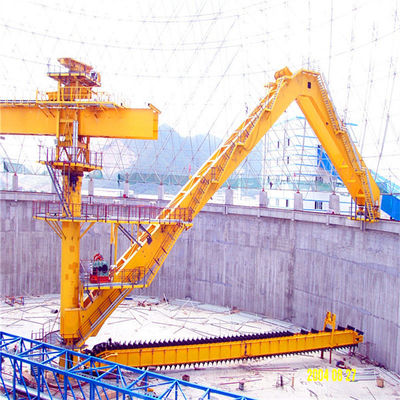

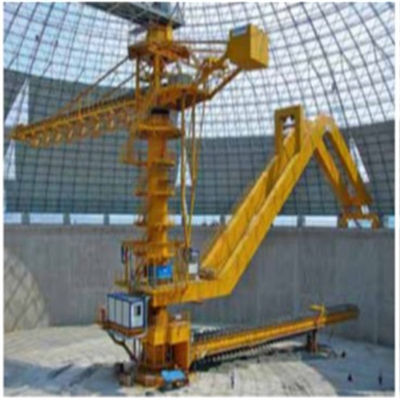

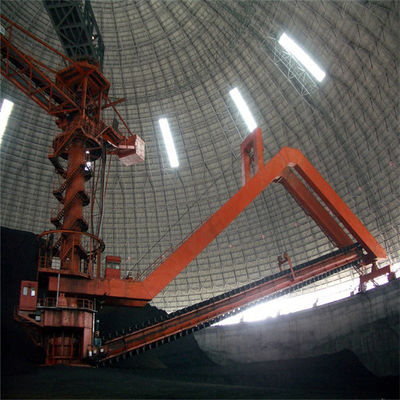

Circular gantry scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port and other industries, and is mostly used to stack limestone or coal and other bulk materials. The cantilever of the stacker is equipped with a belt conveyor, which passes through the steel structure grid roof of the circular stockyard from the belt conveyor on the trestle, and the input materials complete the ring conical stacking through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work via three linkinge processes: traveling system, luffing system and scraper system. The scraper reclaimer scrapes the materials into the conical hopper under the central column along the slope of the pile, and outputs the materials through the vibrating feeder and underground belt conveyor.
Feature
| product | Stacking and Reclaiming System |
| painting | Jotun |
| color | yellow |
| capacity | 2200 t/h |
| character | heavy duty |
| advantage | robust design |
| benefit | low cost |
| material handling | coal or limestone |

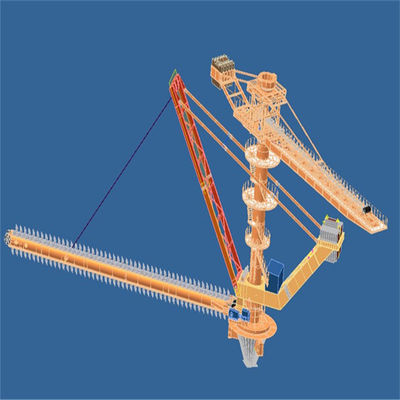

Some pictures of main components of circular stacker and reclaimer

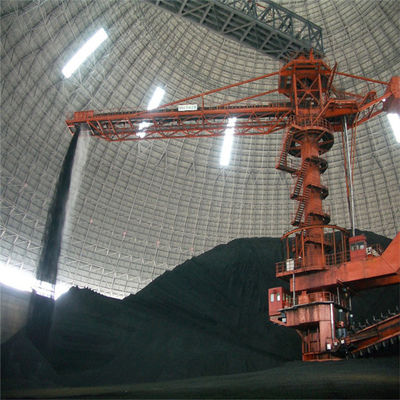

1. Stacking steel structure, cantilever belt conveyor
2.King column and slewing mechanism of circular stacker and reclaimer
3.Gantry stacker
4.Reclaimer luffing mechanism:
5.Scraper reclaimer
6.Hydraulic system
7. Lubrication system
8.Water spray dust controlled system
