Heavy Duty Slewing Cantilever Stacker Used To Stack Coal In Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Capacity: | 1000 T/h | Product: | Slewing Cantilever Stacker |
|---|---|---|---|
| Painting: | INTERNATIONAL | Color: | Grey |
| Motor: | European Brand | Steel Work: | Welding |
| Price: | Cost Effective | DFT: | 175um |
| High Light: | Heavy Duty Bridge Type Scraper Reclaimer,Stack Coal Mechanical Handling Equipment,Stockyard Slewing Cantilever Stacker |
||
Product Description
Slewing Cantilever Stacker Heavy duty Slewing Cantilever Stacker Slewing Cantilever Stacking equipment for stockyard
The SSI slewing cantilever stacker are mainly designed according to clients technical specification. The slewing cantilever stacker is mainly used for stacking limestone, sandstone, raw coal and other bulk materials. It is mainly used for storing and blending materials in stockyard. It is mainly applicated for metallurgy, mining, building materials, chemical industry, cement and other industries.
Feature
The slewing cantilever stacker has the advantages of simple structure, reliable performance, easy operation, convenient maintenance and safe operation.
The slewing cantilever stacker can stacking operation to different material pile, and to stack a variety of materials, meet different stacking processes requirement. The slewing cantilever stacker was design as compact, electric-hydraulic driven with automatic operating function without man power.

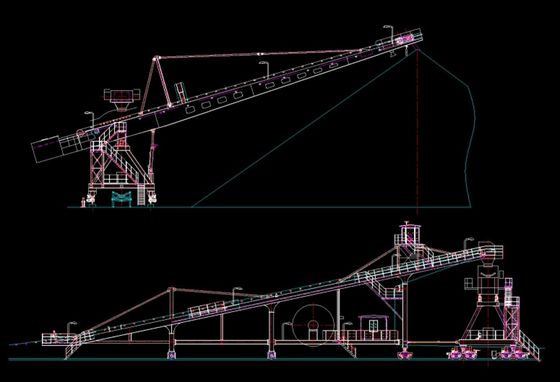

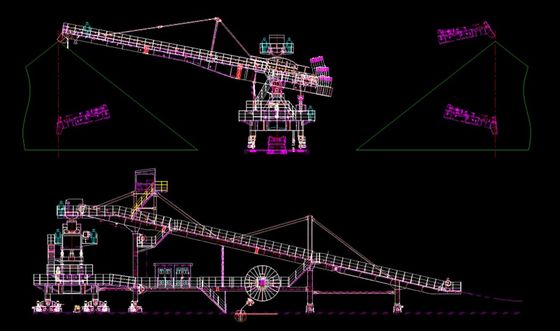

Specification of Slewing Cantilever Stacker
| description | parameter | unit |
| material | ore,sandstone,raw material | |
| density | 0.8~2.2 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 100~5000 | t/h |
| rail span | 4~8 | m |
| slewing radius | 15~40 | m |
| slewing angle | ±100 | ° |
| width of belt | 500~1800 | mm |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
Applications

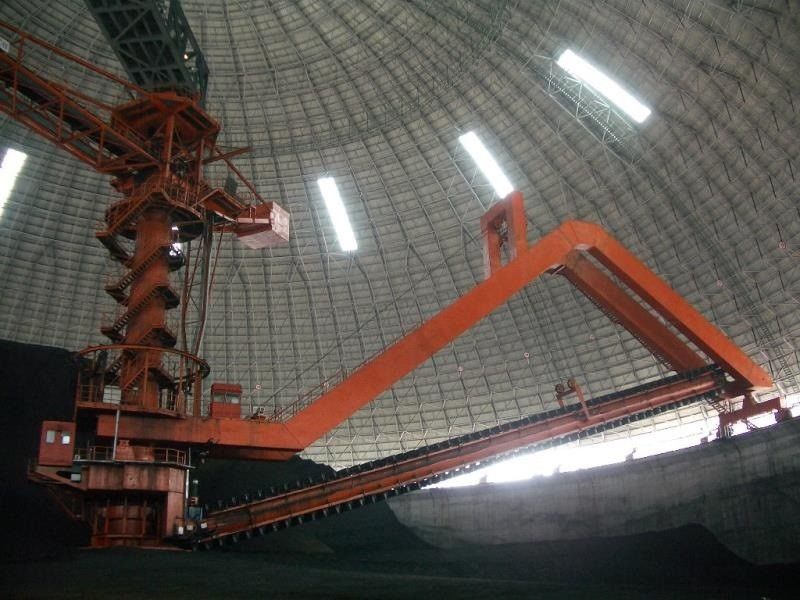

Case1

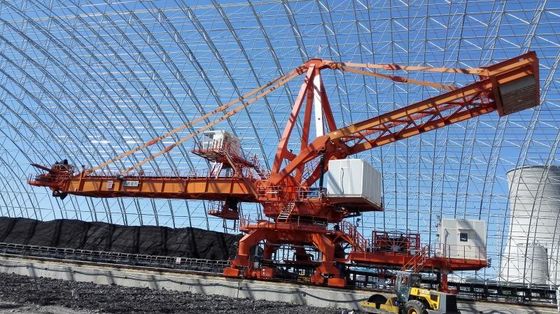

Case2
Photos of our factory
