2200 t/h Heavy Duty Side Cantilever Stacker For Stockyard Stacking Material
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Capacity: | 2200 T/h | Product: | Stacker |
|---|---|---|---|
| Painting: | HEMPEL | Color: | Blue |
| Motor: | Seimens | Steel Structure: | SA2.5 |
| Price: | Cost Effective | DFT: | 190um |
| High Light: | Longitudinal stockyard blending and storage,Side type Cantilever Stacker,Bulk Material Handling Equipment Stacking |
||
Product Description
Heavy-duty side cantilever stacker for stacking material in stockyard
The side cantilever stacker is mainly used for stacking limestone, sandstone, raw coal, and other bulk materials. It is mainly used for storing and blending materials in the stockyard. It is mainly applied for metallurgy, mining, building materials, chemical industry, cement, and other industries.
The side cantilever stacker has the advantages of simple structure, reliable performance, easy operation, convenient maintenance, and safe operation.
The side cantilever is used to stack material in the stockyard in different shapes according to the specific requirements, and to stack, a variety of materials, meet different stacking processes requirements. The side cantilever stacker was designed as compact, electric-hydraulic driven with automatic operating function without manpower.
Specification of Side Cantilever Stacker
| description | parameter | unit |
| material | limestone,sandstone,raw coke | |
| density | 0.8~2.2 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 100~5000 | t/h |
| rail span | 4~8 | m |
| length of cantilever | 15~40 | m |
| width of belt | 500~1800 | mm |
NOTICES
The customer shall provide the following information when placing order
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
Applications

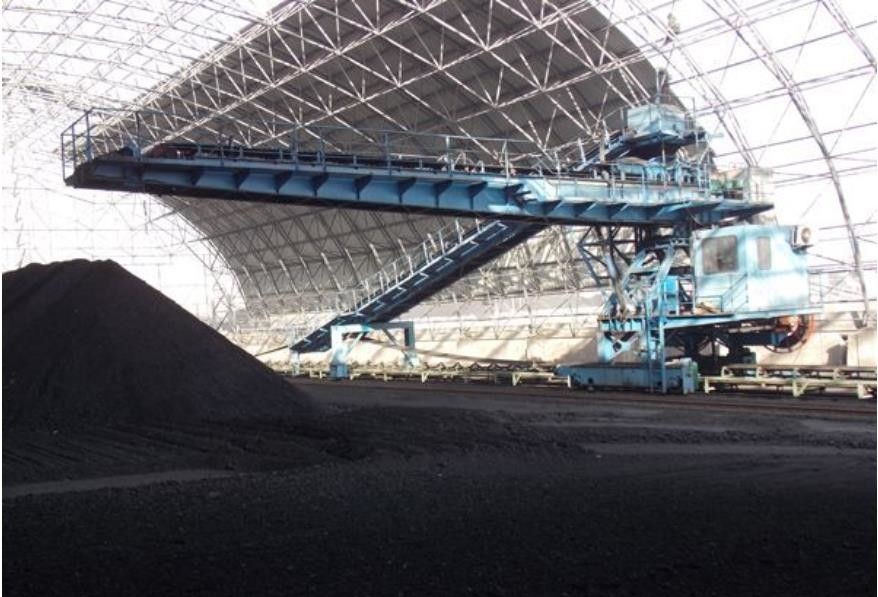

Case1
Case2
Photos of our factory
