Heavy Duty Mobile Radial Telescopic Stackers For Bulk Materials Conveying
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | nude |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Capacity: | 1500 T/h | Product: | Radial Telescopic Stacker |
|---|---|---|---|
| Painting: | Jotun | Color: | Grey |
| Motor: | SEW | Steel Work: | SA2.5 |
| Character: | Durable | Material: | Carbon Steel |
| High Light: | Mobile Radial Telescopic Stackers,specially designed telescopic stackers,Radial Sacker for Bulk Material Handling |
||
Product Description

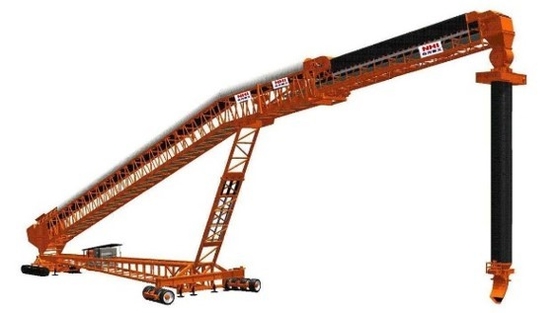

Mobile radial telescopic stackers for bulk materials conveying
A flexible articulation system process for metallurgical raw materials, chemical yards, bulk material terminals, construction aggregates, fuel yards, etc. Through a long-distance tape machine, the front end is connected to the pick-up system and the back end to the stockpile system. The mobile radial telescopic bulk material handling system is one cost-efficient and effective way of stockpiling material in the stockyard.
Mobile Radial Telescopic Belt conveyor Stacker is a new type of belt machine developed for transporting coal, which can connect coal mining machines and various equipment, and is an important linkage to ensure the automatic production operation of coal mining, and can also be used in various terminals and freight transportation, which can be used in mining, coal, metallurgy and other industries to realize long time and long-distance transportation by technical means, and according to the different sites and distances of different coal mines, it can be assembled into a professional horizontal conveyor. Multiple units can be assembled into a professional horizontal or inclined system to meet different sites and different equipment arrangements.
Specification of mobile radial telescopic stacker
| Model | Capacity(t/h) | Belt width(mm) | Speed(m) | Max distance(m) | Power of Motor(kw) |
Diameter of pulley(mm)
|
Diameter of roller(mm) | Max incline angle(°) |
| DTS80/40/2*40S | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTS80/40/2*55S | 400 | 800 | 2 | 800 | 2*55 | 500 | 89 | +18 |
| DTL80/40/90S | 400 | 800 | 2 | 1000 | 90 | 630 | 108 | +18 |
| DTL80/40/2*40 | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTL80/40/2*55 | 400 | 800 | 2.5 | 800 | 2*40 | 630 | 89 | +18 |
| DTL100/63/2*75S | 630 | 1000 | 1.9 | 1000 | 2*75 | 630 | 108 | +18 |
| DTL100/80/160S | 800 | 1000 | 2.5 | 1000 | 160 | 630 | 108 | +18 |
| DTL100/80/2*160S | 800 | 1000 | 2.5 | 1500 | 2*160 | 630 | 108 | +18 |
| DTL120/120/2*160S | 1200 | 1200 | 2.5 | 1000 | 2*160 | 800 | 133/159 | ± 5 |
| DTL120/120/2*200S | 1200 | 1200 | 2.5 | 1000 | 2*200 | 800 | 133/159 | +18 |
| DTL120/150/2*160S | 1500 | 1200 | 3.15 | 1500 | 2*200 | 800 | 133/159 | +18 |
Case1

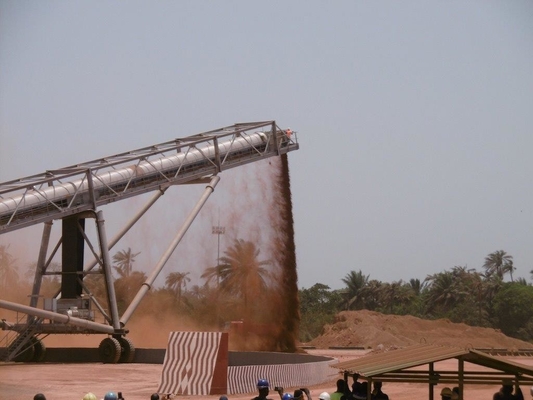

Mobile radial telescopic stacker for iron ore handling at the site in Africa.
Case2

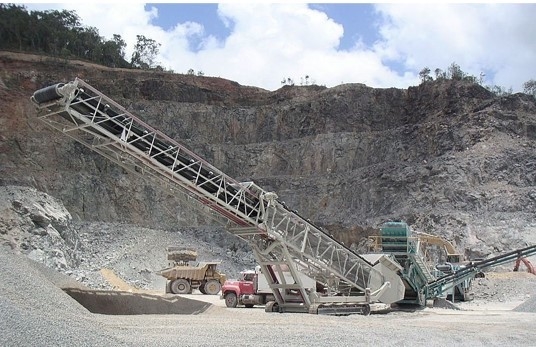

Mobile radial telescopic stacker for a pile of gravel handling at the opencast.
case 3
Mobile radial stacker for coal loading into the vessel at the port in southeast country.
Photos of our factory
