Electric Hydraulic Knuckle Boom Offshore Crane Engineering Multi Purpose Vessel
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABS/BV/CCS/GL/RINA/RMRS/LR |
| Model Number: | 100t10m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 200000 |
| Packaging Details: | nude |
| Delivery Time: | 3.5 months |
| Supply Ability: | 30set/year |
|
Detail Information |
|||
| Product: | Knuckle Boom Offshore Crane | Color: | Yellow |
|---|---|---|---|
| Painting: | 320um | Character: | Electric Hydraulic |
| Type: | Offshore | Model: | SSI-KB-100t10m |
| Advantage: | Low Cost | Benefit: | High Performance |
| High Light: | Electric Hydraulic Knuckle Boom Crane,Pedestal Offshore Crane Engineering,Corrosion Resistant Hydraulic Knuckle Boom Crane |
||
Product Description

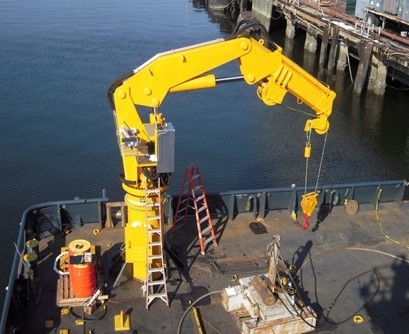

Electric hydraulic knuckle boom offshore crane installed on multi purpose vessel
The knuckle boom marine crane/offshore crane is designed as an electro-hydraulic driven articulated boom crane, with integrated electro-
hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to foundation. The
crane is equipped with a hydraulic powered winch, hydraulic-powered luffing, hydrau articulated and hydraulic powered slewing system.
Technical specification
| 1 | SWL | 100t@10m 25t@28m |
| 2 | Max working radius | 28m |
| 3 | Min working radius | 5m |
| 4 | Hosting speed | 0~12m/min(100t) ~20m/min(25t) |
| 5 | Slewing speed | 0.5r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 110s |
| 8 | Hook travel | 60m |
| 9 | Folding time | 115s |
| 10 | Extension time | 120s |
| 11 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 12 | Electric motor | |
| Power | 320 Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 13 | Flow | 300L/min |
| 14 | Design temperature | -10°~40° |
| 15 | Dead weight | ~165000 kg |

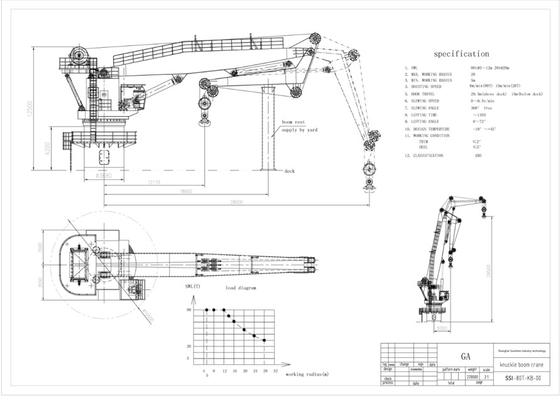

General drawing

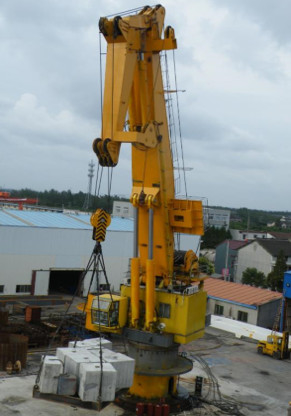

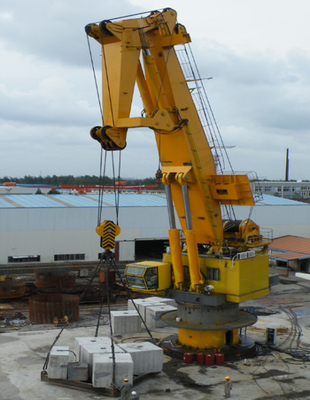

Photos of our factory
