250 Kw Hydraulic Knuckle Jib Crane Mounted On Offshore Platform
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABS/BV/CCS/GL/RINA/RMRS/LR |
| Model Number: | 80t10m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 200000 |
| Packaging Details: | nude |
| Delivery Time: | 3.5 months |
| Supply Ability: | 30set/year |
|
Detail Information |
|||
| Product: | Knuckle Boom Offshore Crane | Color: | By User |
|---|---|---|---|
| Painting: | DFT 320um | Character: | Electric Hydraulic |
| Type: | Offshore | Model: | SSI-KB-80t10m |
| Advantage: | High Performance | Benefit: | Low Cost |
| High Light: | Class Certificated Hydraulic Knuckle Jib Crane,Offshore Platform Knuckle Boom Marine Crane,Marine Environment Knuckle Jib Crane |
||
Product Description
Electric hydraulic knuckle boom offshore crane mounted on offshore platform
The knuckle boom marine crane/offshore crane is designed as an electro-hydraulic driven articulated boom crane, with integrated electro-
hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to foundation. The
crane is equipped with a hydraulic powered winch, hydraulic-powered luffing, hydrau articulated and hydraulic powered slewing system.
All the marine and offshore cranes are designed and manufactured based on our client`s technical specifications and applications. All the main components for the marine and offshore crane are from European and reputation brand, like slewing driver, hydraulic pump, electrical motor, hydraulic valves etc.
Technical specification
| 1 | SWL | 80t@10m 20t@25m |
| 2 | Max working radius | 25m |
| 3 | Min working radius | 4.5m |
| 4 | Hosting speed | 0~12m/min(80t) ~20m/min(20t) |
| 5 | Slewing speed | 0.5r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 100s |
| 8 | Hook travel | 60m |
| 9 | Folding time | 110s |
| 10 | Extension time | 120s |
| 11 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 12 | Electric motor | |
| Power | 250 Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 13 | Flow | 260L/min |
| 14 | Design temperature | -10°~40° |
| 15 | Dead weight | ~135000 kg |

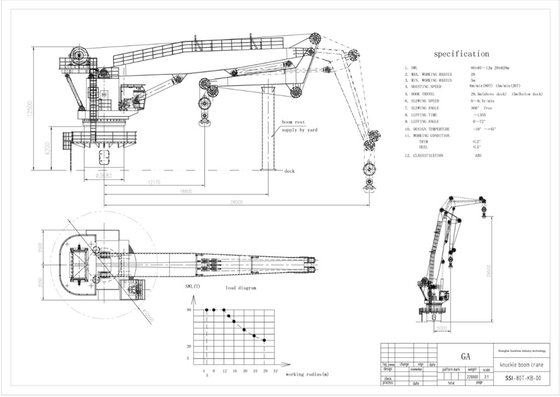

General drawing

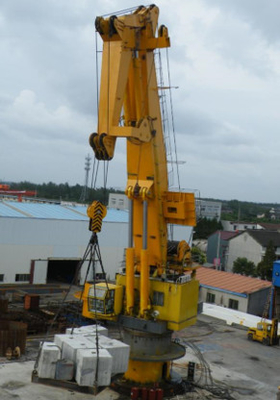

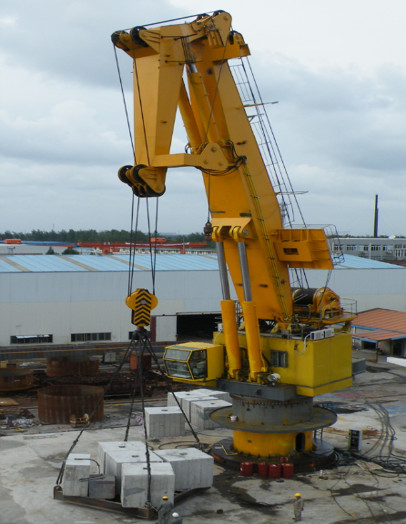

Photos of our factory
