PPG Continuous Screw Ship Unloader For Unloading Cement
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Description: | Screw Ship Unloader | Painting: | PPG |
|---|---|---|---|
| Color: | Yellow | Capacity: | 200 T/h |
| Steel Structure: | High Quality Steel | Welding: | Manual |
| NDT: | UT | Benefit: | Low Maintenance |
| High Light: | PPG Continuous Ship Unloader,Unloading Cement Screw Ship Unloader,200 T/H Ship Unloading System |
||
Product Description

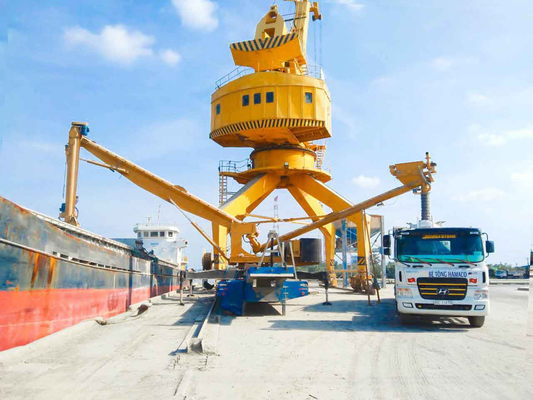

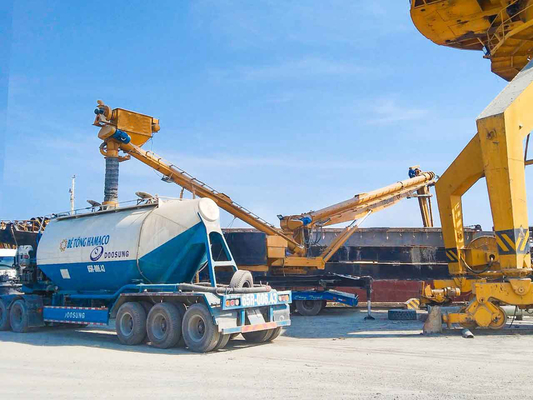

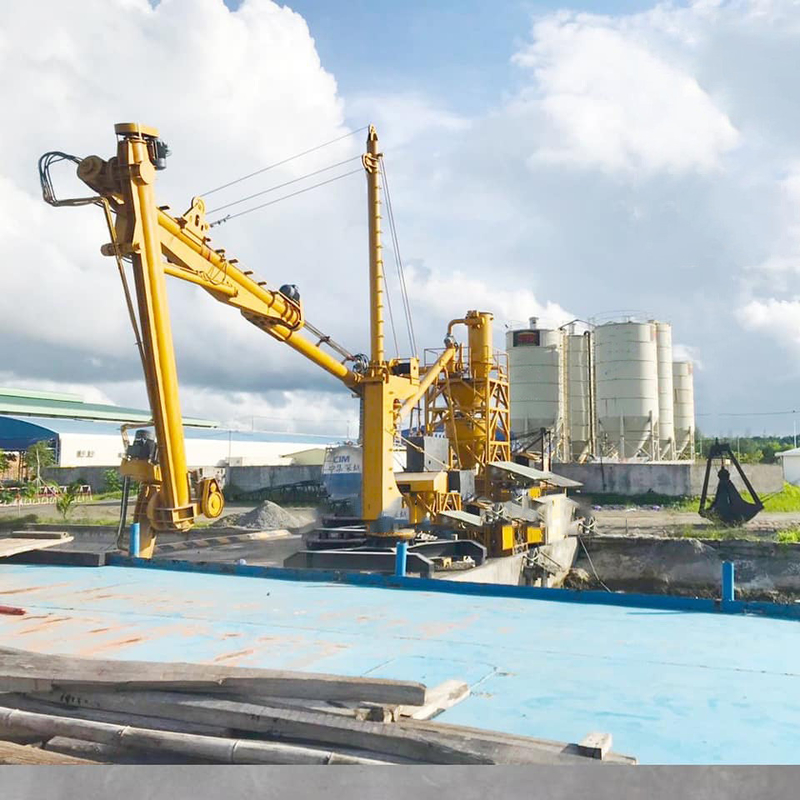

Stationary screw type continues ship unloader for unloading cement from vessel to truck
Stationary Screw-type ship unloaders are specially designed for unloading cement or grain from the vessel to shore or to a truck.
Technical Typical Specification
| model | LC60 | LC100 | LC150 | LC200 | LC300 |
| Rated capacity t/h | 60 | 100 | 150 | 200 | 300 |
| Power source | 380v 50hz | ||||
| Total power kw | 53 | 70 | 86 | 121 | 159 |
| L1 | 7 | 8 | 9 | 10 | 11 |
| H1 | 6 | 7 | 8 | 9 | 10 |
| Horizontal swing angle | ±30°≥@≥40° | ||||
| Vertical swing angle | ±30°≥@≥40° | ||||
| Swing angle | 270° | ||||
| Overall dimension L*W*H | 12.5*3*8.5 | 13.5*3*9.5 | 14.5*3.5*10.5 | 15.5*4.4*11.5 | 15.5*4.4*11 |
| Base size | 1.75*1.75 | 1.75*1.75 | 1.85*1.85 | 1.95*1.95 | 2.0*2.0 |
Main component
| 1.screw conveyor | |
| L1:screw conveyor | Out dimeter:325mm,length 3m,wall thickness 8mm,motor 22KW,China Bearing :UCFC: Japan |
| L2:screw conveyor | Out dimeter:355mm,length 5m,wall thickness 10mm,motor 22KW,China Bearing :UCFC Japan |
| L3:screw conveyor | Out dimeter:377mm,length 10m (If on truck,L3:11m),wall thickness 10mm,motor 30KW,China bearing:UCFC Japan |
| L4:screw conveyor | Out dimeter:508mm,length 11m,wall thickness 8mm,motor 37KW,China. Bearing :UCFC Japan |
| 1.2)material reclaiming head | Hydraulic motor ,china |
| Slewing mechanism | |
| 1.1)slewing bearing:1 |  |
| 1.2)slewing driver | |
| 1.3)Connetor |
L1,L2:1, L2,L3:1, L3 and frame:1 Frame and L4:2 |
| Hydraulic components | |
| Hydraulic cylinder , hydraulic pump, solenoid valve, (Taiwan China) hydraulic motor 11kw,(Taiwan China) | |
|
Electrical cabinet Size :1000x1000x250mm power:180KW |
|
| Wireless Remote control ,(Taiwan China) | |
