Carbon Steel Screw Cement Ship Unloader 100 T/H Sand Blasting Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Screw Ship Unloader | Painting: | PPG |
|---|---|---|---|
| Color: | Yellow | Capacity: | 100 T/h |
| Steel Structure: | Carbon Steel | Surface Treament: | Sand Blasting |
| NDT: | UT | Benefit: | Low Cost |
| High Light: | Full Closed Structure Ship Unloader,Sand Blasting Ship Unloading System,100 T/H Screw Type Ship Unloader |
||
Product Description

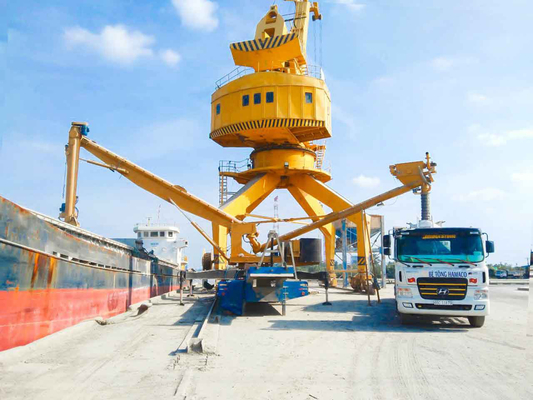

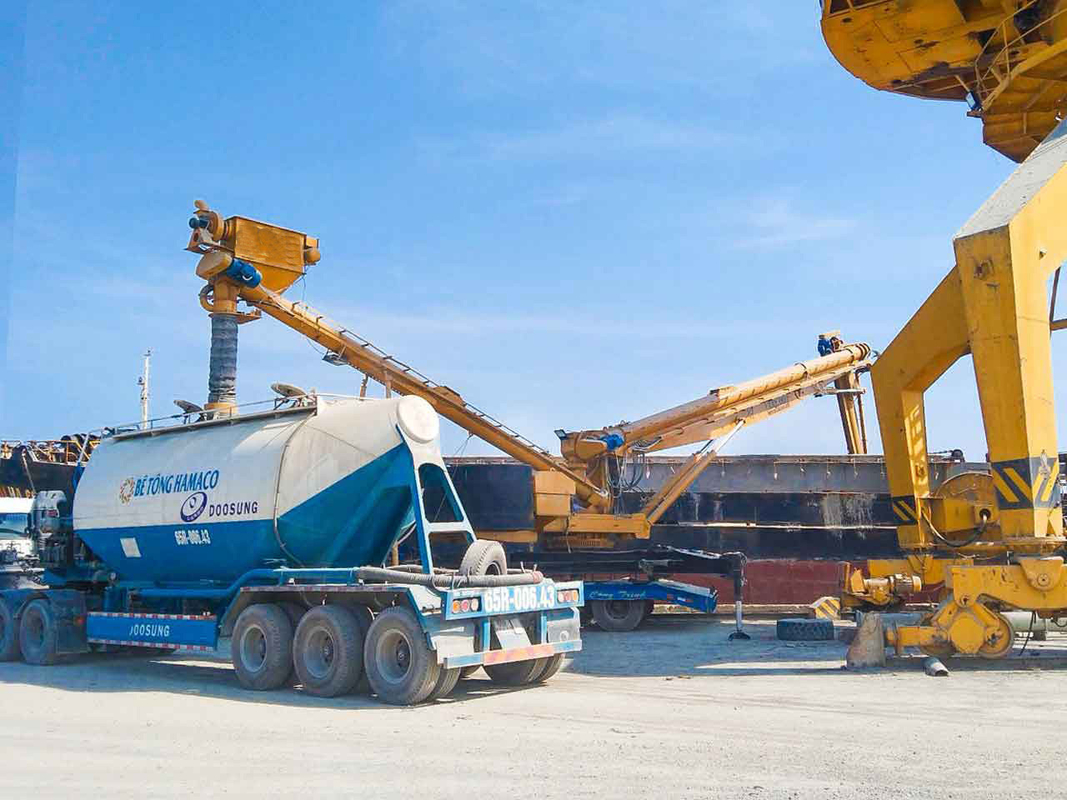

Screw ship unloader specially designed for unloading cement from vessel to truck
The screw ship unloaders are specially designed to transfer cement or grain or other bulk materials like that from vessel to shore in the most efficient way. The screw ship unloaders are equipped with totally enclosed screw conveyor, there will be no exhaust to escape, so it`s environment friendly. Our screw ship unloaders are tailor-made to our customer`s application situations.
Technical Typical Specification
| model | LC60 | LC100 | LC150 | LC200 | LC300 |
| Rated capacity t/h | 60 | 100 | 150 | 200 | 300 |
| Power source | 380v 50hz | ||||
| Total power kw | 53 | 70 | 86 | 121 | 159 |
| L1 | 7 | 8 | 9 | 10 | 11 |
| H1 | 6 | 7 | 8 | 9 | 10 |
| Horizontal swing angle | ±30°≥@≥40° | ||||
| Vertical swing angle | ±30°≥@≥40° | ||||
| Swing angle | 270° | ||||
| Overall dimension L*W*H | 12.5*3*8.5 | 13.5*3*9.5 | 14.5*3.5*10.5 | 15.5*4.4*11.5 | 15.5*4.4*11 |
| Base size | 1.75*1.75 | 1.75*1.75 | 1.85*1.85 | 1.95*1.95 | 2.0*2.0 |
Main component
| 1.screw conveyor | |
| L1:screw conveyor | Out dimeter:325mm,length 3m,wall thickness 8mm,motor 22KW,China Bearing :UCFC: Japan |
| L2:screw conveyor | Out dimeter:355mm,length 5m,wall thickness 10mm,motor 22KW,China Bearing :UCFC Japan |
| L3:screw conveyor | Out dimeter:377mm,length 10m (If on truck,L3:11m),wall thickness 10mm,motor 30KW,China bearing:UCFC Japan |
| L4:screw conveyor | Out dimeter:508mm,length 11m,wall thickness 8mm,motor 37KW,China. Bearing :UCFC Japan |
| 1.2)material reclaiming head | Hydraulic motor ,china |
| Slewing mechanism | |
| 1.1)slewing bearing:1 |  |
| 1.2)slewing driver | |
| 1.3)Connetor |
L1,L2:1, L2,L3:1, L3 and frame:1 Frame and L4:2 |
| Hydraulic components | |
| Hydraulic cylinder , hydraulic pump, solenoid valve, (Taiwan China) hydraulic motor 11kw,(Taiwan China) | |
|
Electrical cabinet Size :1000x1000x250mm power:180KW |
|
| Wireless Remote control ,(Taiwan China) | |
