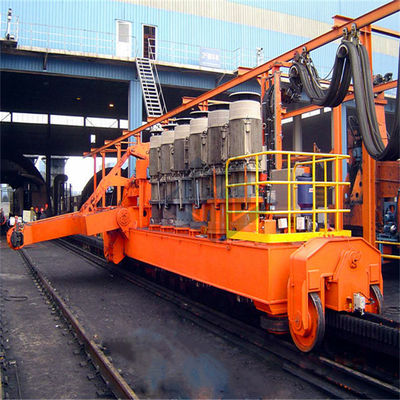

Rotary Railroad cart Dumper System For Coal Unloading Rapidly
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Rail Car Dumper | Color: | Grey |
|---|---|---|---|
| Painting: | INTERNATIONAL | Motor: | Seimens |
| Advantage: | High Performance | Price: | Low Cost |
| High Light: | Eco Friendly Railcar Rotary Dumperr,Rotary Cart Dumper System,Coal Unloading Rapidly Cart Dumper System |
||
Product Description
Rotary Railroad Car Dumper System Rail Car Dumper Automatic Wagon Unloading System
The main forms of rotary railload car dumper system are rotor type and roll type. Among them, the most used is the rotary railload car dumper. The rotor dumper is characterized by light weight and small size. However, the ground civil engineering cost is relatively large. Roll dumpers are rarely used. The roll dumper is characterized by large self weight, high power consumption and relatively small civil engineering cost. The efficiency of single car dumper is generally 18-25 cars per hour. In order to improve the efficiency, the multi section dumper adopts the gondola without uncoupling.
| Selection parameters of train dumper | ||||||||||||||
| Number of vehicles overturning at the same time | Type | Tipping capacity | Applicable models | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed | Starting and braking time | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.

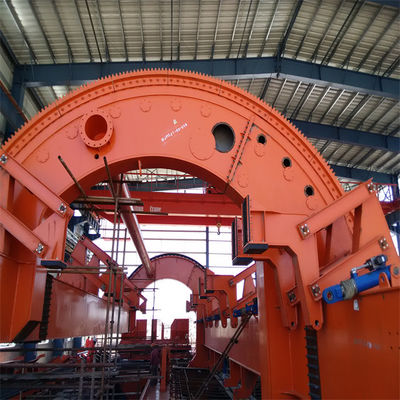

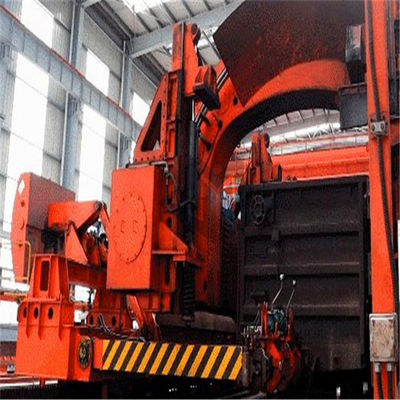

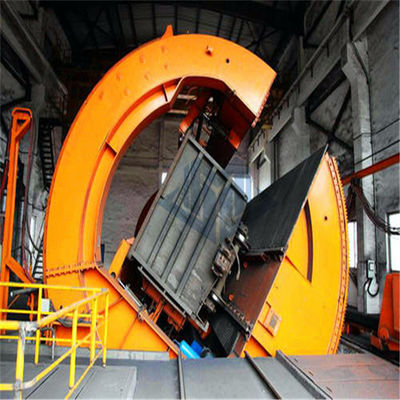

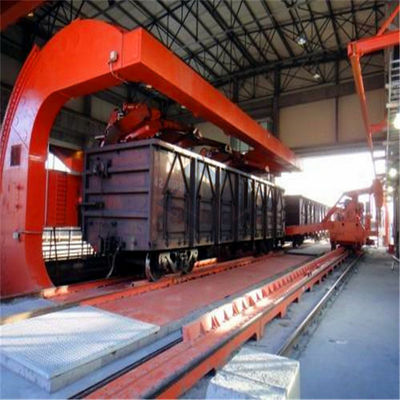

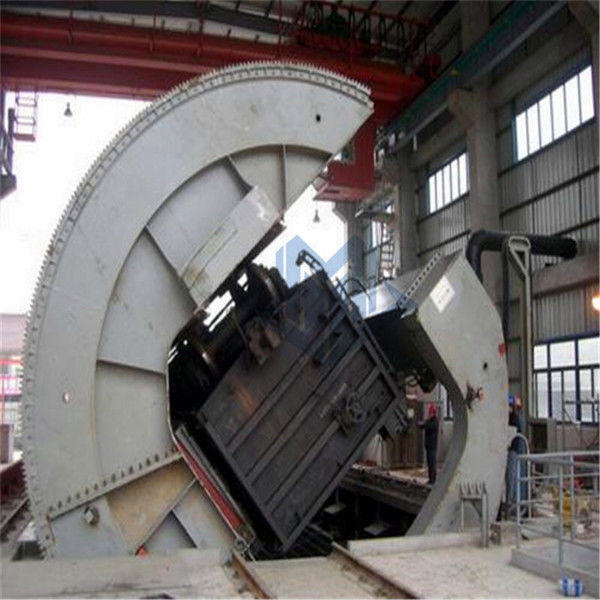

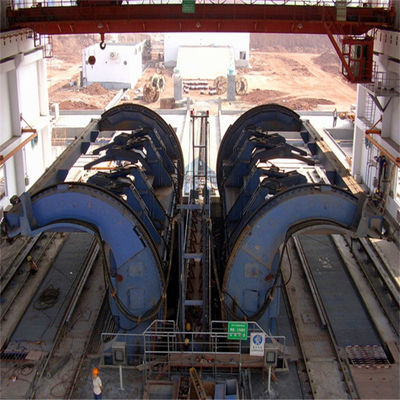

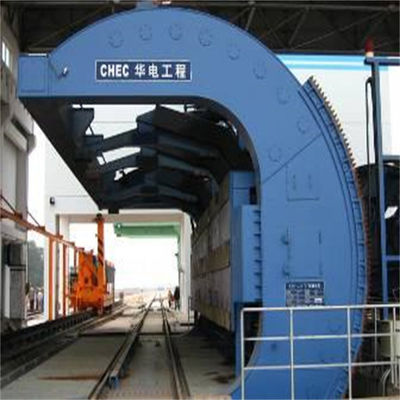

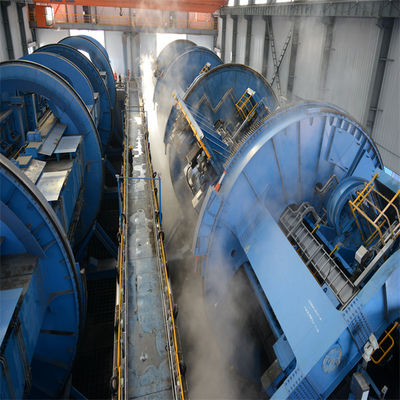

Photos of our factory
