Rail Car Unloading System For Bulk Materials Handling
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Material: | High Quality Steel | Color: | Red |
|---|---|---|---|
| Painting: | PPG | Character: | Rotary Type |
| NDT: | UT | Benefit: | Low Maintenance |
| Proeuct: | Rail Car Dumper | ||
| High Light: | Eco Friendly Rail Car Unloading System,Bulk Materials Handling Car Unloading System,Steel Rotary Railcar Dumper |
||
Product Description

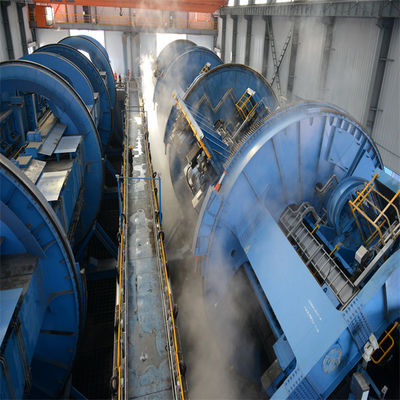

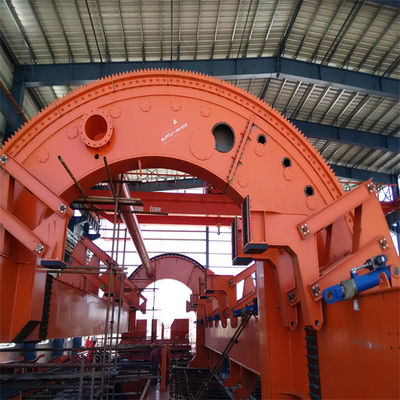

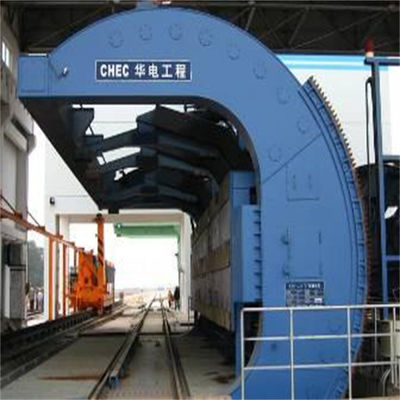

Rail Car unloading System Rail Car Tippler Rotary Railroad Car Dumper System

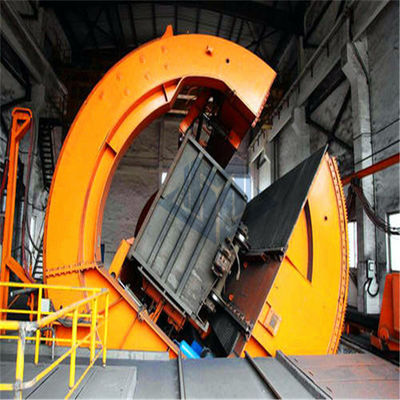

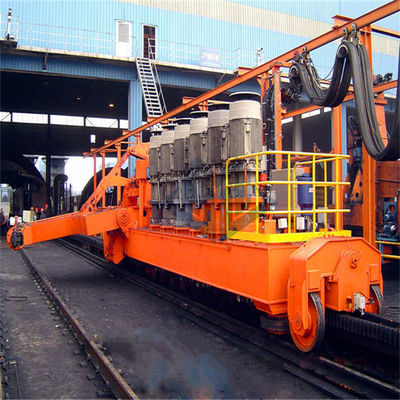

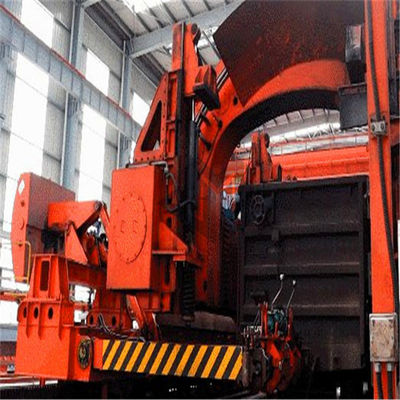

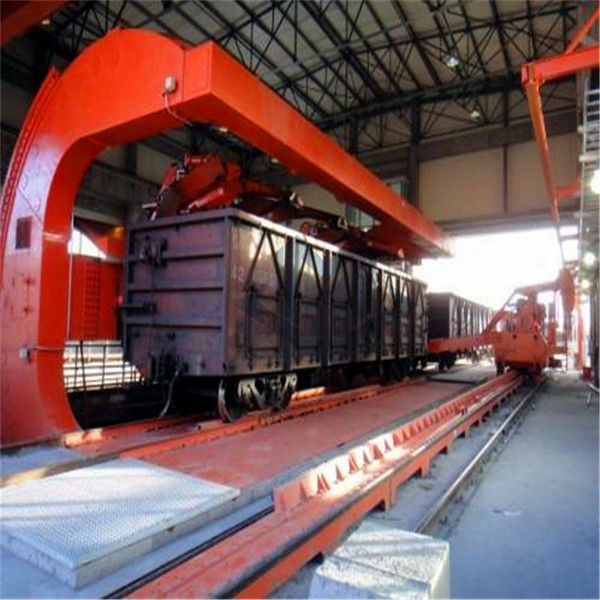

The C-typed rail car unloading system can be linked with other supporting equipment on the unloading line to realize automatic unloading, and can also be manually controlled by manual operation. The working process is: start the motor of the hydraulic station to raise the press arm to the highest position, and then a loaded gondola is pulled by the heavy truck shunting machine, which is accurately located on the supporting beam of the dumper. The backup plate vibrator is pushed to one side of the gondola by the hydraulic cylinder, and the press arm falls to press the upper sides of both sides of the open car. When the backup plate is on, the car pressing arm is pressed, and the heavy car shunting arm has driven out of the car dumper, the car dumper starts to dump at the normal speed. In the process of dumping, the release of vehicle spring force absorbs the energy released by the spring by not closing the hydraulic lock on the hydraulic cylinder. After tipping to 110 °, close the hydraulic lock and lock the tipping vehicle to prevent the vehicle from falling off the road. The dumper continues to dump until it approaches about 160 °, decelerates, stops and the vibrator is put into operation. After 3S, the vibration stops and the dumper returns at normal speed. When it is 30 ° away from the zero position, the pressing arm starts to lift, decelerates when it is close to the zero position, and stops the rail alignment. After shutdown, the backup plate retreats, the pressing arm moves to the highest position, the backup plate retreats to the last position, and the heavy car shunting machine pulls the second section of fully loaded gondola into the dumper to eject the unloaded empty car. In this way, the car dumper completes a working cycle

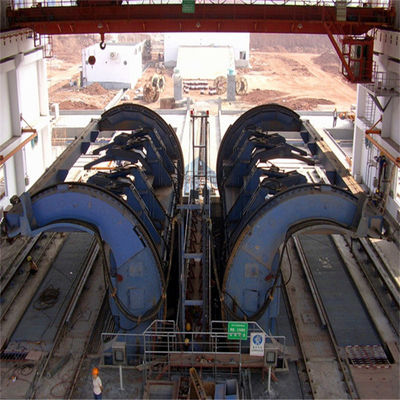

| Selection parameters of train dumper | ||||||||||||||
| Number of vehicles overturning at the same time | Type | Tipping capacity | Applicable models | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed | Starting and braking time | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
