Railway Car Tipping Machine Automatic Rotary Dumper System For Bulk Materials
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Material: | High Quality Steel | Color: | Blue |
|---|---|---|---|
| Painting: | HEMPEL | DFT: | 185um |
| Motor: | ABB | Steel Work: | Welding |
| Component: | European Brand | Product: | Rail Car Tipping Machine |
| High Light: | Bulk Materials Rotary Railcar Dumper,Railway Automatic Rotary Dumper,Tipping Railcar Unloading Equipment |
||
Product Description

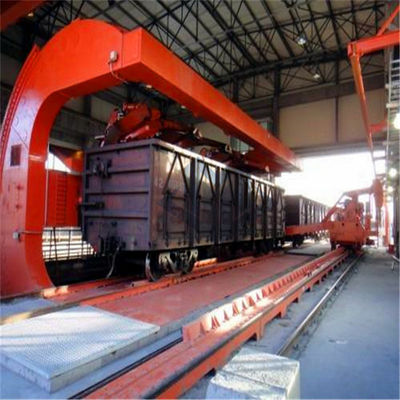

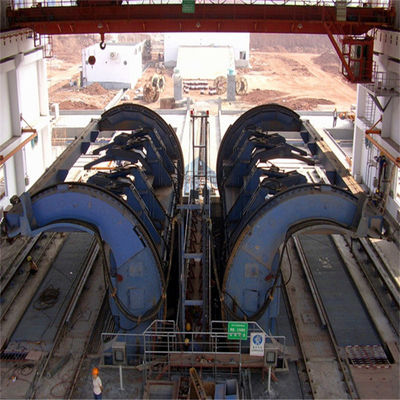

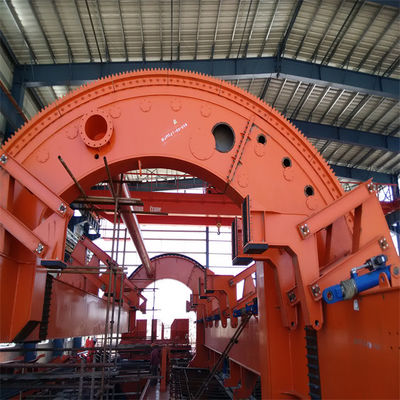

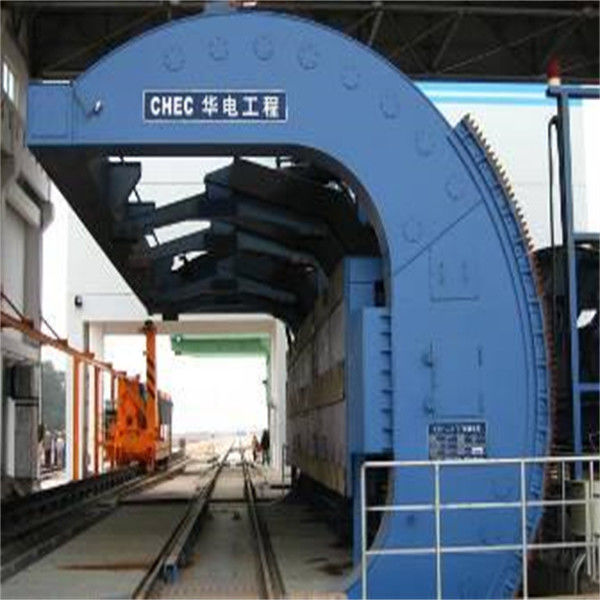

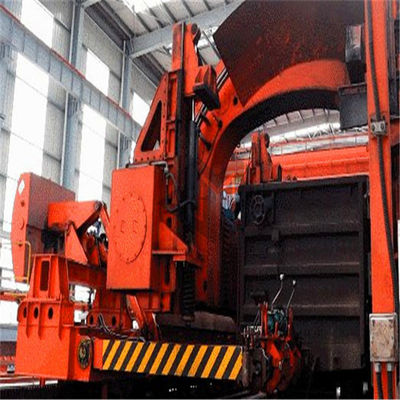

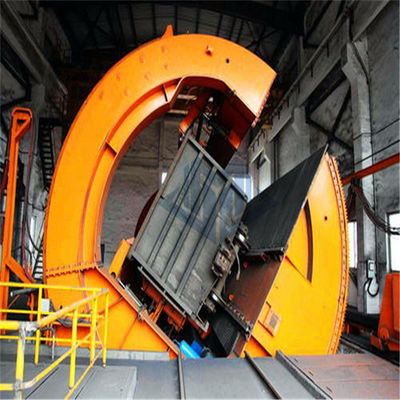

Railway Car Tipping Machine Automatic Rotary Dumper System Rotary Rail Car Dumper
Rail Car Tipping Machine is a very professional bulk material unloading system, which is used for the dumping of bulk materials loaded by trains. The rail car tipping machine has high unloading efficiency and less damage to wagons. It can improve the working environment of personnel on duty and facilitate the automatic control of machinery. With the continuous development of national economy, the consumption of bulk materials transported by train such as coal, coke and ore required for the construction of thermal power plants, smelters, cement plants, ports and mines has increased significantly. Dumper unloading system has been widely used in large modern enterprises.
| Selection parameters of train dumper | ||||||||||||||
| Number of vehicles overturning at the same time | Type | Tipping capacity | Applicable models | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed | Starting and braking time | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
