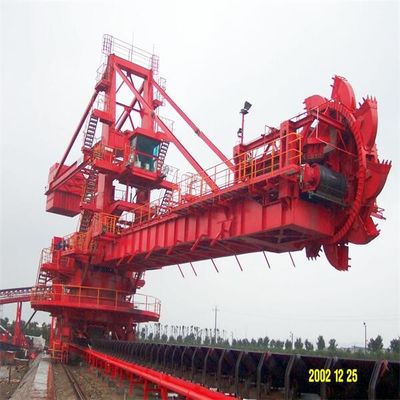

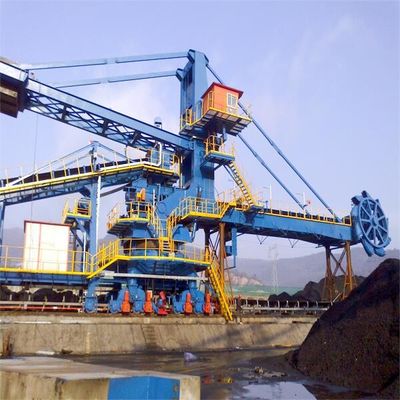

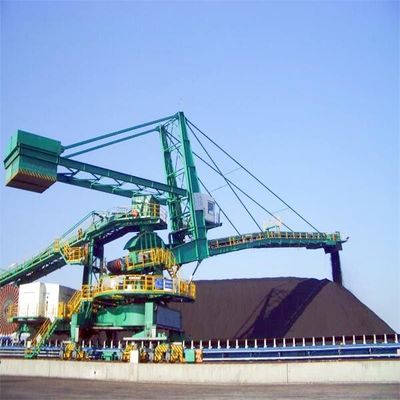

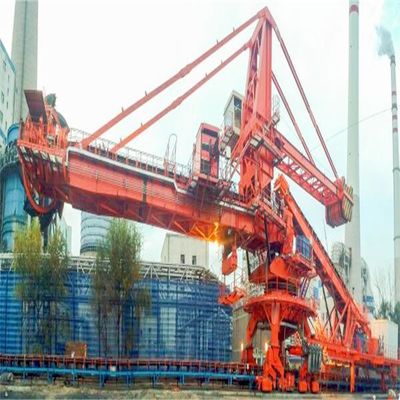

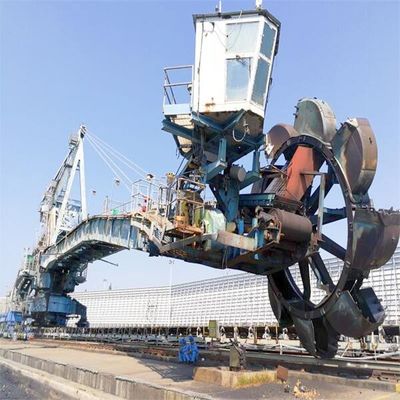

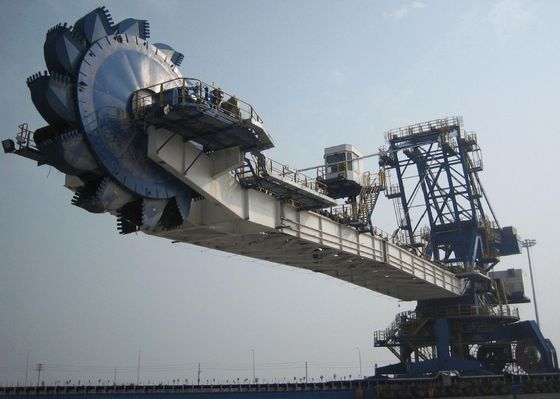

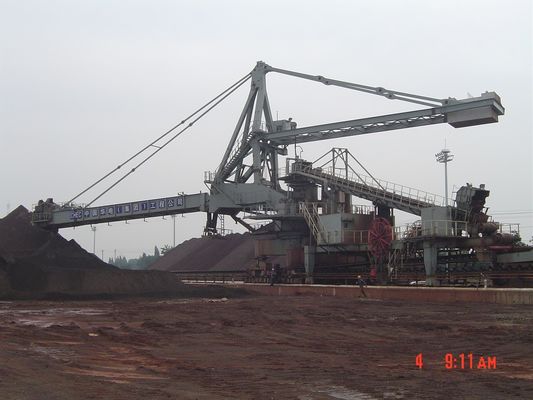

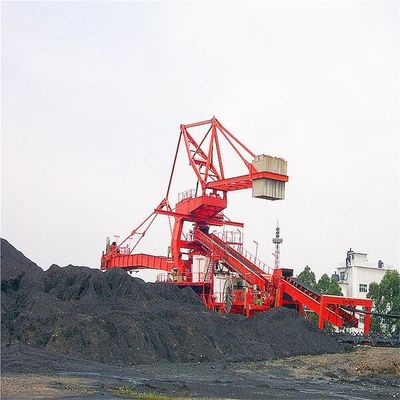

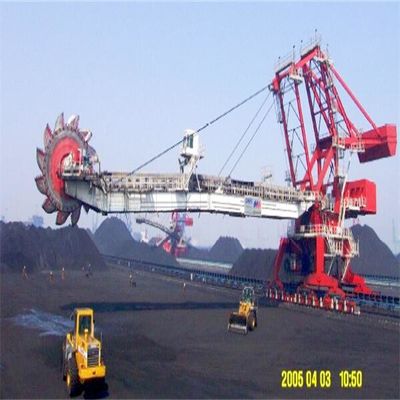

Bucket Wheel Stacker And Reclaimer System For Longitudinal Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Bucket Wheel Stacker And Reclaimer | Painting: | Jotun |
|---|---|---|---|
| Color: | Grey | Capacity: | 3500 T/h |
| Character: | Bucket Wheel | Advantage: | Low Maintenance |
| Benefit: | Low Cost | Application: | Coal Handling |
| High Light: | Longitudinal Stockyard Bucket Wheel Stacker Reclaimer,Bucket Wheel Stacker Cum Reclaimer |
||
Product Description

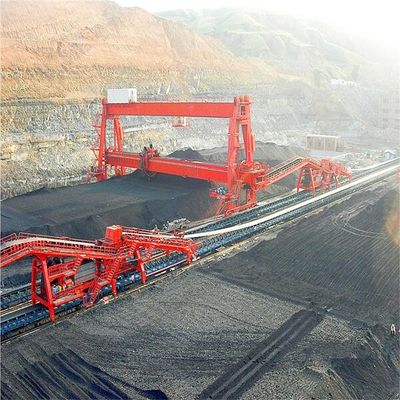

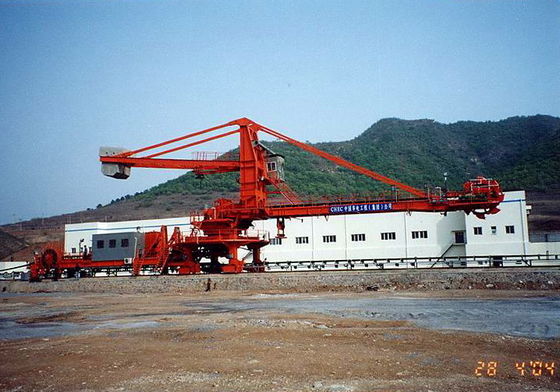

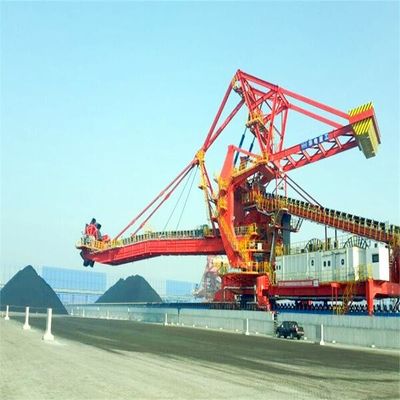

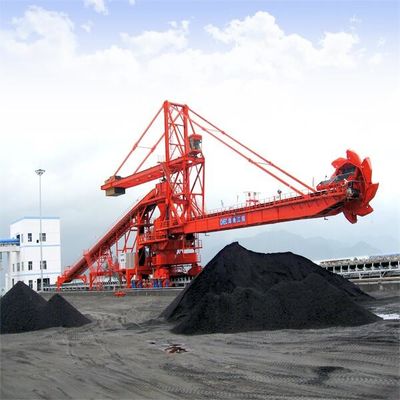

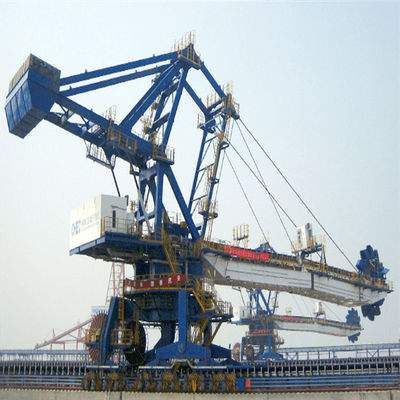

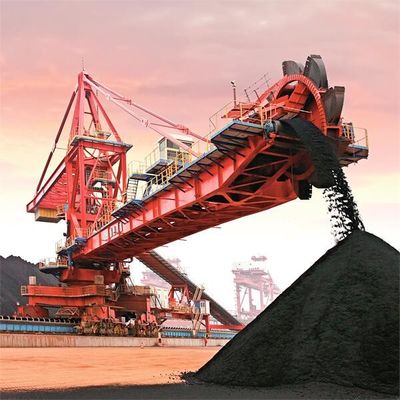

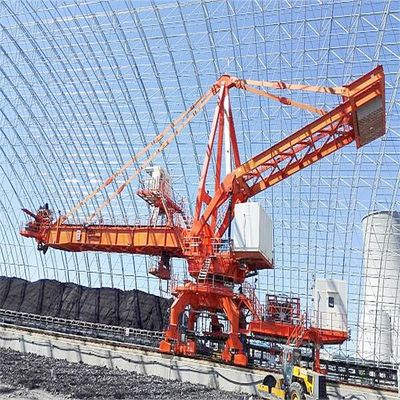

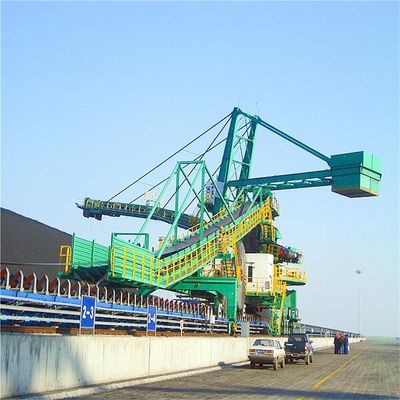

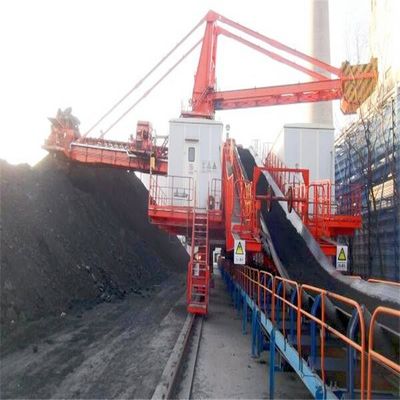

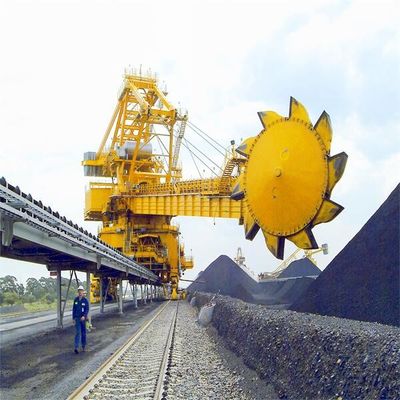

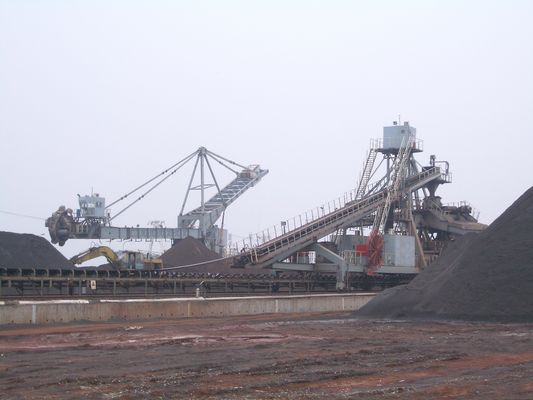

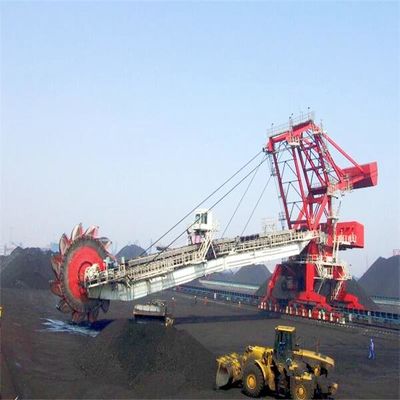

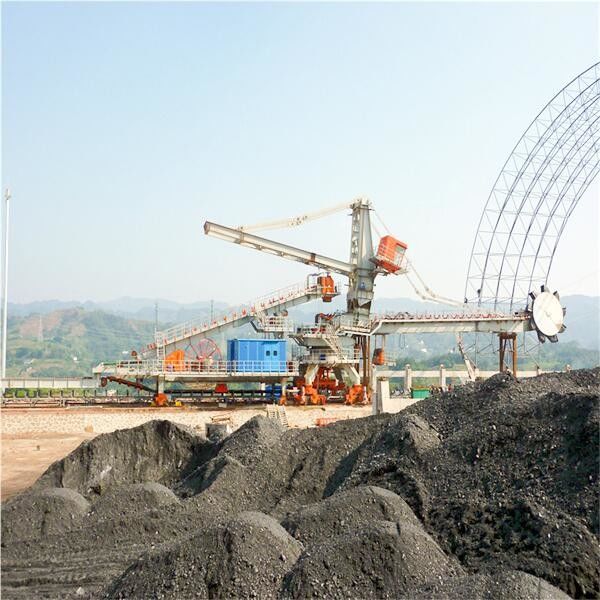

Bucket-wheel stacker and reclaimer stacking and reclaiming system for longitudinal stockyard
1. Summary
Bucket-wheel stacker reclaimer can perform the functions of continuous stacking, reclaiming, blending, and storage of bulk particles and block raw materials. It is widely used in the material storage and transportation system of electric power, metallurgy, building materials, chemical industry, port, coal, grain, and other industries. It is common equipment in large and medium-sized industrial enterprises.
Bucket-wheel stacker reclaimer is mainly composed of bucket wheel, slewing, boom raising, walking, cantilever belt conveyor, and metal structure, tail car, auxiliary structure, central hopper, spray dust suppression system, lubrication system, electrical system, power supply device, and so on.

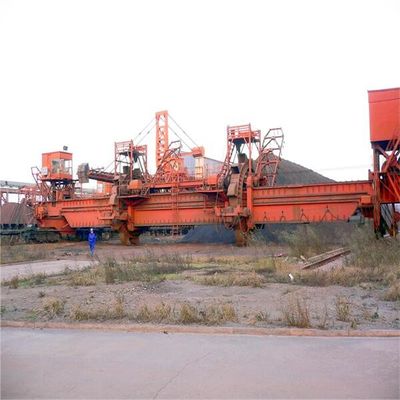

By adjusting the tripper car structure (fixed single tail car, semi lying tripper car, full lying tripper car, cross tripper car, double tripper car, etc.), the bucket wheel stacker reclaimer can perform many functions, such as stacking, reclaiming through, reclaiming turn back, shunting, through and so on, to meet the requirements of different working conditions.
2. Structural form of the whole machine
The medium and small bucket wheel machines adopt the overall balance form, with few movable hinge points and a low failure rate. The central hinge seat of the superstructure is equipped with lubrication-free joint bearing, with less maintenance workload. For large bucket wheel machines, the movable balance type is mostly adopted, mainly considering that the pitching angle of the cantilever frame is small and the change of the center of gravity relative to the superstructure is small.
Feature
| product | Bucket Wheel Stacker and Reclaimer |
| painting | Jotun |
| color | grey |
| capacity | 3500 t/character bucket |
| character | Bucket Wheel |
| advantage | low maintenance-benefit low |
| benefit | low cost |
| application | coal handling |

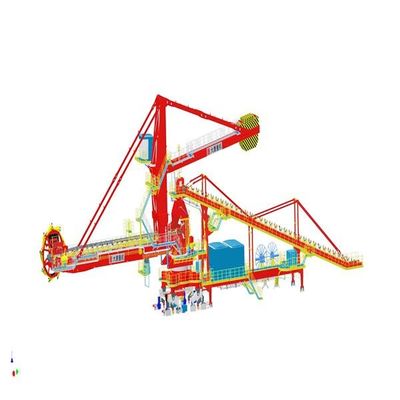

GA (fixed split tripper car)
GA (full function tripper car)
