Stockyard Stacker And Reclaimer With Bucket Wheel
|Place of Origin:
Payment & Shipping Terms:
|Minimum Order Quantity:
|US $500,000-5,000,000/ Set
|Wooden case or bare
|6 months after receipt of advance payment
|L/C, D/A, D/P, T/T, Western Union, MoneyGram
|40 sets / year
|Stacker And Reclaimer
Bucket Wheel Portal Stacker Reclaimer,
Stockyard Stacker Reclaimer Machine

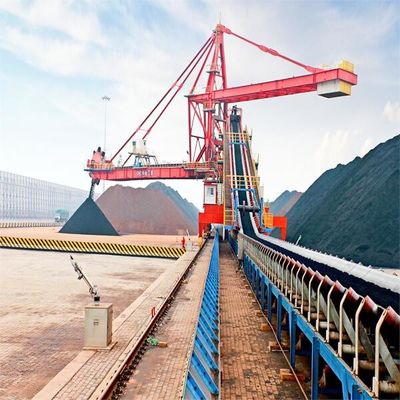

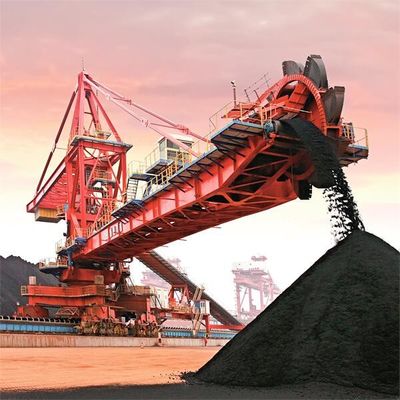

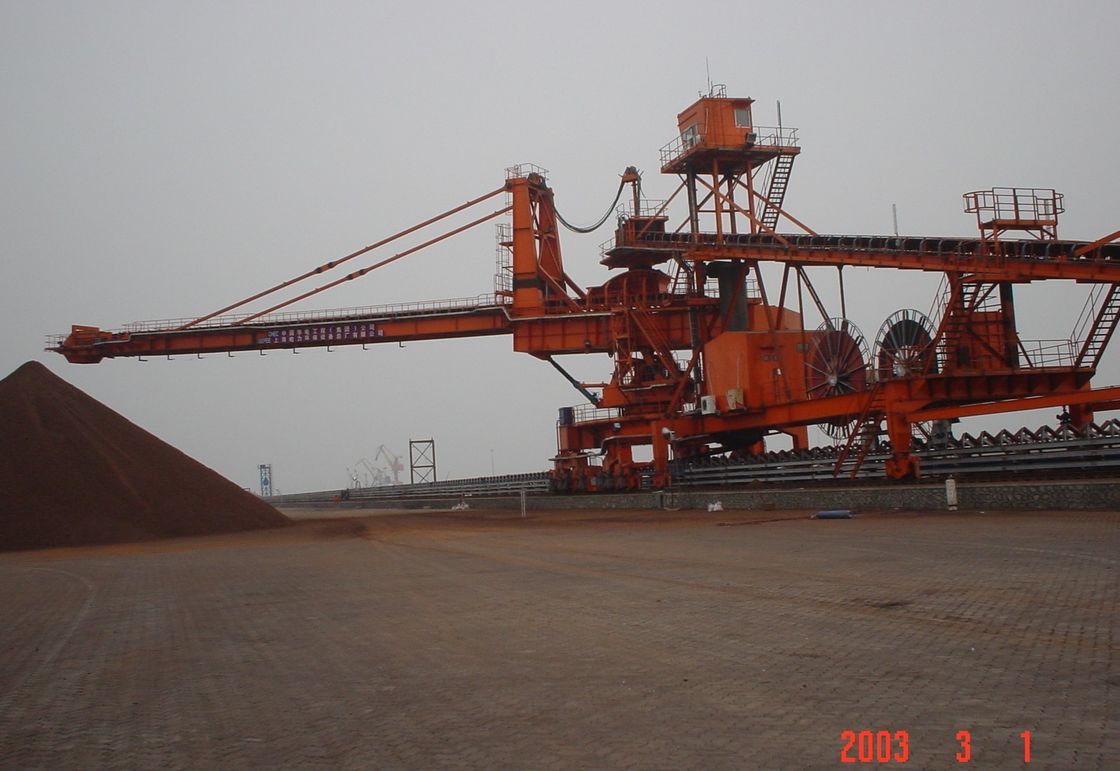

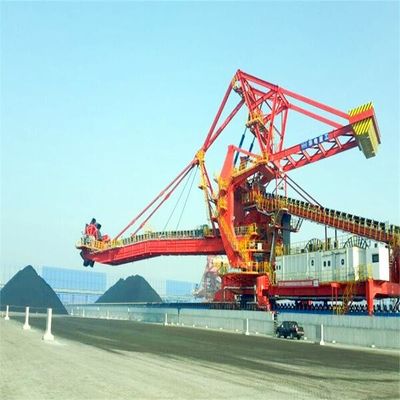

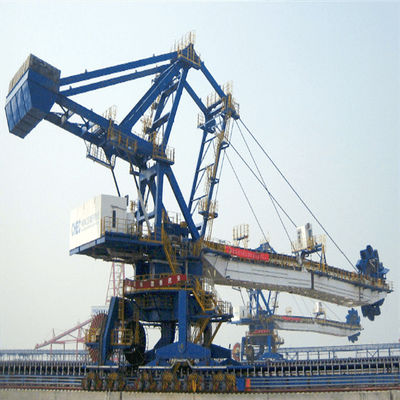

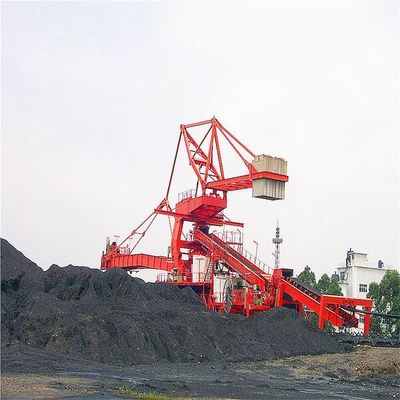

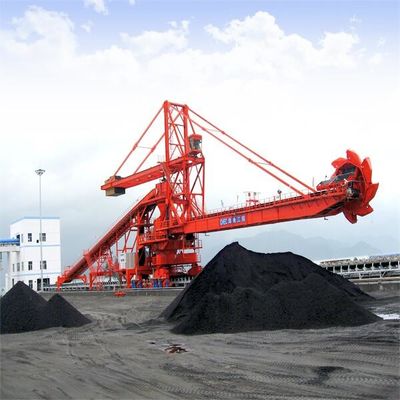

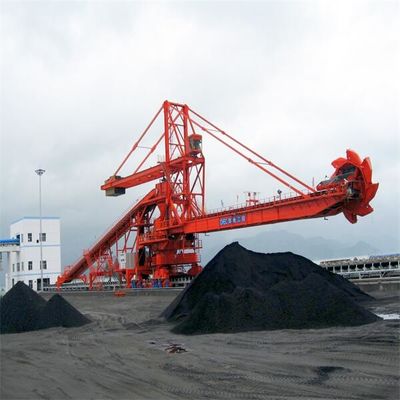

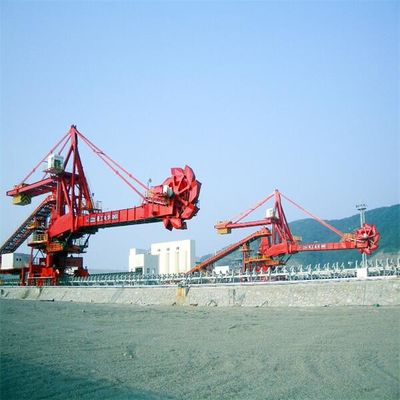

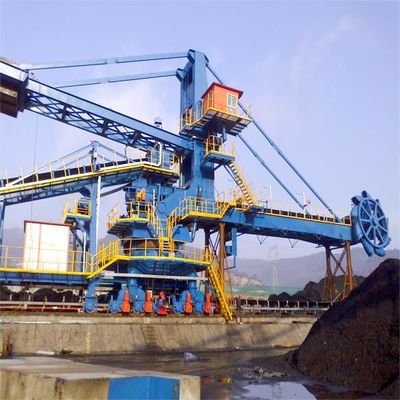

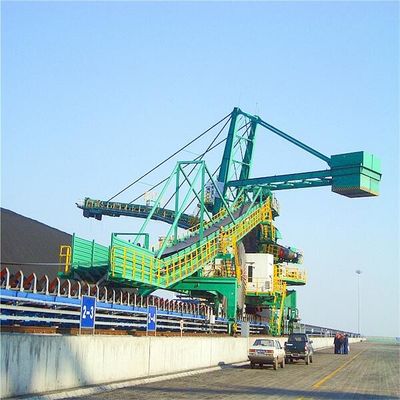

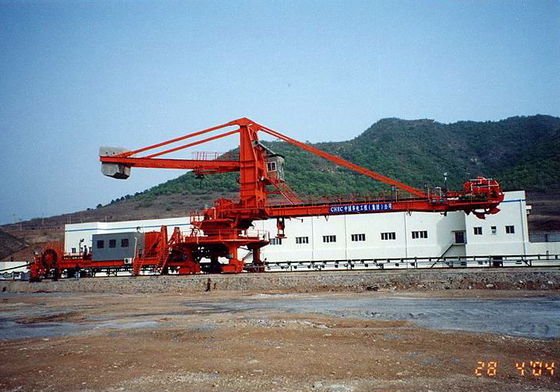

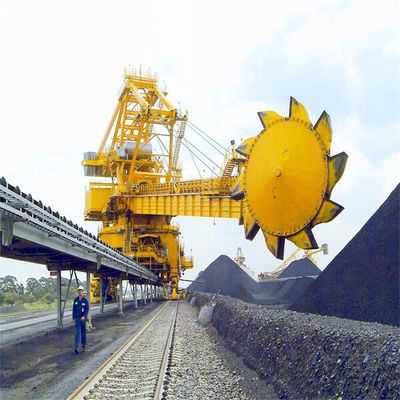

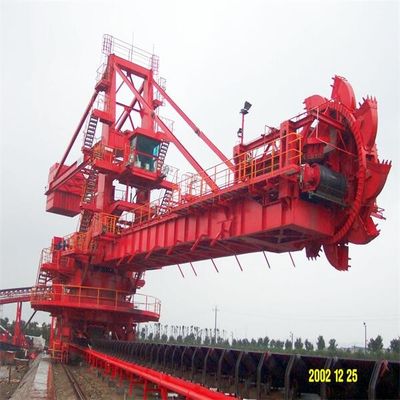

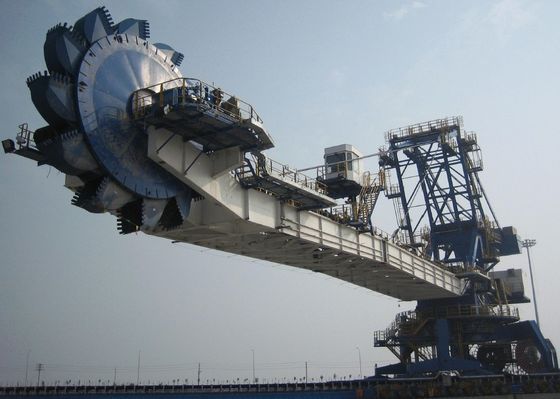

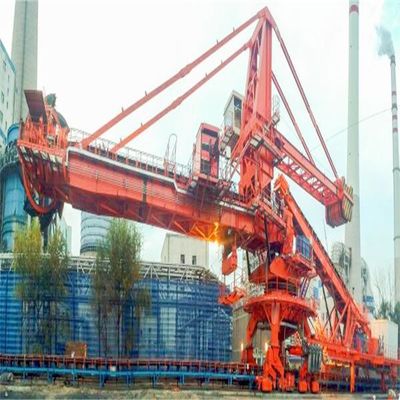

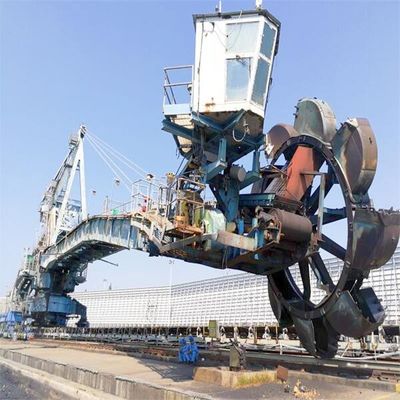

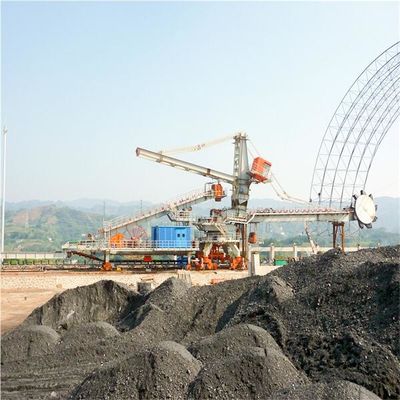

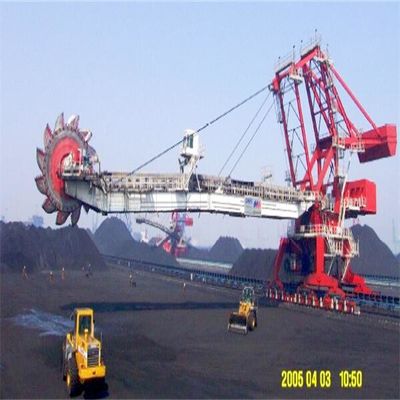

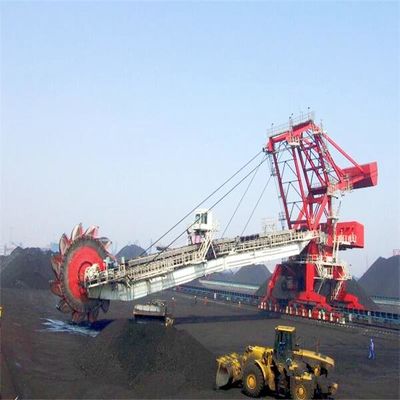

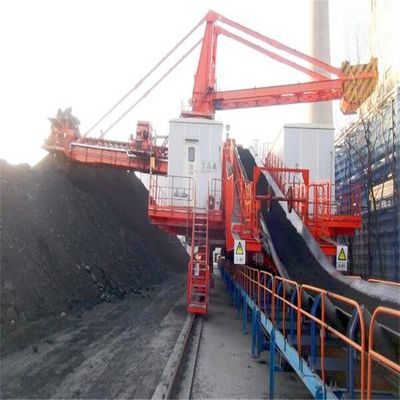

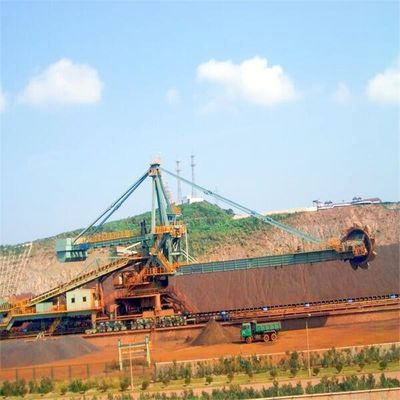

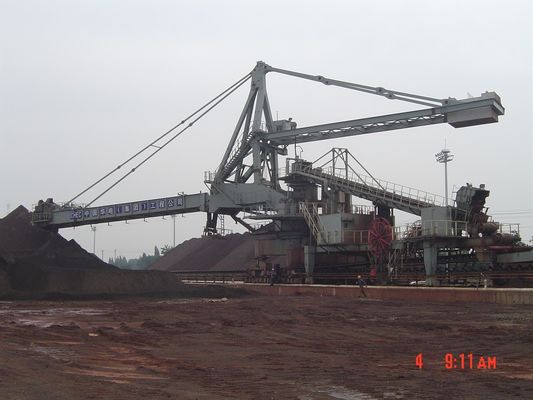

Stacker and Reclaimer with bucket wheel at stockyard stacking and reclaiming material
Bucket-wheel stacker reclaimer can perform the functions of continuous stacking, reclaiming, blending, and storage of bulk particles and block raw materials. It is widely used in the material storage and transportation system of electric power, metallurgy, building materials, chemical industry, port, coal, grain, and other industries. It is a common equipment in large and medium-sized industrial enterprises.
Bucket-wheel stacker reclaimer is mainly composed of bucket wheel, slewing, boom raising, walking, cantilever belt conveyor, and metal structure, tripper car, auxiliary structure, central hopper, spray dust suppression system, lubrication system, electrical system, power supply device, and so on.
By adjusting the tripper car structure (fixed single tripper car, semi lying tripper car, full lying tripper car, cross tripper car, double tripper car, etc.), the bucket wheel stacker reclaimer can realize many functions, such as stacking, reclaiming through, reclaiming turn back, shunting, through and so on, to meet the requirements of different working conditions.
The medium and small bucket wheel machines adopt the overall balance form, with few movable hinge points and a low failure rate. The central hinge seat of the superstructure is equipped with lubrication-free joint bearing, with less maintenance workload. For large bucket wheel machines, the movable balance type is mostly adopted, mainly considering that the pitching angle of the cantilever frame is small and the change of the center of gravity relative to the superstructure is small.
|Stacker and Reclaimer
|low maintenance cost low

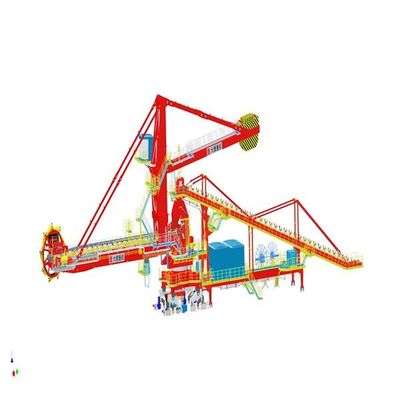

GA (fixed split tripper car)
GA (full function tripper car)
