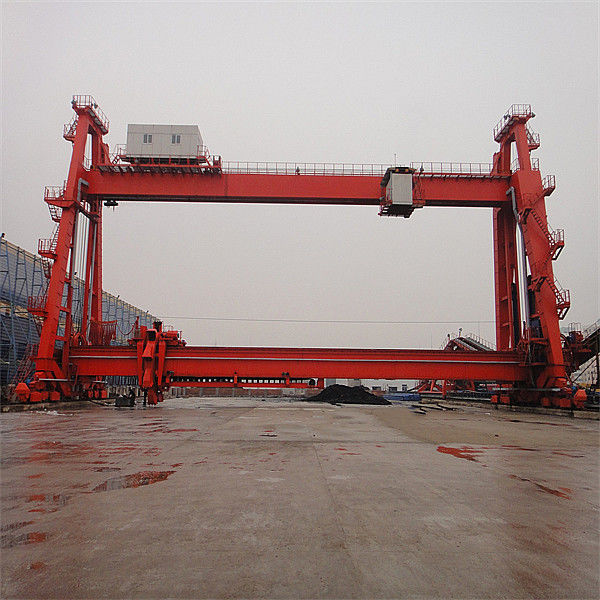

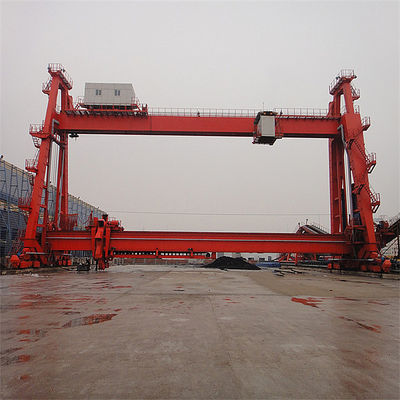

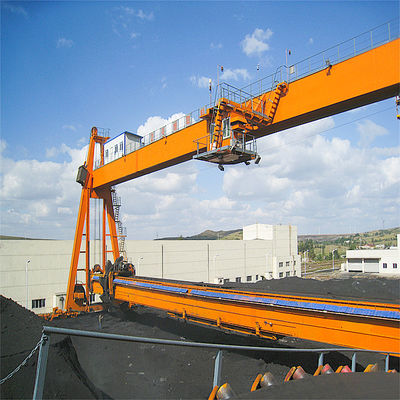

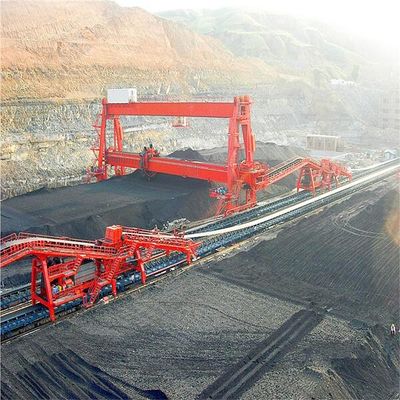

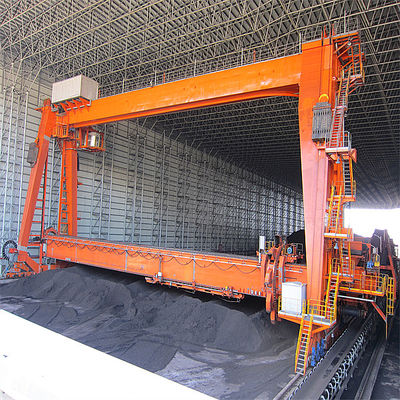

Gantry Type Bucket Wheel Stacking System For Longitudinal Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Description: | Stacking Equipment | Painting: | HEMPEL |
|---|---|---|---|
| Color: | Orange | Capacity: | 1500 T/h |
| Character: | Gantry Type | Advantage: | High Efficient |
| Benefit: | Low Maintenance | Site: | Stockyard |
| High Light: | Gantry Type Bucket Wheel Stacker,Longitudinal Stockyard Bucket Wheel Stacker,Bucket Wheel Stacker Reclaimer Equipment |
||
Product Description
Gantry type bucket wheel stacking system for longitudinal stockyard
Applications
Gantry bucket wheel stacker and reclaimer is mainly applied for coal power plants, industrial and mining enterprises, and port bulk material stockyards.
feature
The gantry bucket wheel stacker and reclaimer were designed as compact, high efficiency, automation, and environmentally friendly. The working area of the bucket wheel stacker and reclaimer is flexible, and the bulk material stacking and reclaiming operation can be carried out on the different material piles.
composition
The gantry bucket wheel stacker and reclaimer is mainly composed of a traveling mechanism, stacker belt conveyor, reclaimer belt conveyor, mobile belt conveyor, movable beam, lifting mechanism, tail stacker transfer mechanism, tail car, traveling device, steel structure, water spray system, lubrication system, electrical room, etc
Working principle
The gantry bucket wheel stacker and reclaimer is used in the Longitudinal stockyard to stack and reclaims the materials in the stockyard, unload them to the reclaiming belt conveyor and stacking belt conveyor, and then transport them out through the ground belt conveyor to complete the reclaiming and stacking work; The stacking and reclaiming belt conveyor can be reversed. During stacking and reclaiming, the bulk materials of the ground belt conveyor are unloaded to the stacking and reclaiming belt conveyor by the rear part, and the materials are stacked to the stockpile by the mobile belt conveyor as supposed by the traveling mechanism and Luffing mechanism.
specification of gantry bucket wheel stacker and reclaimer
| description | parameter | unit |
| bulk material | coal,coke,ore | |
| density | 0.6~2.2 | t/m3 |
| granularity | <300 | mm |
| moisture | <2 | % |
| stacking capacity | 200~3000 | t/h |
| reclaiming Capacity | 100~2000 | t/h |
| rail span | 20~60 | m |
NOTICES
The customer shall provide the following information when placing an order
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
