1000 Tph Capacity Stockyard Stacker And Reclaimer For Coal Fired Power Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Stacker And Reclaimer | Material Handling: | Coal Or Limestone |
|---|---|---|---|
| Painting: | INTERNATIONAL | Color: | Yellow |
| Steel Work: | Welding And Inspected | Sand Blasting: | SA2.5 |
| NDT: | UT | Capacity: | 1000t/h |
| High Light: | Coal Fired Power Plant Stacker Reclaimer,1000 Tph Coal Reclaimer Stacker |
||
Product Description

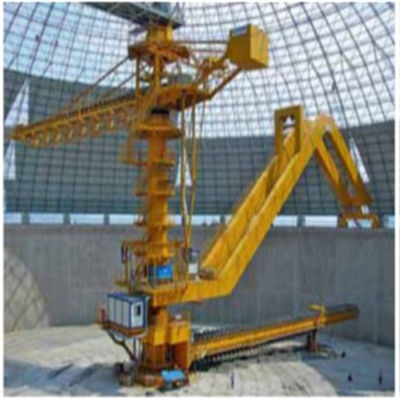

1000 tph capacity stockyard stacker and reclaimer for coal-fired power plant

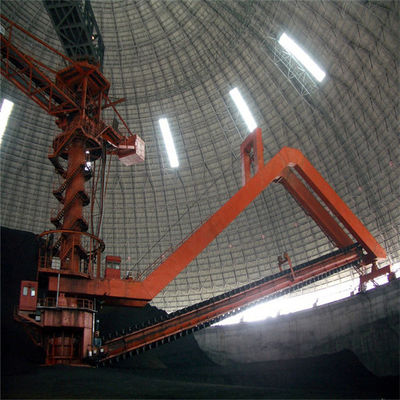

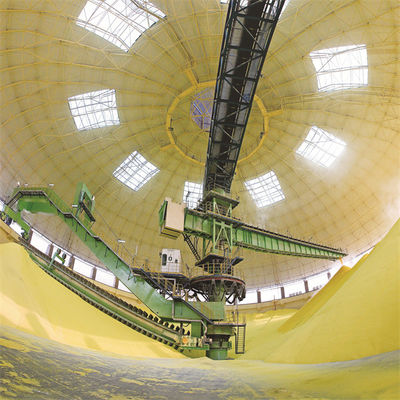

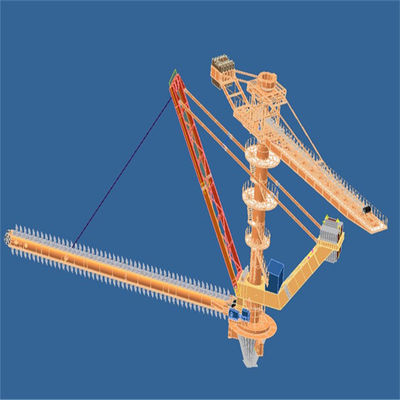

Circular gantry scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port, and other industries, and is mostly used to stack limestone or coal and other bulk materials. The cantilever of the stacker is equipped with a belt conveyor, which passes through the steel structure grid roof of the circular stockyard from the belt conveyor on the trestle, and the input materials complete the ring conical stacking through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work via three linking processes: traveling system, luffing system, and scraper system. The scraper reclaimer scrapes the materials into the conical hopper under the central column along the slope of the pile and outputs the materials through the vibrating feeder and underground belt conveyor.
Feature
| product stacker stacker | stacker and reclaimer |
| painting | INTERNATIONAL |
| color | yellow |
| capacity | 1000 t/character |
| character | heavy duty |
| advantage | low maintenance |
| benefit | low cost |
| material handling | coal or limestone |

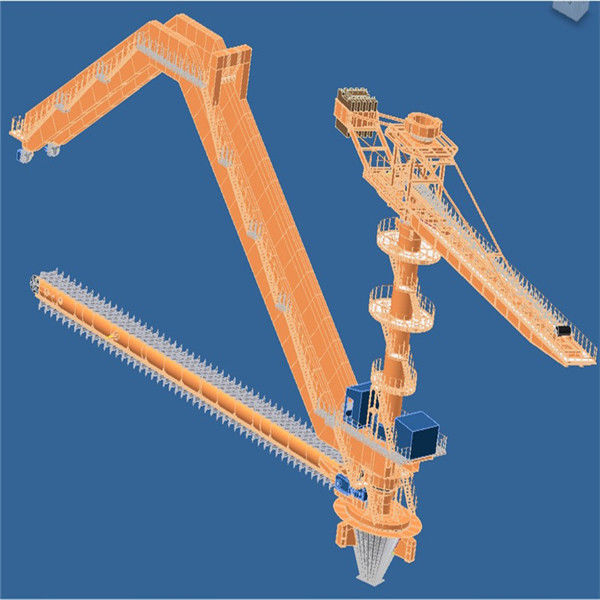

Main components of circular stacker and reclaimer
1. Stacking steel structure, cantilever belt conveyor
2. King column and slewing mechanism of circular stacker and reclaimer
3. Gantry stacker
4. Luffing mechanism:
5. Scraper reclaimer
6. Hydraulic system
7. Applications

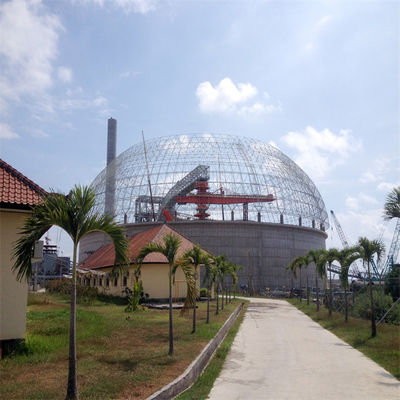

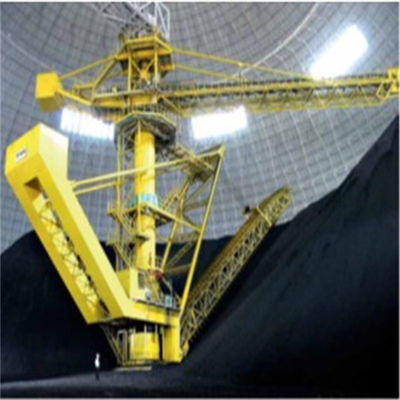

Case1

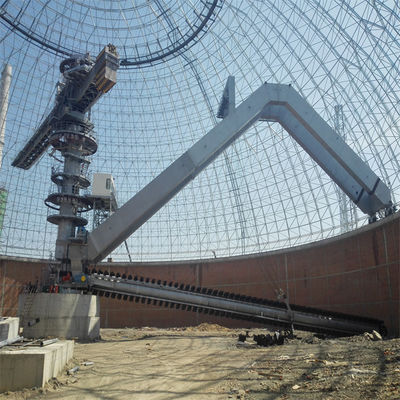

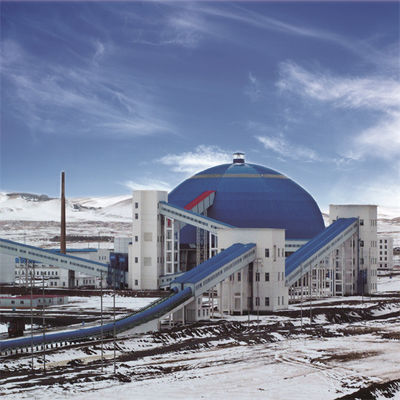

Case2

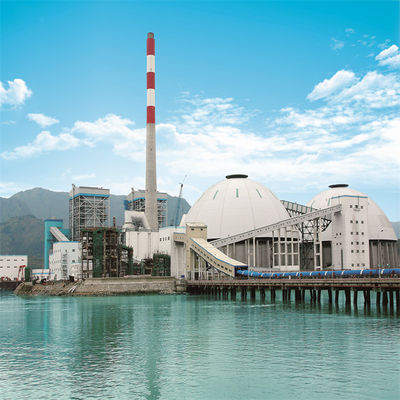

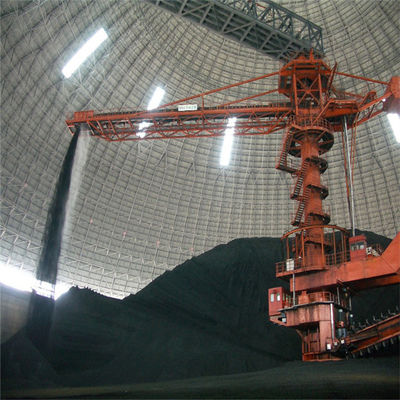

Case3

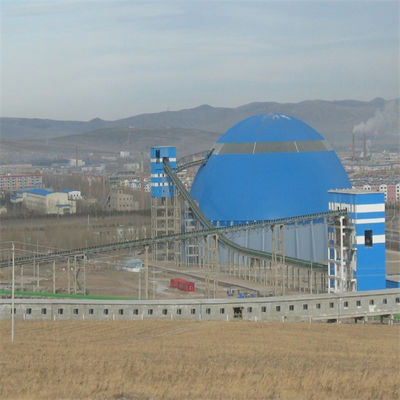

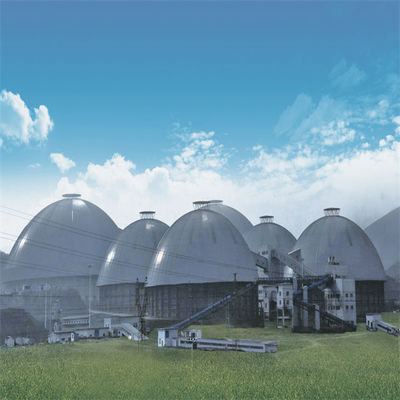

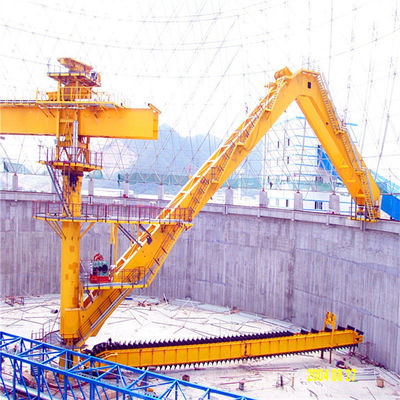

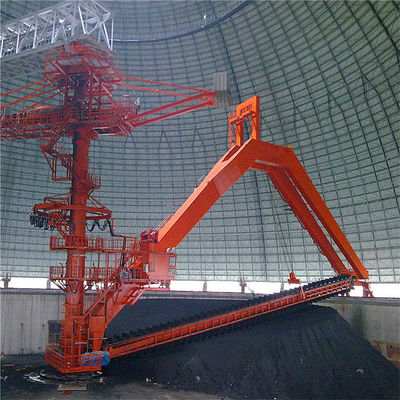

Case4
