Bridge Type Scraper Stacker And Reclaimer For Circular Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Stacking And Reclaiming System | Steel Structure: | Carbon Steel |
|---|---|---|---|
| Painting: | HEMPEL | Character: | Bridge Type |
| Color: | Yellow | Welding: | GMAW |
| Sand Blasting: | SA2.5 | Capacity: | 1600 T/h |
| High Light: | Bridge Type Scraper Stacker And Reclaimer,Bridge Type Stacker And Reclaimer,Circular Stockyard Stacker Cum Reclaimer |
||
Product Description

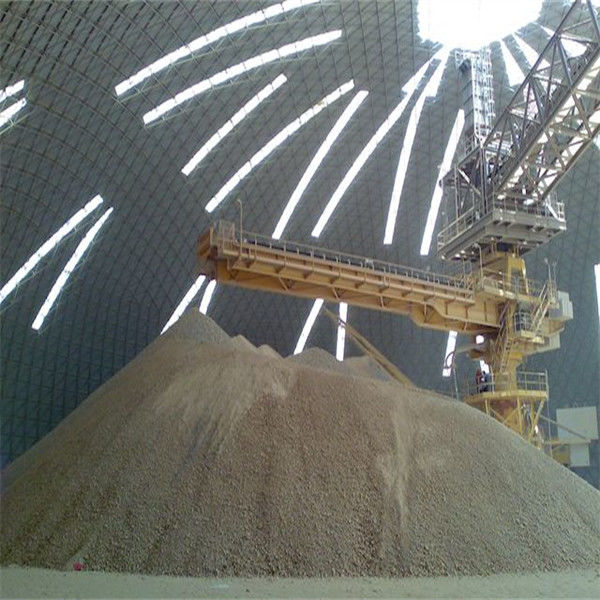

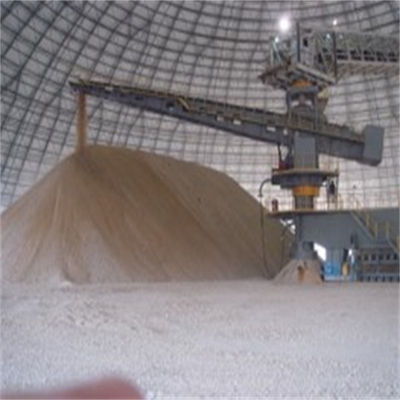

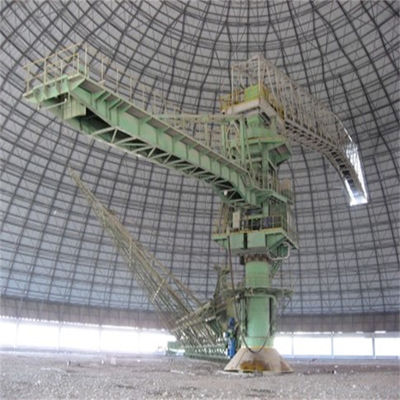

Bridge type scraper stacker and reclaimer for circular stockyard
applications
Circular bridge scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port, and other industries, and is mostly used to stack limestone or coal and other bulk materials. It is equipment that continuously stacks and full section reclaiming, It is suitable for indoor or open stockyards where bulk materials need to be blended, stored, and transferred. It can complete the blending and stacking and blending and reclaiming of materials at the same time or separately
feature
The circular bridge scraper and reclaimer have the characteristics of compact design, high capacity performance, environmentally friendly, and automatic operation.
composition
The circular bridge scraper stacker and reclaimer is mainly composed of stacker, reclaimer, king column, coal unloading hopper, electrical room, etc
Working principle
The cantilever of the stacker is equipped with a belt conveyor, and the materials feeding on the belt conveyor on the trestle are stacked through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work through three sets of driving linkage processes: traveling, luffing and scrape.
Specification of circular bridge scraper stacker and reclaimer
| description | parameter | unit |
| material | limestone,raw coal | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 500~2000 | t/h |
| reclaiming capacity | 200~1200 | t/h |
| rail span | Φ60~Φ120 | m |
NOTICES
The customer shall provide the following information when placing order
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
