Environment Friendly Bom Type Stacker And Reclaimer For Crcular Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Procuct: | Stacker And Reclaimer | Capacity: | 2400 T/h |
|---|---|---|---|
| Painting: | According To ISO12944 | Color: | Advise By User |
| Advantage: | High Performance | Benefit: | Low Cost |
| Character: | Durable | Material: | Material |
| High Light: | Environment Friendly Stacker And Reclaimer,High Performance Stacker Reclaimer,Bom Type Circular Stacker Reclaimer |
||
Product Description

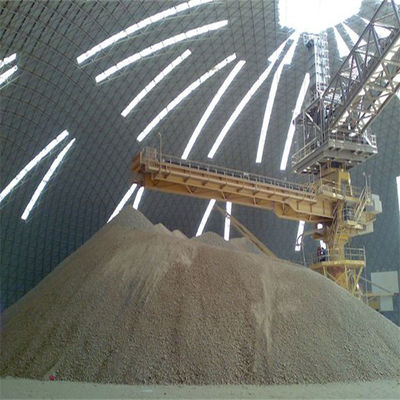

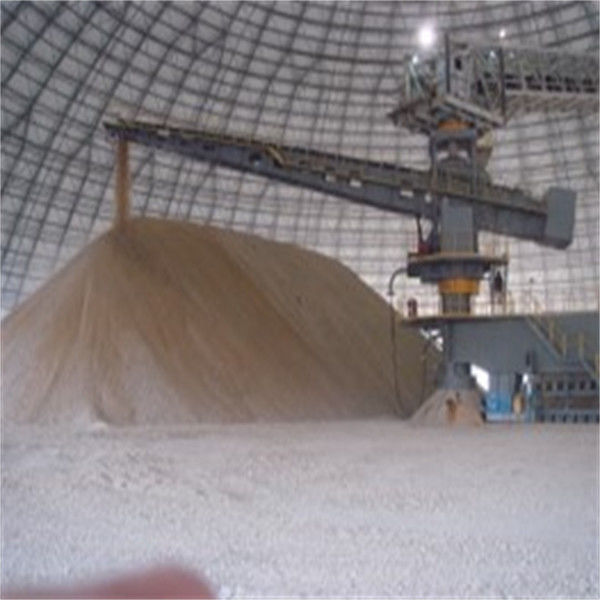

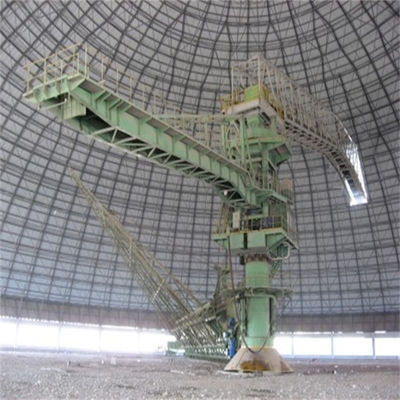

Boom Type Stacker and Reclaimer
Introduction
The boom type scraper stacker and reclaimer are being increasingly used worldwide in enclosed circular stockyard. They are being used in nearly all industries and for almost all kinds of bulk materials. The boom type scraper stakcer and reclaimers have span up to 60 m and capacity up to 5,000 t/h.
applications
Circular bridge type scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port, and other industries, and is mostly used to stack limestone or coal and other bulk materials. It is equipment that continuously stacks and full section reclaiming, It is suitable for indoor or open stockyards where bulk materials need to be blended, stored and transferred. It can complete the blending and stacking and blending and reclaiming of materials at the same time or separately
Working principle
The cantilever of the stacker is equipped with a belt conveyor, and the materials feeding from the belt conveyor on the trestle are stacked through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work through three sets of driving linkage processes: traveling, luffing and scrape.
Specification of circular bridge scraper stacker and reclaimer
| description | parameter | unit |
| material | limestone,raw coal | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 500~2000 | t/h |
| reclaiming capacity | 200~1200 | t/h |
| rail span | Φ60~Φ120 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment including train tipping machine, ship unloader, ship loader, etc. Our conveying equipment including belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment including bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
Photos of our factory
