Jotun Painting Rail Car Unloading System For Handling Transporting Bulk Materials
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Rail Car Unloading System | Color: | Blue |
|---|---|---|---|
| Painting: | Jotun | Model: | Customized |
| Character: | Electric Powered | Advantage: | High Efficient |
| Motor: | Seimens | Price: | Cost Effective |
| High Light: | Bulk Materials rapidly Unloading,Painting Railcar Unloading Equipment,Rail Car Loading And Unloading |
||
Product Description
Rail car unloading system for handling and transporting bulk materials

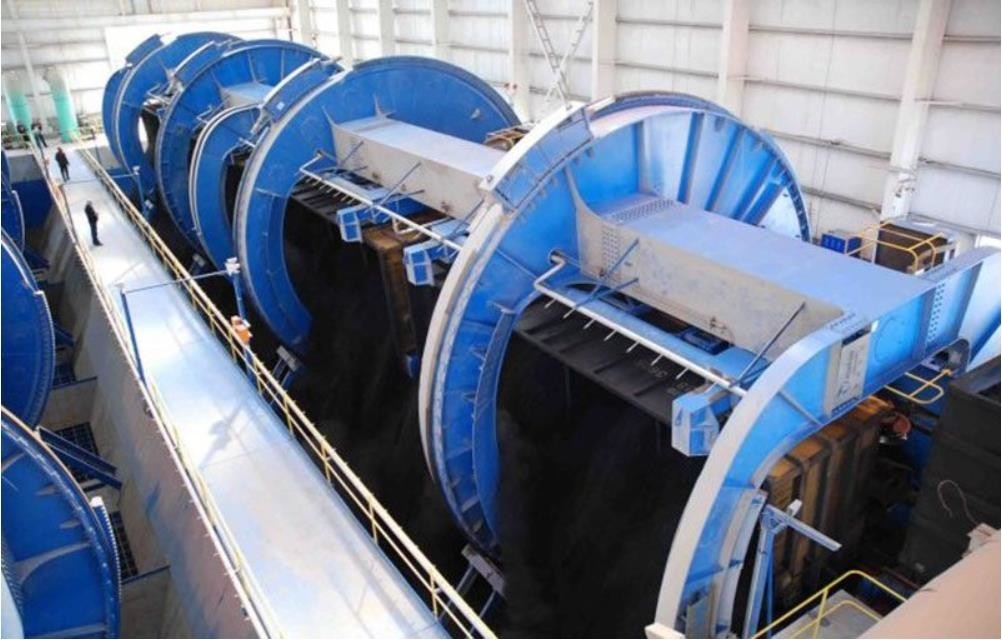

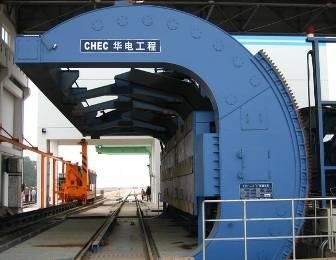

The Train Tipping Machine System is a mechanism used for unloading rail cars. It holds the rail car to a section of track and then rotates the track and car together to dump out the bulk materials. The train tipping machine system is designed as the dumper barrel rotates on the centreline axis of the railcar couplers, car clamps securely hold the railcar in place during rotation. Rotary car dumper is mainly applied for bulk ports and terminals or coal-fired power plants. The material is unloaded into the hopper and is transported via a conveyor located under the hopper. It makes handling a wide variety of materials a rapid, automated process. Two barrel dumper configurations dump 2 railcars simultaneously to increase traditional unloading capacity.
Technical specification
| Selection parameters of train bumper number | ||||||||||||||
| Number of vehicles overturning at the same time type tipping | Type | Tipping capacity applicable | moel | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed starting | Starting and braking time rotation | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
Photos of our factory
