Train Tipping Machine Rotary Rail Car Dumper Wagon Tippler System
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Train Tipping Machine System | Color: | Yellow |
|---|---|---|---|
| Painting: | HEMPEL | Model: | Customized |
| Character: | Hydraulic Powered | Advantage: | Reliable |
| Motor: | ABB | Price: | Cost Effective |
| High Light: | Rotary Rail Car Train Tipping Machine,Rail Car Dumper Wagon Tippler System,hydraulic powered Wagon Tippler System |
||
Product Description

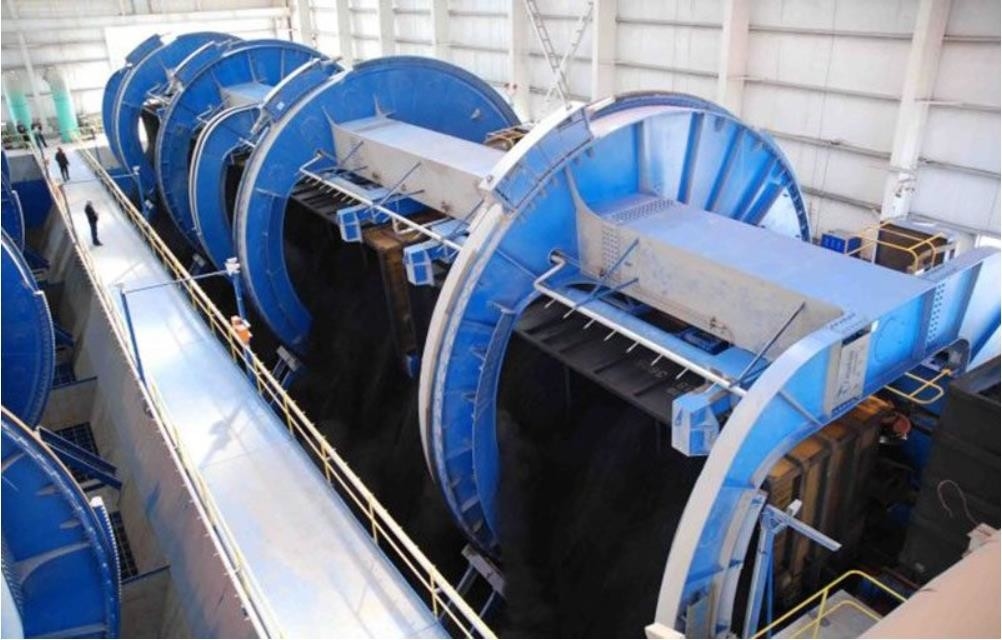

Train Tipping Machine System Rotary Rail Car Dumper Wagon Tippler System
The Train Tipping Machine System is a mechanism used for unloading rail car. It holds the rail car to a section of track and then rotates the track and car together to dump out the bulk materials. The train tipping machine system is designed as the dumper barrel rotates on the centreline axis of the railcar couplers, car clamps securely hold the railcar in place during rotation. Rotary car dumper is mainly application for bulk ports and terminals or coal-fired power plant. The material is unloaded into the hopper and is transported via a conveyor located under the hopper.It makes handling a wide variety of materials a rapid, automated process. Two barrel dumper configurations dump 2 railcars simultaneously to increase traditional unloading capacity.
Technical specification
| Selection parameters of train dumper | ||||||||||||||
| Number of vehicles overturning at the same time | Type | Tipping capacity | Applicable models | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed | Starting and braking time | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
Photos of our factory
