Side Unloading Wagon Trippler For Materials Discharged
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI-hdcz |
| Certification: | manufacture certificate |
| Model Number: | SSI-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Material: | Quality Steel | Color: | Yellow |
|---|---|---|---|
| Painting: | PPG | Product: | Wagon Unloading System |
| Character: | Durable | Steel Structure: | Welding |
| Benefit: | Low Cost | Price: | Cost Effective |
| High Light: | Side Unloading Wagon Trippler,Materials Discharged Railcar Rotary Dumper,Side Wagon Unloading System |
||
Product Description
Side Unloading System Wagon Trippler For Bulk Materials Rapid Discharged

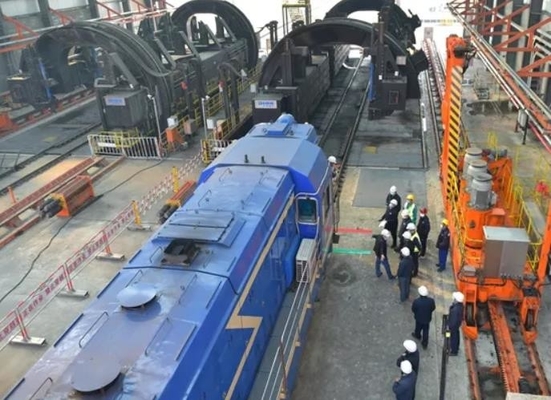

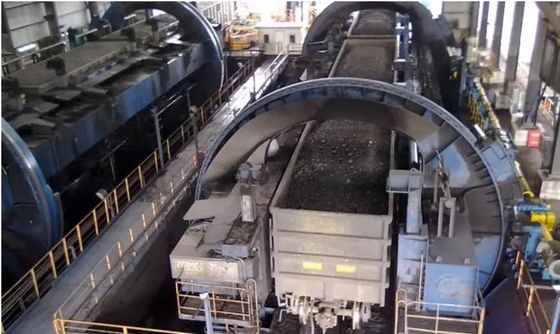

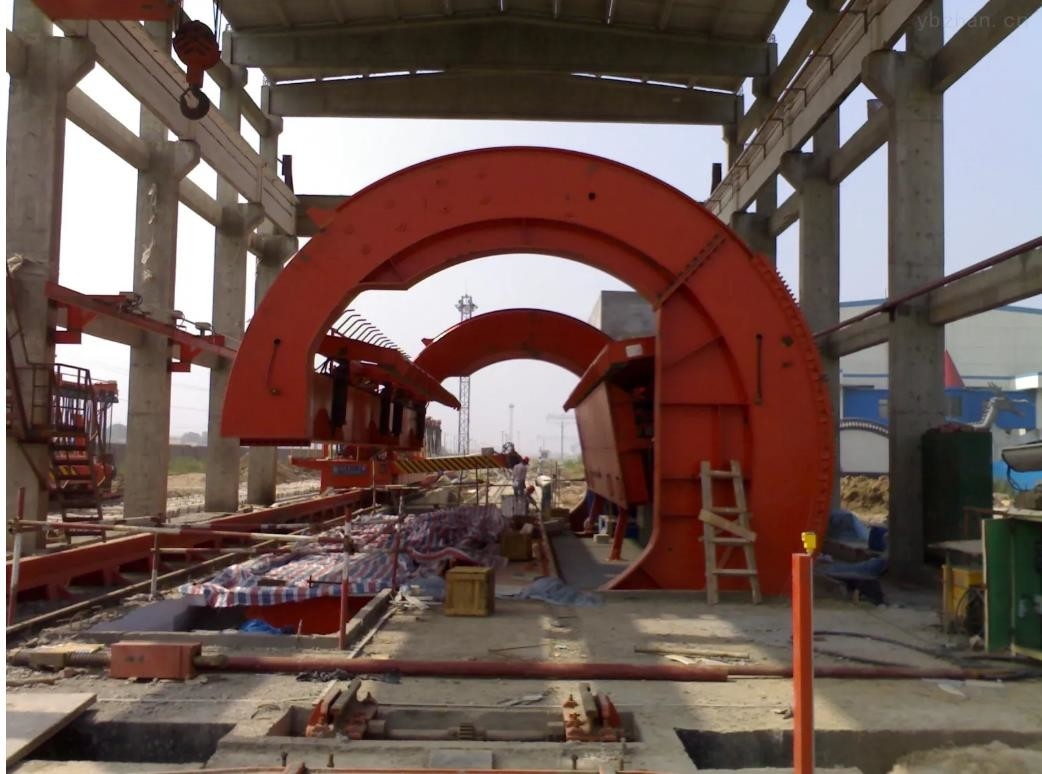

The side unloading wagon trippler refers to a large-sized mechanical equipment used to dump bulk materials of railway gondola. The loading and unloading machinery that can turn or tilt the rail vehicle to unload is suitable for ports with large transportation volume and industrial departments such as metallurgy, coal, thermal power and so on. Mine cars under the mine are also mostly unloaded with small wagon unloading system. The wagon unloading system able to unload 1-4 cars at a time. Early equipment can only unload one rail car, and the largest wagon unloading system able to unload four rail cars at a time.
| Selection parameters of train dumper | ||||||||||||||
| Number of vehicles overturning at the same time | Type | Tipping capacity | Applicable models | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed | Starting and braking time | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
